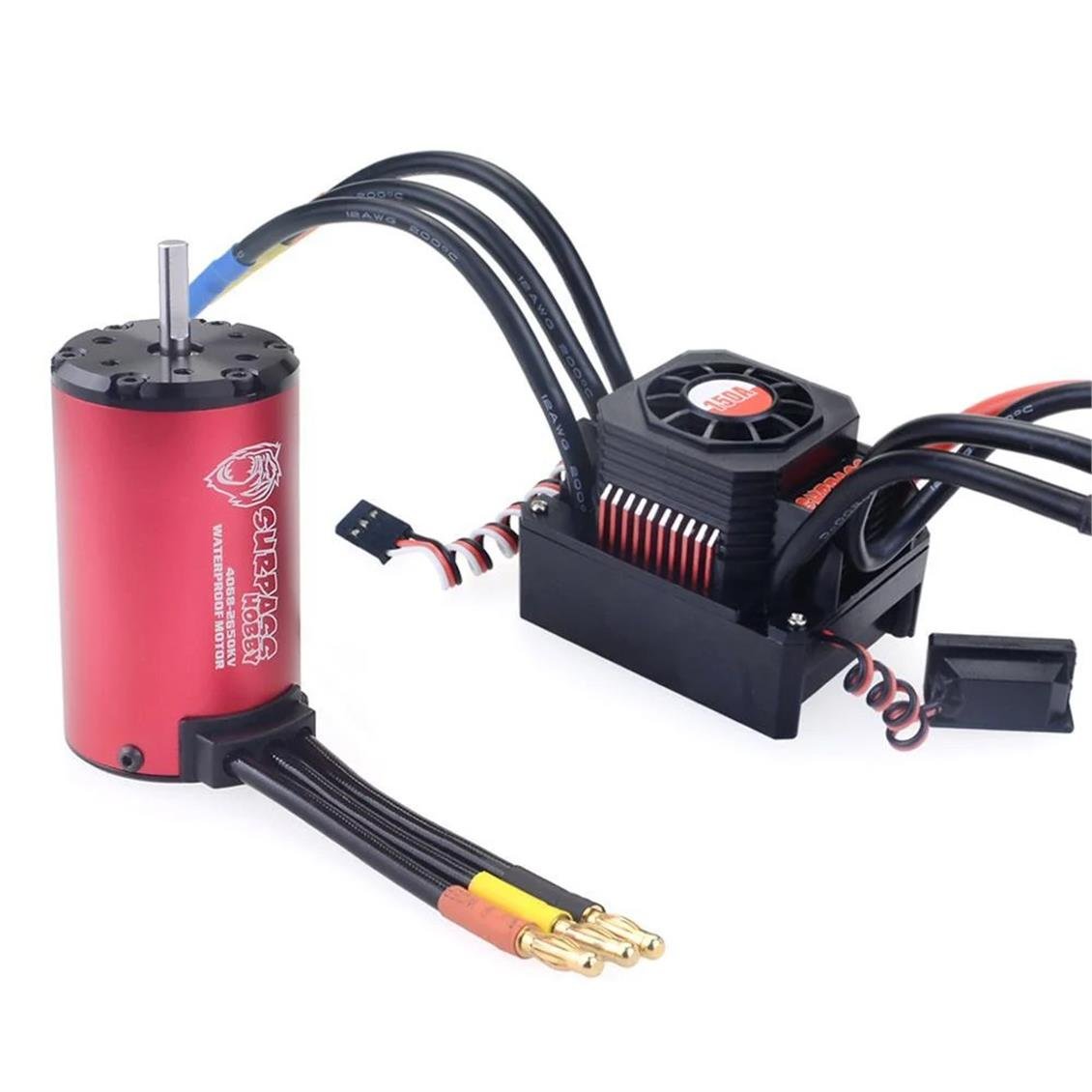

Surpass SP-240680-02 4068 Brushless 1900KV Motor and 150A Speed ​​Controller Waterproof Combo Set (SP2406801900)

Brand:Surpass

Product code: SP2406801900

Type:Speed ​​Control and Motor Set

Material:Metal, plastic

Contents:

Speed ​​control

Engine
Cooler
User manual

Features:4 polar 12 nest high torque engine design

CNC operated aluminum cooler
High -speed large height bearing
Universal Scale Fits 1/8 brushless motor systems
Maximum speed sensitive balanced rotor
Removable and replaceable motor
Sensitive engineering for maximum energy transformation

Speed ​​control features
Model: 120a
Continuous current: 120a
Explosion Current: 600a
Engine Type: Sensorless brushless engine 4S lipo and 12cells niram battery
For asphalt type vehicles: 40xx Small Motor KV <3000
For land type vehicles: 40xx small motor KV <2500
Engine type: Sensorless brushless engine 6S lipo and 18cells niram battery
For asphalt type vehicles: 40xx Small Motor KV <2500
For land type vehicles: 40xx Small Motor KV <2000
Resistance: 0.00035ohm
Battery: 3 ~ 6 Cells Lipo/9 ~ 18 Cells NiM
Bec Output: 6.1V/3A
Size and weight: 160x100x62 mm. /136g.

Model: 150a

Continuous current: 150a

Explosion Current: 720a

Engine Type: Sensorless brushless engine 4S lipo and 12cells niram battery

For asphalt type vehicles: 42xx Small Motor KV <3000

For land type vehicles: 42xx Small Motor KV <2500

Engine type: Sensorless brushless engine 6S lipo and 18cells niram battery

For asphalt type vehicles: 42xx Small Motor KV <2500

For land type vehicles: 42xx Small Motor KV <2000

Resistance: 0.00030ohm

Battery: 2 ~ 3 Cells Lipo/4 ~ 9 Cells NiM

Bec Output: 6.1 and 7.4V/3A

Size and weight: 160x100x62 mm /148g
