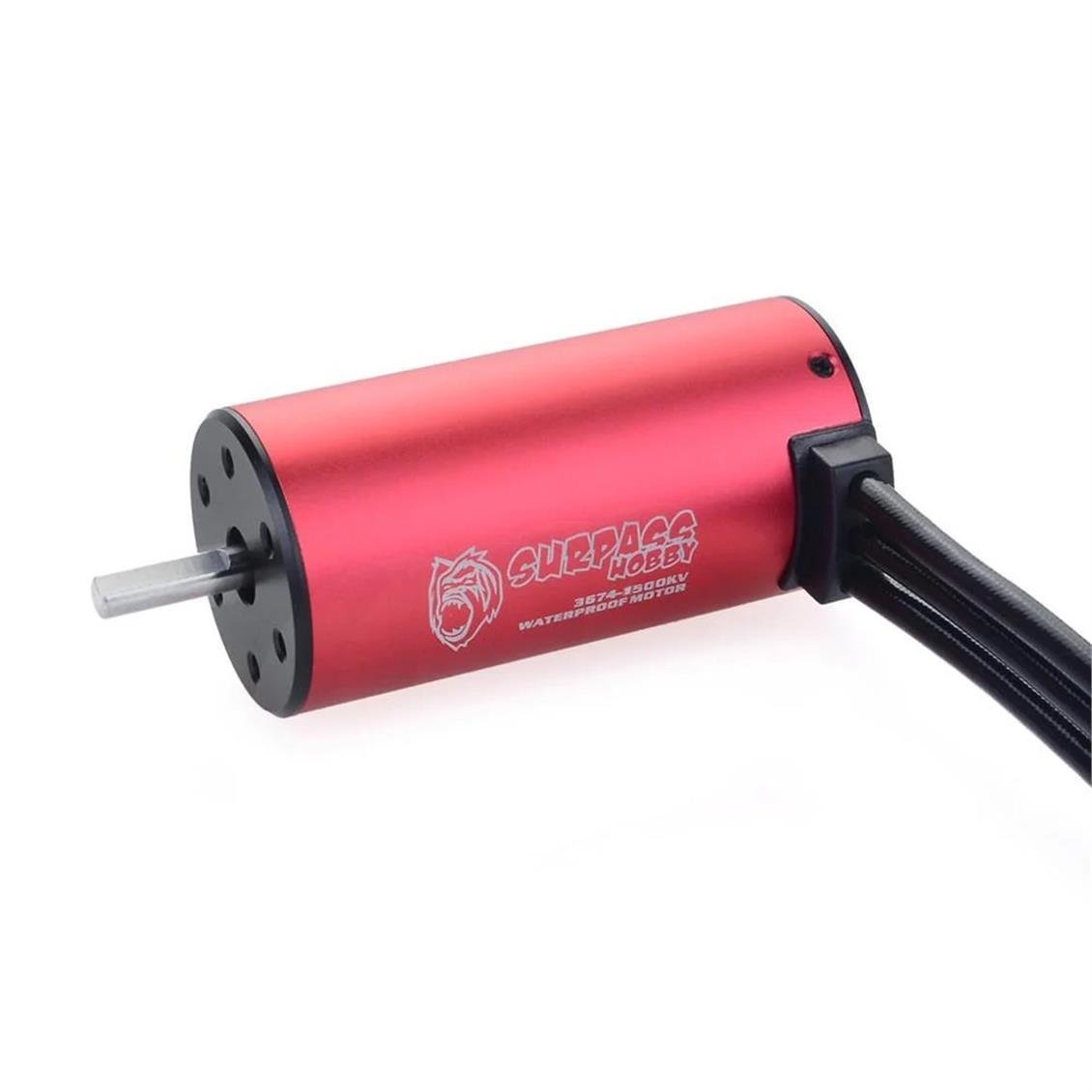

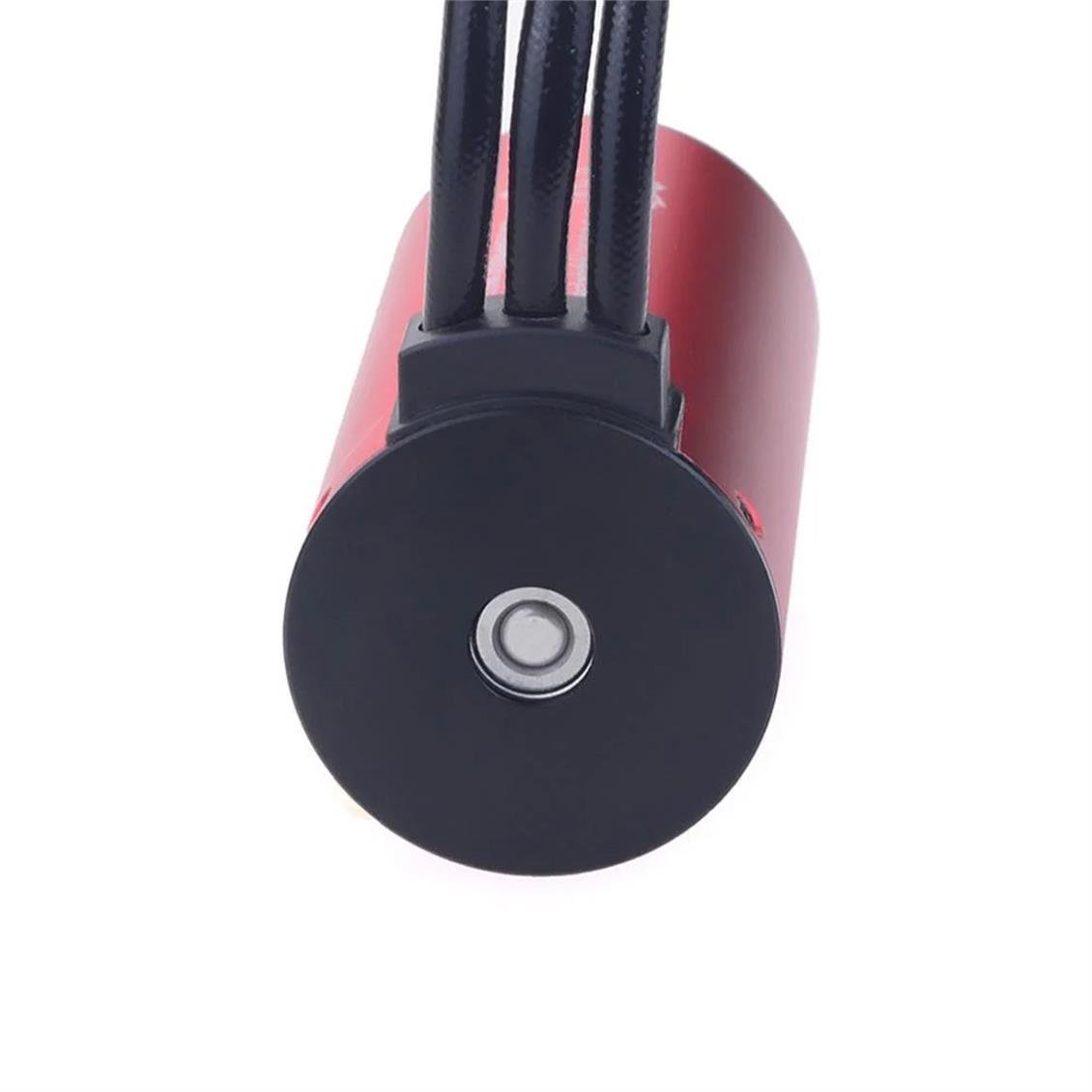

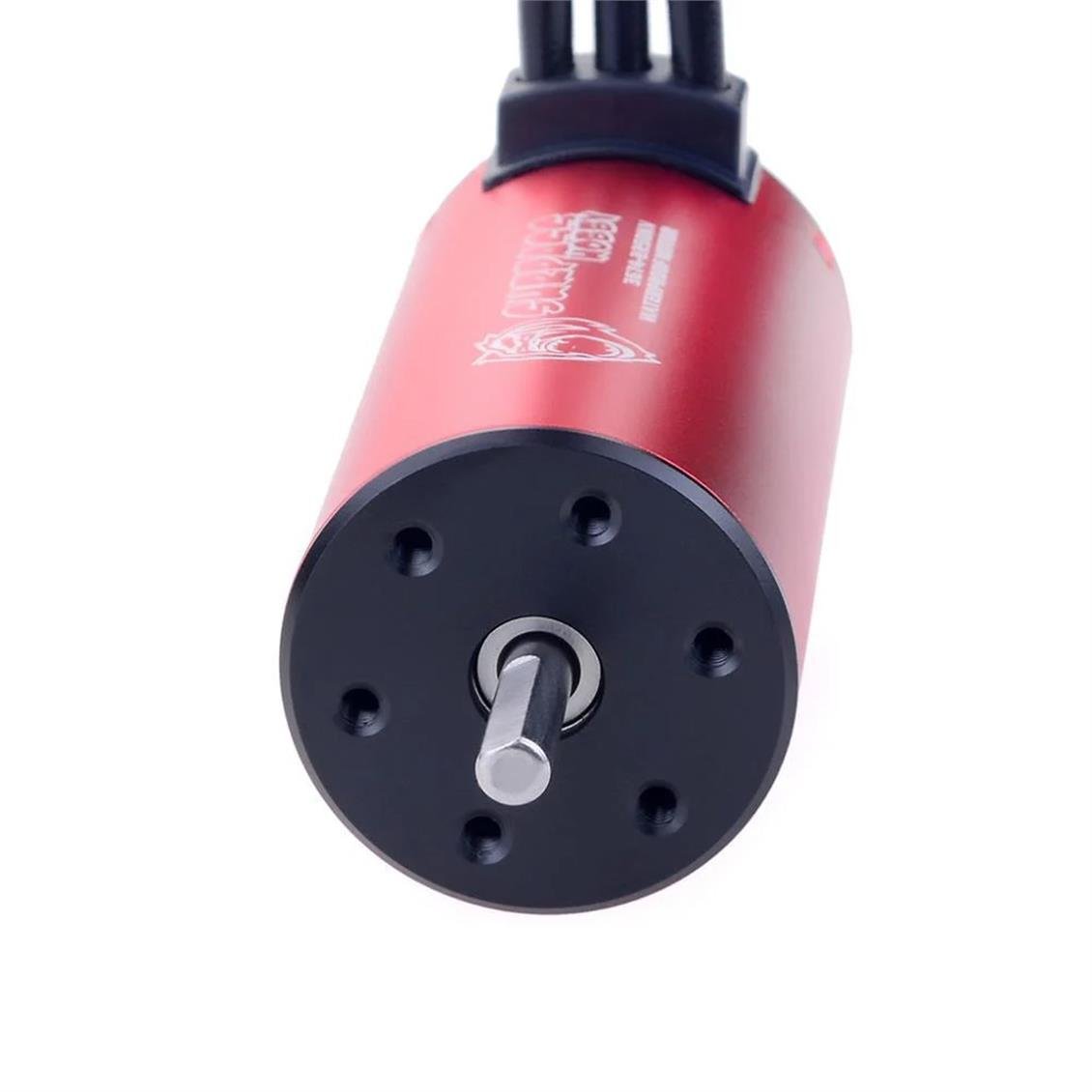

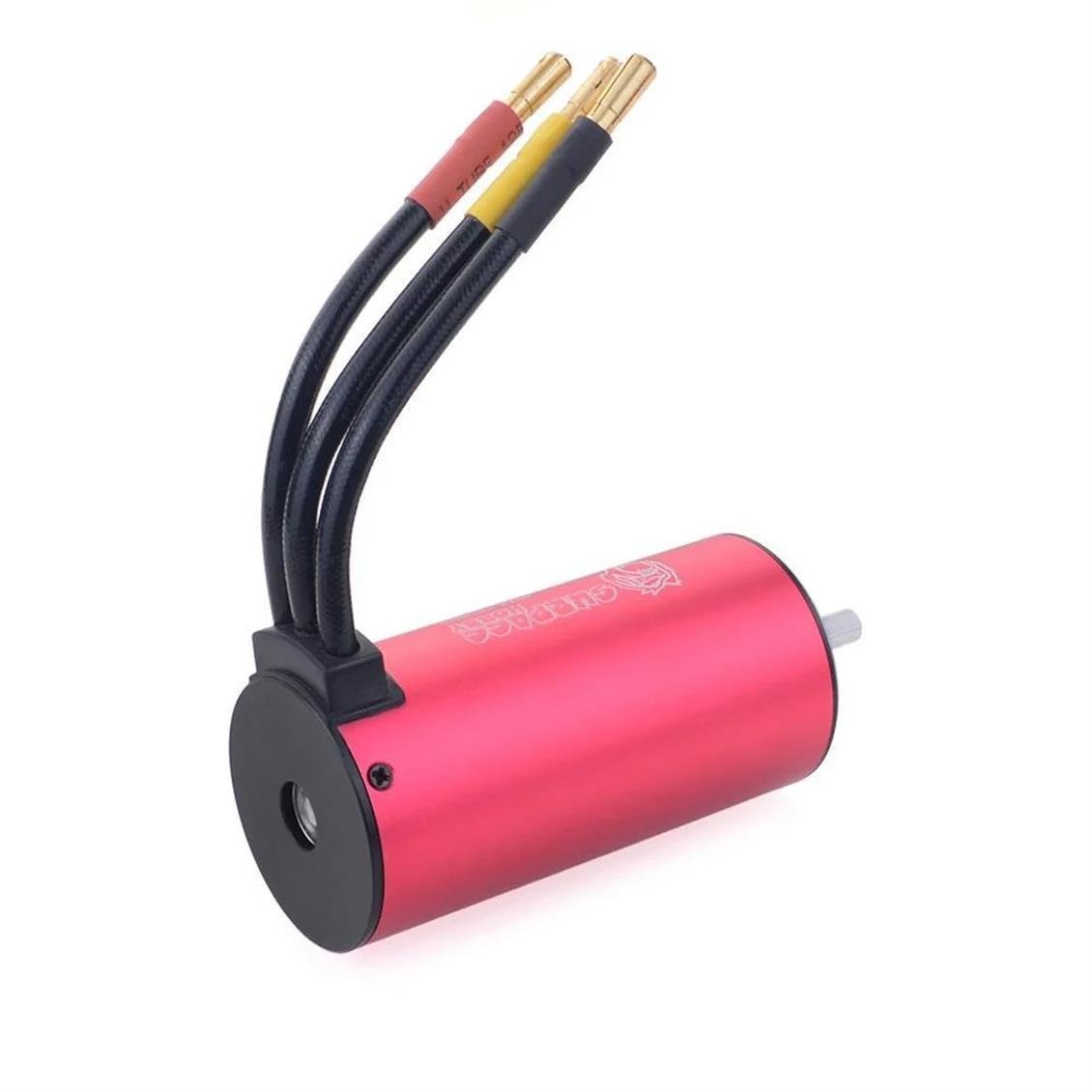

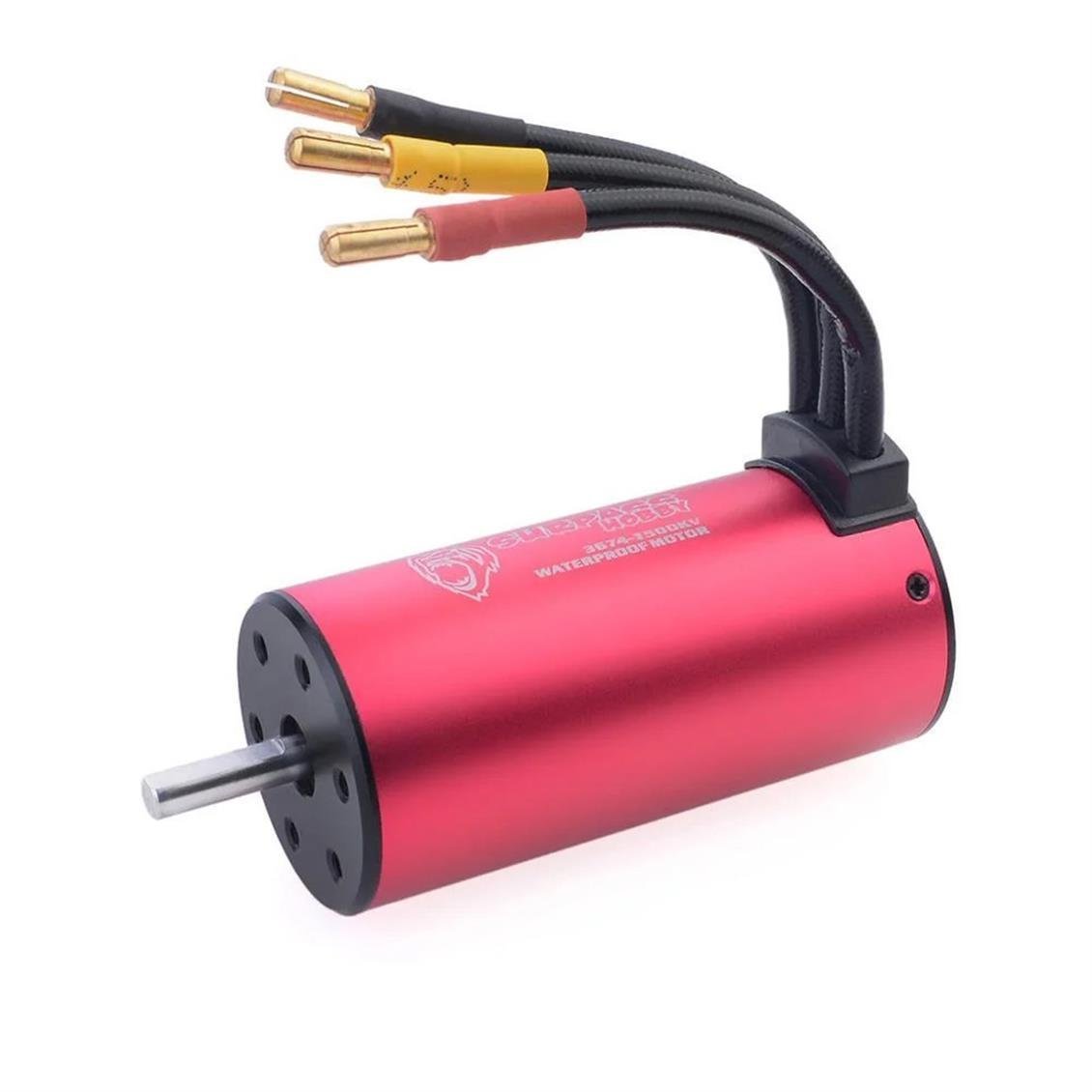

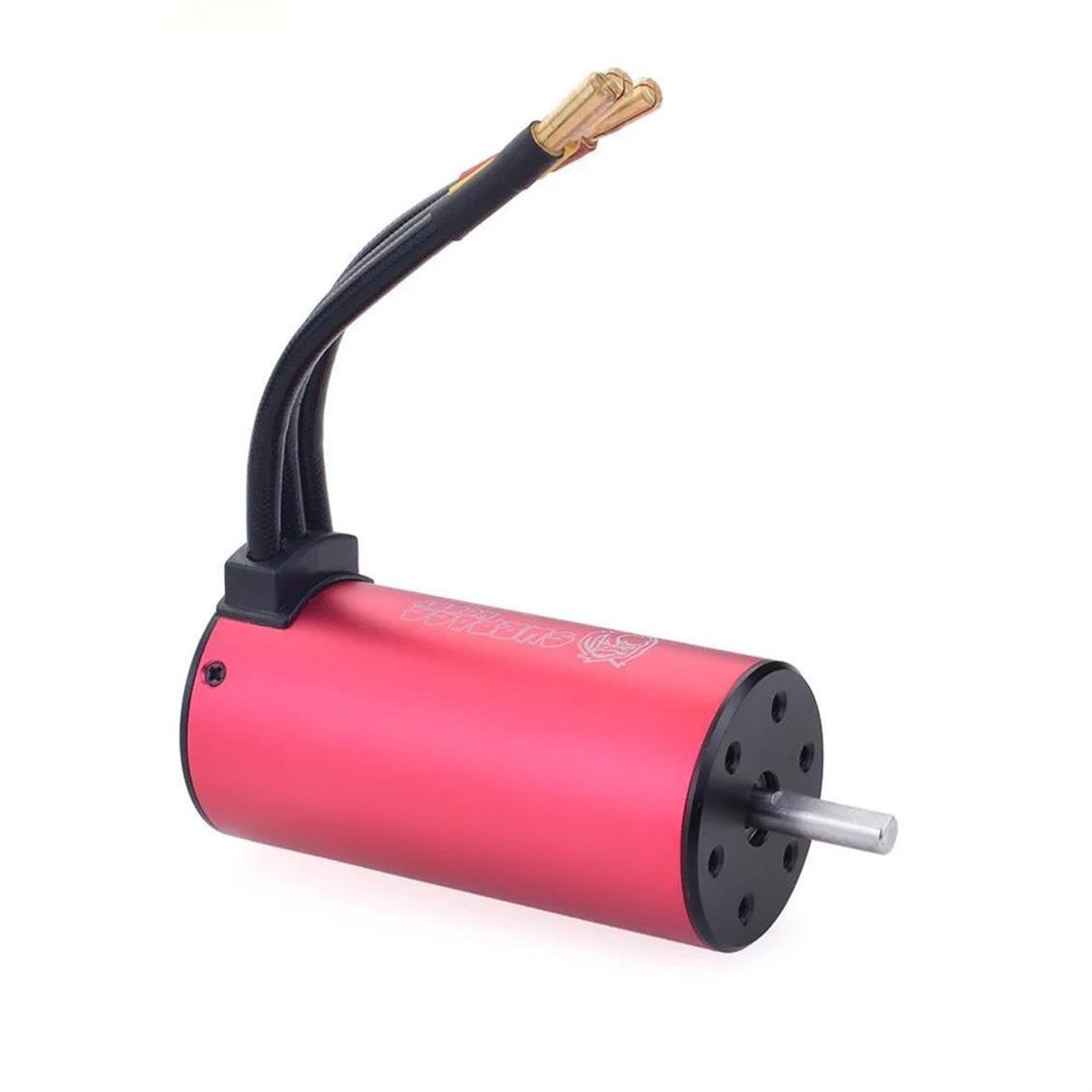

Ordinary: Surpass SP-236740-01 3674 Brushless 2250KV engine, engine cooler and 120A speed control waterproof Komo Set
Brand:Surpass
Product code: SP2367402250
Type:Speed Control and Motor Set
Material:Metal, plastic
Contents:
Speed control
User manual
Engine
Cooler
Features:
4 polar 12 nest high torque engine design
CNC operated aluminum cooler
High -speed large height bearing
Universal Scale Fits 1/8 1/10 brush -free motor systems
Maximum speed sensitive balanced rotor
Speed control features
Model: 120a
Continuous current: 120a
Explosion Current: 600a
Engine Type: Sensorless brushless engine 4S lipo and 12cells niram battery
For asphalt type vehicles: 40xx Small Motor KV <3000
For land type vehicles: 40xx small motor KV <2500
Engine type: Sensorless brushless engine 6S lipo and 18cells niram battery
For asphalt type vehicles: 40xx Small Motor KV <2500
For land type vehicles: 40xx Small Motor KV <2000
Resistance: 0.00035ohm
Battery: 3 ~ 6 Cells Lipo/9 ~ 18 Cells NiM
Bec Output: 6.1V/3A
Size and weight: 160x100x62 mm. /136g.
Model: 150a
Continuous current: 150a
Explosion Current: 720a
Engine Type: Sensorless brushless engine 4S lipo and 12cells niram battery
For asphalt type vehicles: 42xx Small Motor KV <3000
For land type vehicles: 42xx Small Motor KV <2500
Engine type: Sensorless brushless engine 6S lipo and 18cells niram battery
For asphalt type vehicles: 42xx Small Motor KV <2500
For land type vehicles: 42xx Small Motor KV <2000
Resistance: 0.00030ohm
Battery: 2 ~ 3 Cells Lipo/4 ~ 9 Cells NiM
Bec Output: 6.1 and 7.4V/3A
Size and weight: 160x100x62 mm /148g
