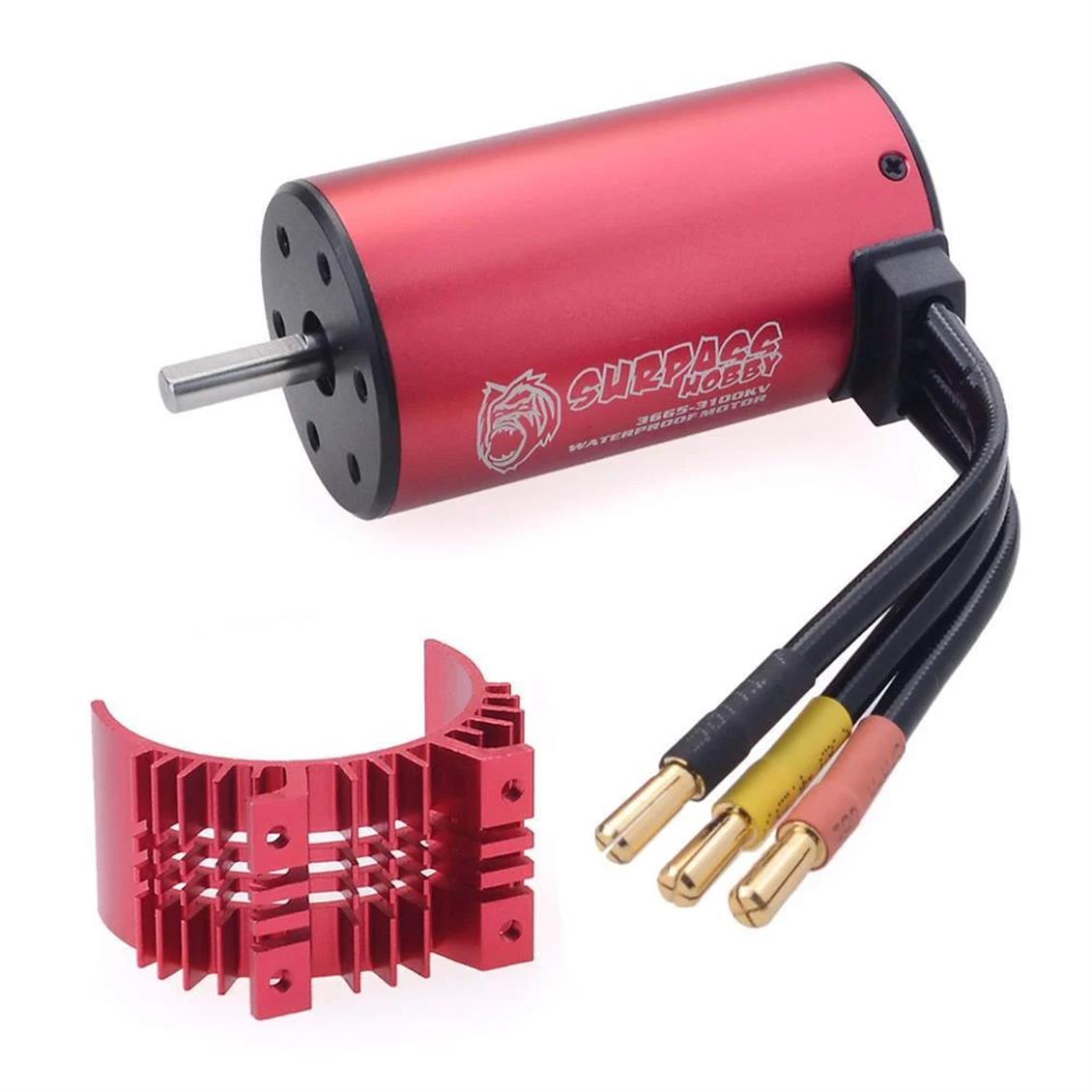

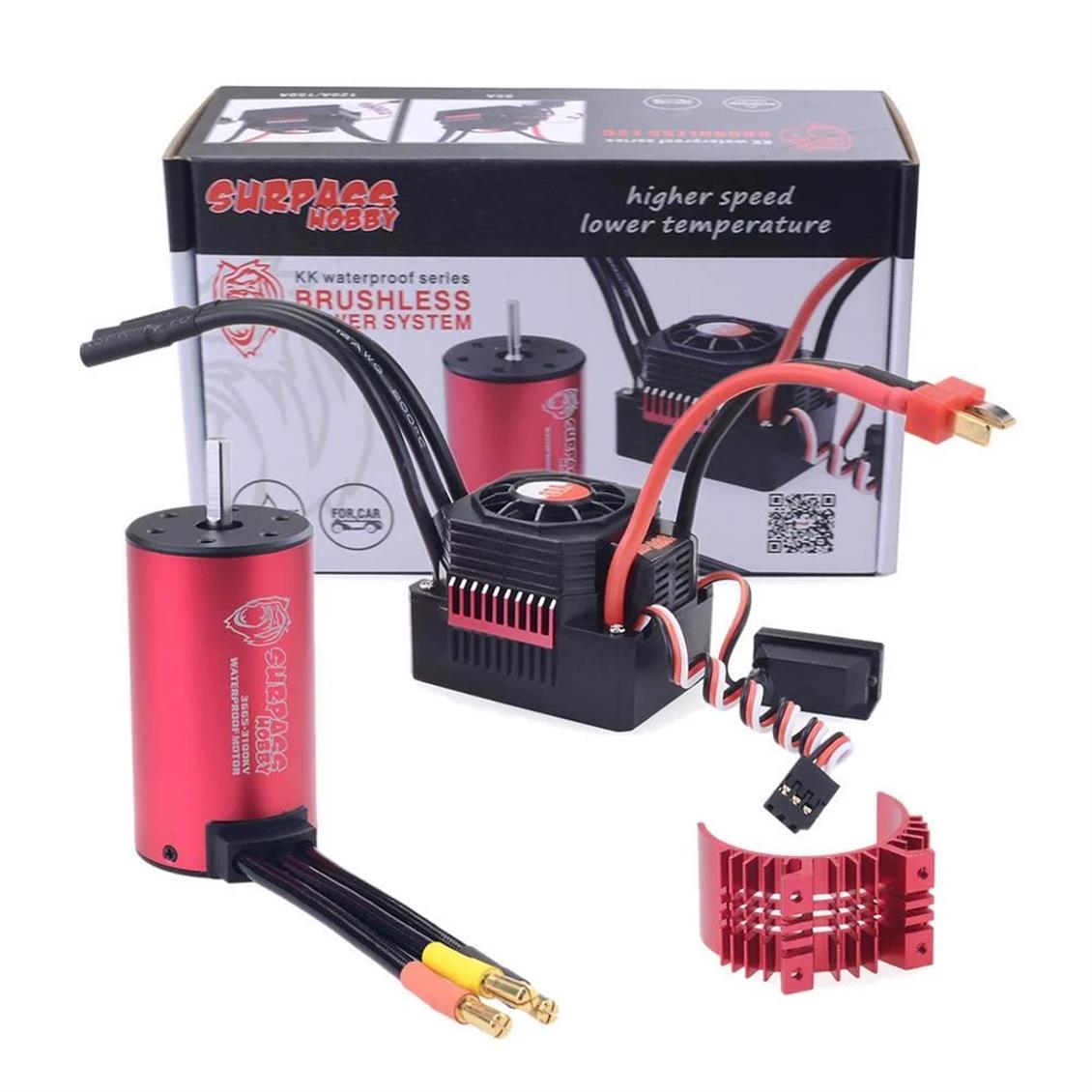

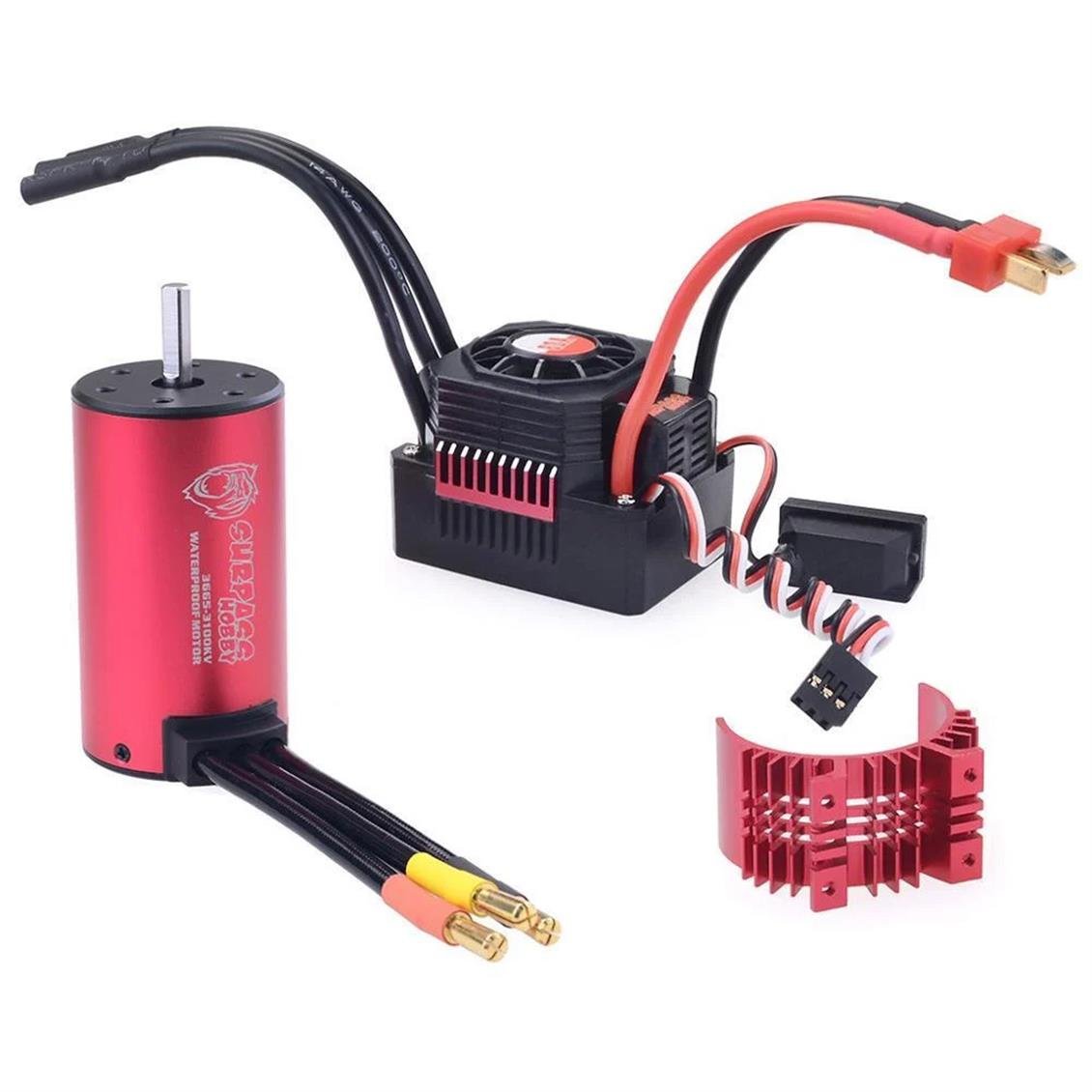

Surpass SP-236650-02 3665 Brushless 3100KV Motor, Motor Cooler and 80A Speed ​​Controller Waterproof Combo Set (SP2366503100)

Brand:Surpass

Product code: SP23665002

Type:Speed ​​Control and Motor Set

Material:Metal, plastic

Contents:

Speed ​​control

Engine
Cooler
User manual

Features:
4 polar 12 nest high torque engine design

CNC operated aluminum cooler
High -speed large height bearing
Universal Scale Fits 1/8 1/10 brush -free motor systems
Maximum speed sensitive balanced rotor
Removable and replaceable motor
Sensitive engineering for maximum energy transformation

Speed ​​control features
Model: 45a
Continuous current: 45a
Explosion Current: 240a
Engine type: Sensor brushless engine 2s lipo and 6cells niram battery
For asphalt type vehicles: 3656 small engine KV <5600
For land type vehicles: 3660 small engine kV <3800
Engine Type: Sensorless Brushless Engine 3S LiPo and 9cells NiLM Battery
For asphalt type vehicles: 3660 small engine KV <3800
For land type vehicles: 3660 small engine KV <2600
Resistance: 0.00014ohm
Battery: 2 ~ 3 Cells Lipo/4 ~ 9 Cells NiM
Bec Output: 5.8V/3A
Size and weight: 51,5x38,5x38.5 mm. /76g.

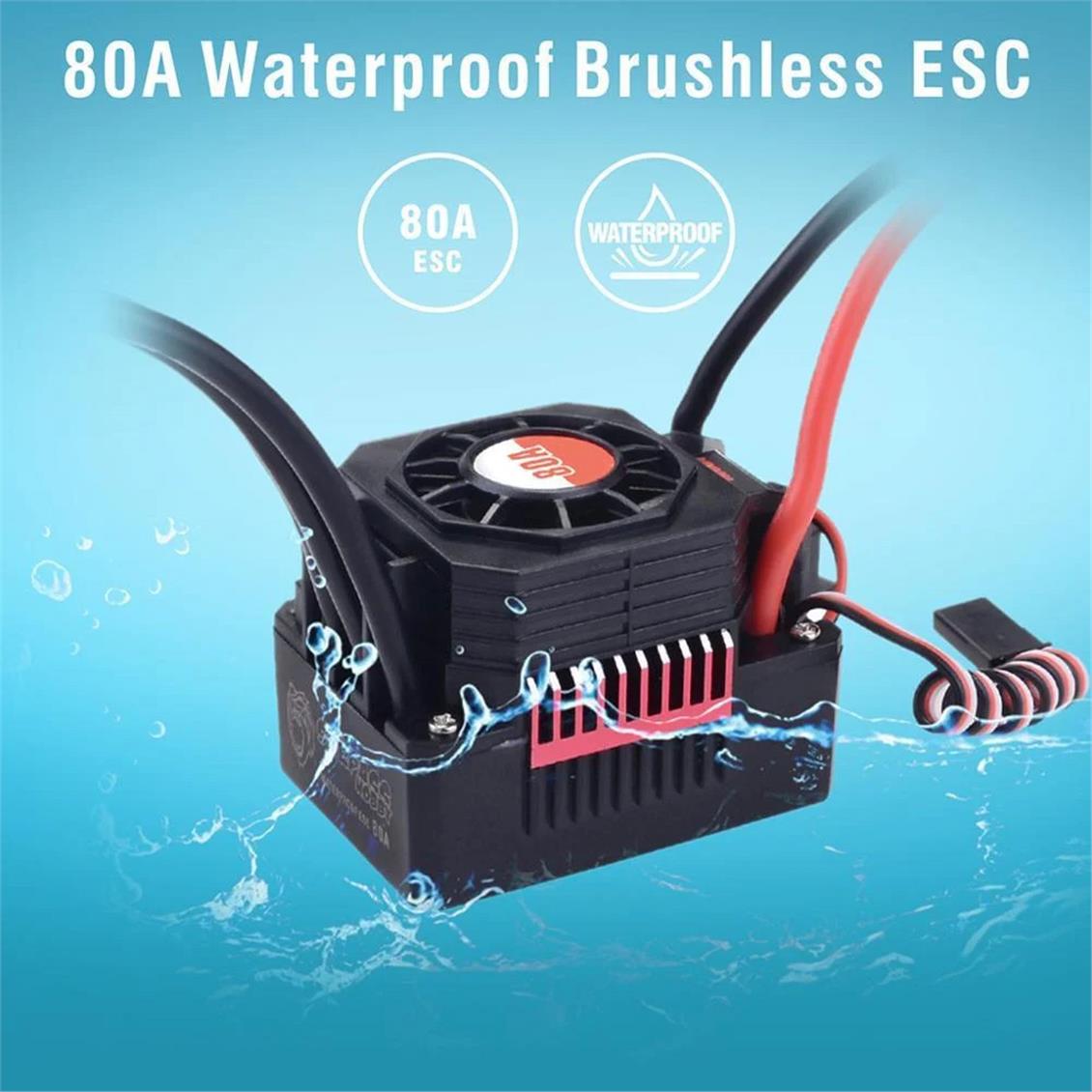

Model: 80a
Continuous current: 80a
Explosion current: 480a
Engine type: Sensor brushless engine 2s lipo and 6cells niram battery
For asphalt type vehicles: 3670 small engine KV <3000
For land type vehicles: 3670 small engine KV <3000
Engine Type: Sensorless Brushless Engine 3S LiPo and 9cells NiLM Battery
For asphalt type vehicles: 3670 small engine KV <3000
For land type vehicles: 3670 small engine KV <2500
Resistance: 0.0005ohm
Battery: 2 ~ 3 Cells Lipo/4 ~ 9 Cells NiM
Bec Output: 5.8V/3A
Size and weight: 51,5x38,5x38,5 /76g
