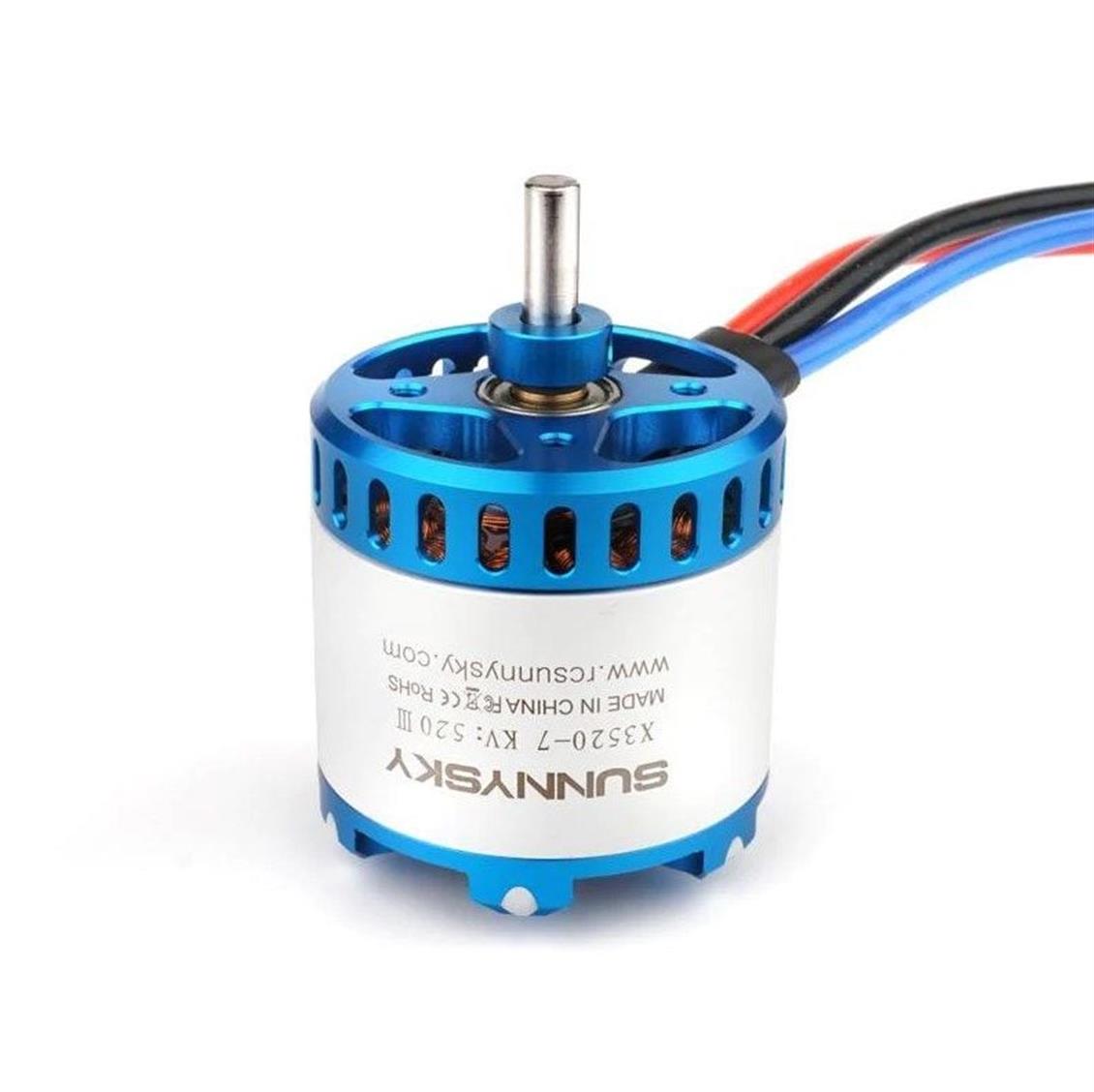

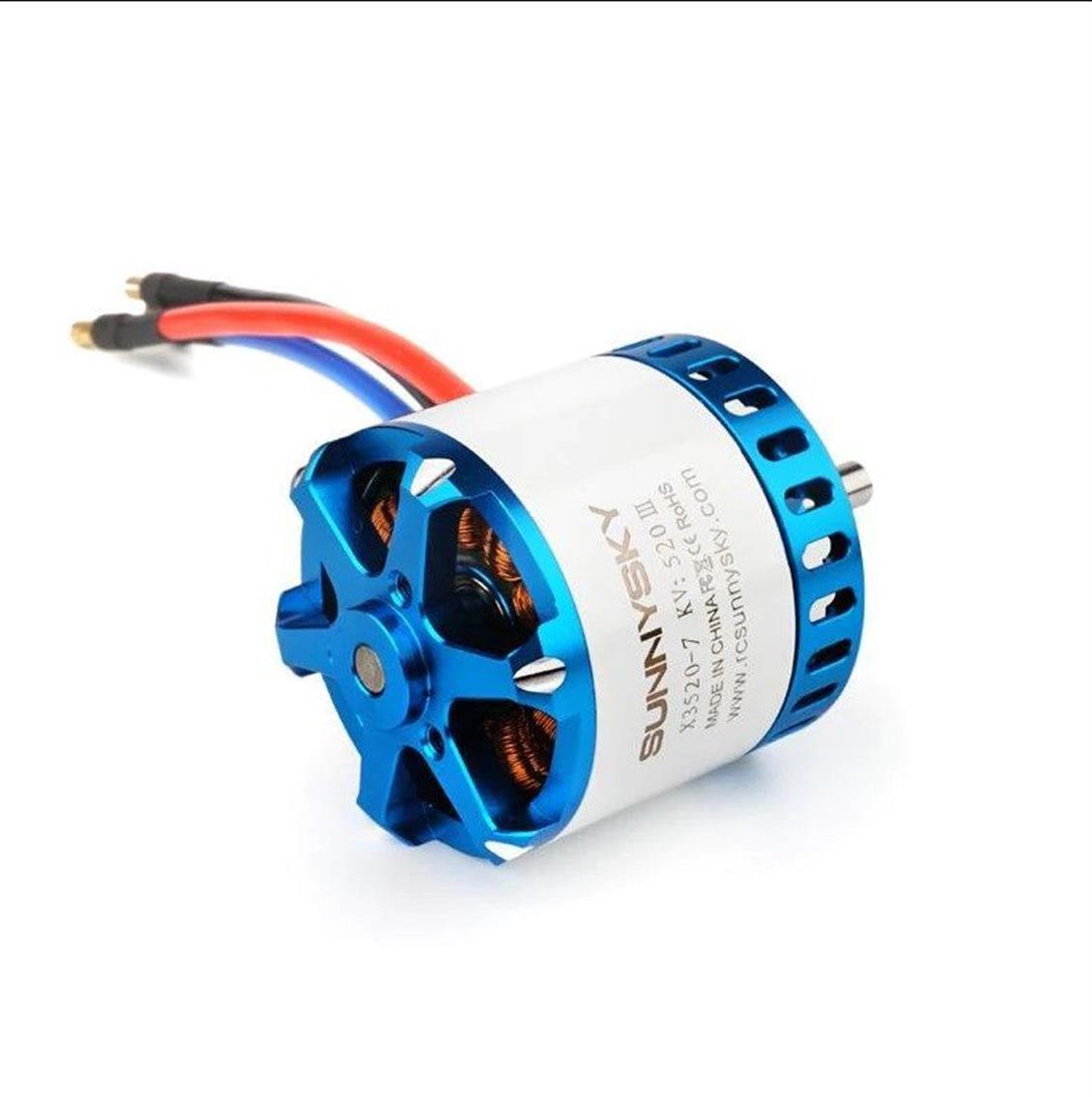

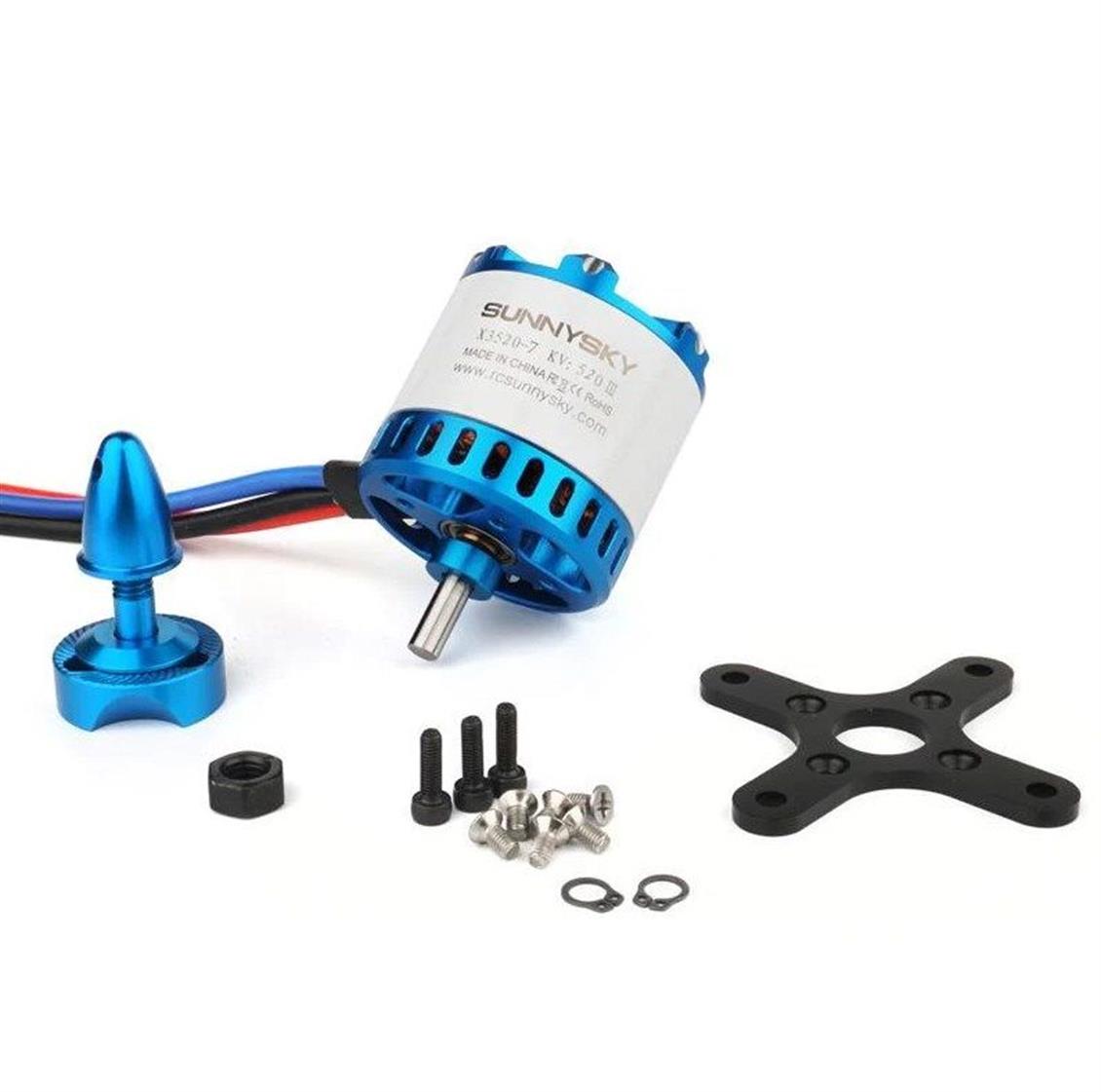

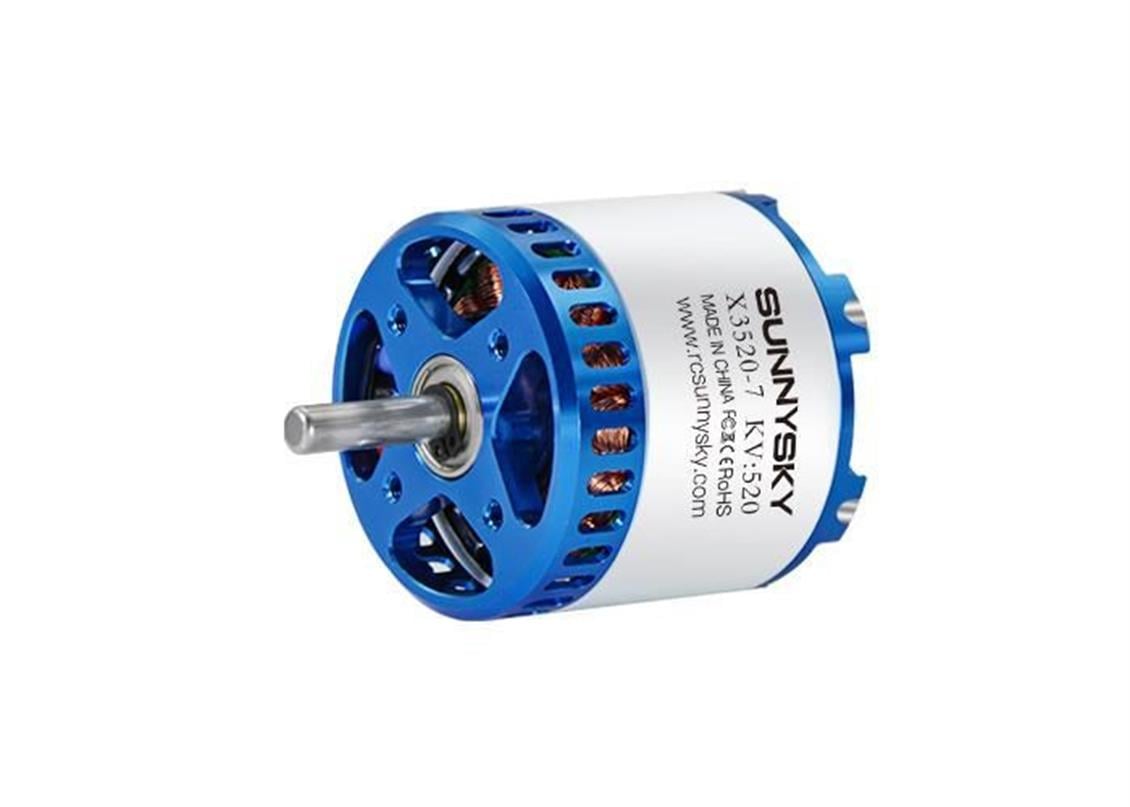

Sunnysky X Series V3 X3520 V3-560 Kv Brushless Motors (QE126)

Sunnysky X Series v3 X3520 V3-560 KV Brushless Motors

Brand:Sunnysky USA
Stock Code:QE126
Type:Aircraft and drone engine

X3520 Contents

• 1 Sunnysky X Brushless Aircraft and Drone Engine

X3520 Aircraft and Drone Motor Features

• Stator Diameter 35mm
• Stator Thickness 20mm
• No.Oof Stator Slots 12
• NO.OF ROTOR POLES 14
• Motor KV 560
• NO-LOAD CURRENT 1.1A/10V
• Motor Resistance 23mΩ
• Max Continual Current 80a/30s
• Max Continuous Power 2000W
• Rotor diameter 42.5mm
• Body Length 45mm
• Max Lipo Cell 6s
• ESC 60-80a
• Recommended Prop
• Weight for Aerobatics AirPlane 2500G (6S APC13*6.5 \ APC13*8)
• Weight for 3D AirPlane 2200G (6S APC13*6.5 \ APC13*8)

You can find the ingredients you need to finish this product at the bottom of the page

Strong and robust rotur cover. More ethous strong look. High quality, blue closed white metallic paint. Stator provides good cooling. Solid dynamild balancing for each engine. The original NSK bed provides lower noise and smooth operation. High copper area factor thanks to the newly optimized magnetic circuit.
