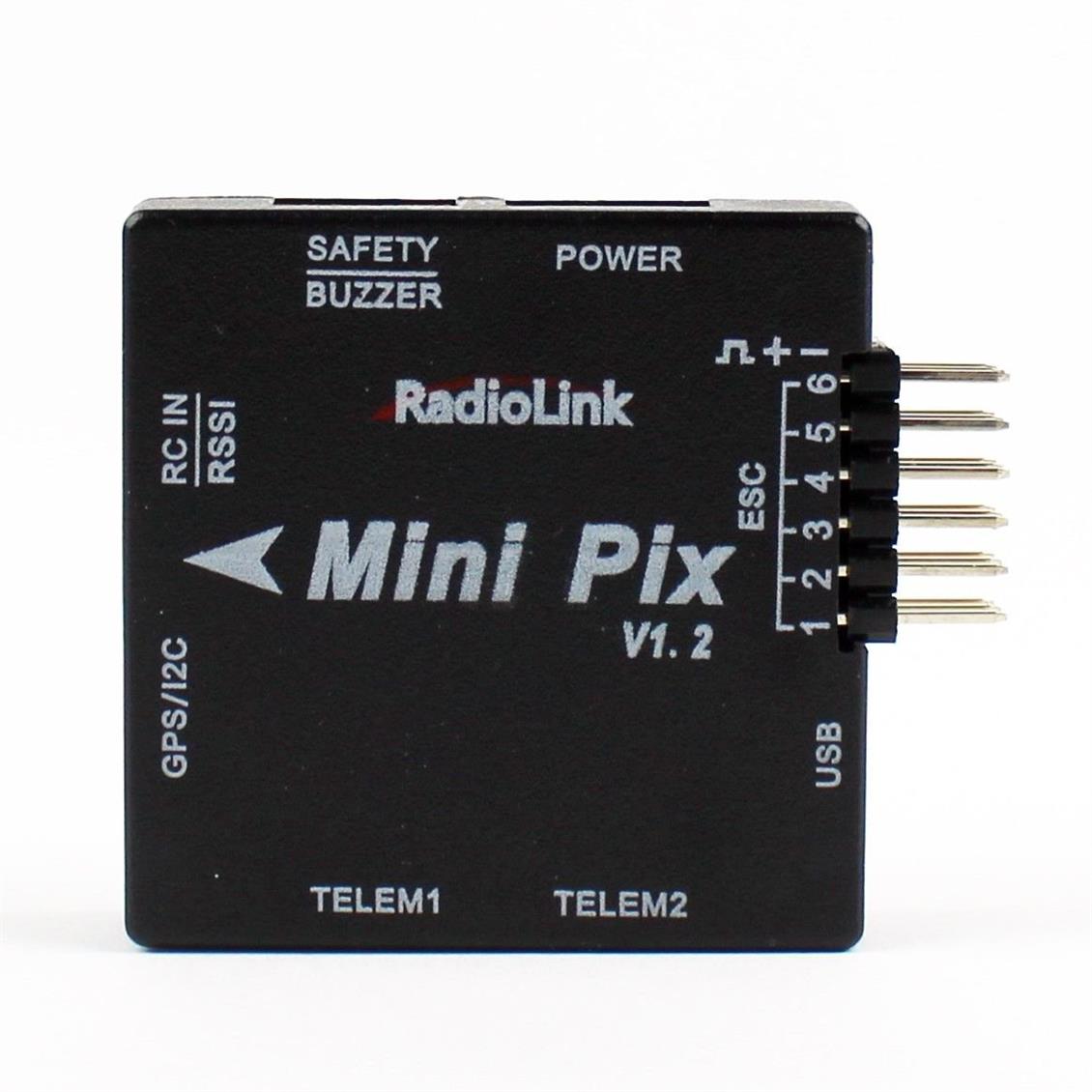

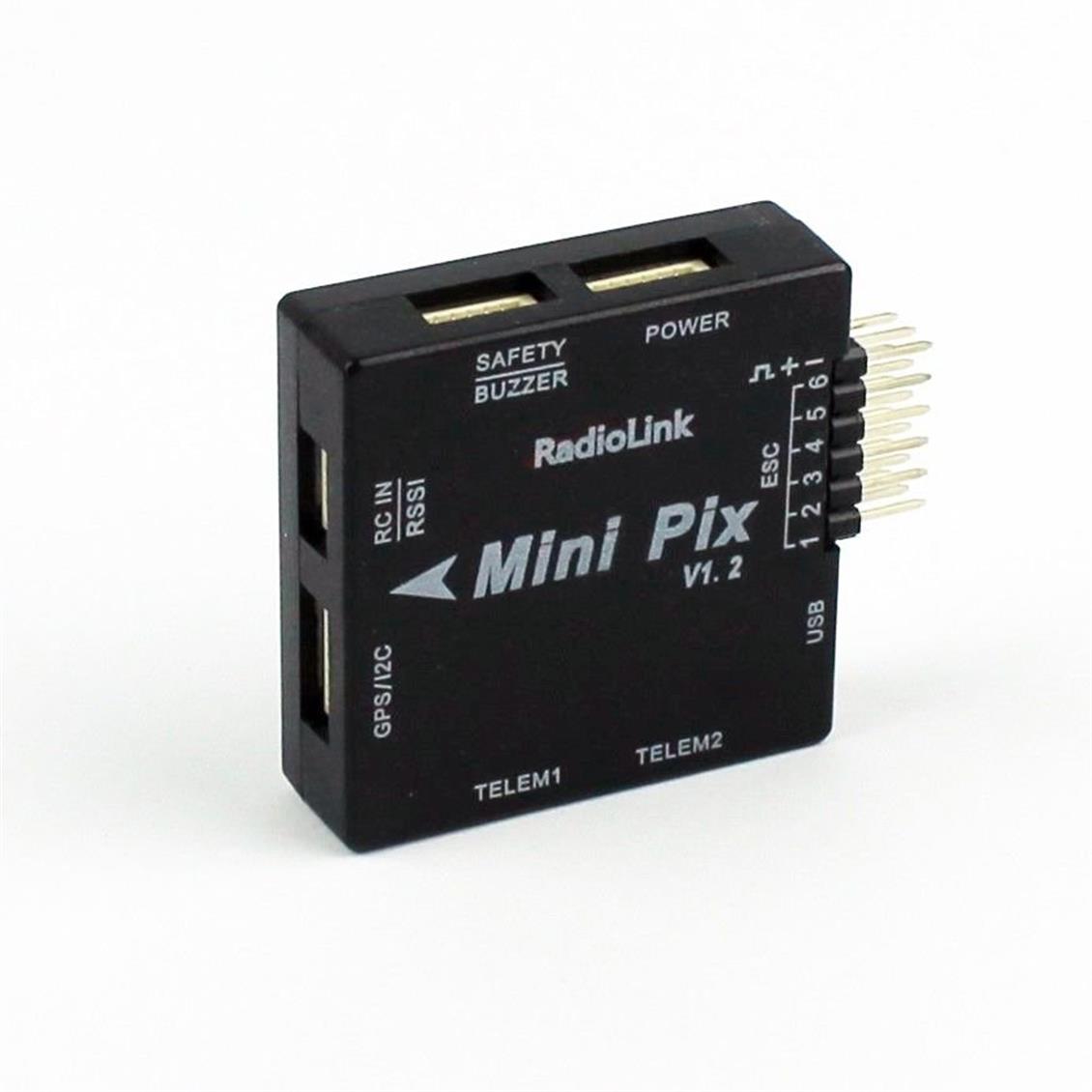

Radiolink MINI PIXHAWK F/C Flight Control Card
Brand:Radiolink
Stock Code:Rlmnph
Type:Control card

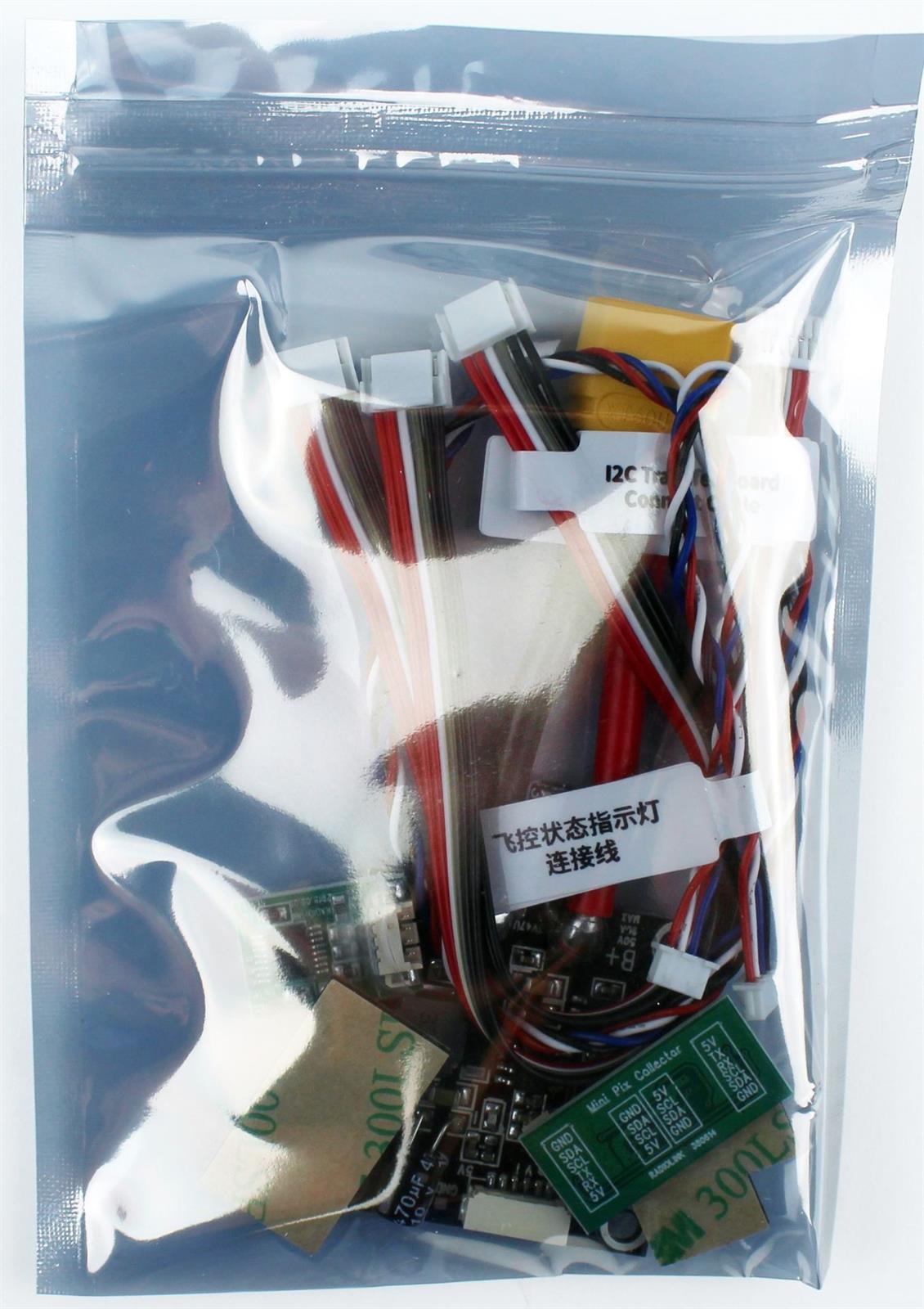

Flight Control Card Content
- -Mini Pix Flight Controller X1
- -We Buzzer Switch Button X1
- -I2C speech board x1
- -FC shows LED X1
- -The power module x1
- -They -sided adhesive band x2
- -The release connection cable x 1
- -I2C connection cable x1
- -The power module connection cable x1
- -Acı & RSSI connection cable x 1
- -Osd connection cable x 1
- -FC LED connection cable x1
- -Usb cable x1
- -Basit user manual x1
Flight Control Card Features
- Binding Port: JST GH connector
- Buyer: ppm/sbus
- Transmitter: 6 Oneshot/pwm
- USB Voltage: 5V +-0.3V
- Working voltage: 5.1v
- Working temperature stole: -40 ~ 80 °
- Support Models: fixed wing/multiple rotors/helicopter/drone/car/boat
- Mini Pix Size: 3.9*3.9*1.4cm/1.54*1.54*0.47
- Weight: 15/0.034lb
You can find the ingredients you need to finish this product at the bottom of the page
Hobbytime Review
The new Radiolink independently develops the mini pix and uses closed protection for the barometer to retain, to reduce air flow initiative during movement and reduce vibration. At the same time, the software algorithm optimizes air pressure to maintain its full function that is easy to install.
Notes:
Please ask for support immediately when you need full user instructions.
Flash firmware: Please download Radiolink's task planner. (On radiolink website)
Parameter setting: The same adjustment methods as the official Pixhawk.
How to update Ardupilot for Radiolink Mini Pix?
Mini PIX Features:
【Digital Filter Algorithm】 -In-Radiolink Mini Pix Flight Controller with Digital Filter Algorithm for Remnicuity Vibration, even if your physical vibration is not a damping, your Drone still has a good performance. Please Attention: We are not authorized to the VVBuy store.
【The new order from the mini-Pixhawk, only 1.54 * 1.54 * 0.57, integrates the full functions of Pixhawk with the same mini size as the F4 FC. Mini racing is suitable for drone, fixed wing, helicopter, multirotor and RC boat car.
【Stabilization】-Design a shell to reduce air flow during the drill, air pressure ventilation to ensure the accuracy of the barometer measurement, an internal barometer sensor for height-retention stabilization.
【Top firmware vision】 -1. With the 405VGT6 processor and LPS22HB barometer, connect the task planner to adjust the Pid to reach your perfect settings.
【Easier setting】-You can enjoy a good fly experience to make a good and professor Player, Android USB port to make a clear and simple parameter calibration settings.
MINI PIX Description:
Keep Pixhawk completely functional
Integly to integrate Pix's complete functionality into the Mini Pix, does not make professional flying hands strangers.
High performance configuration
The main processor uses ST Company STM32F405VGT6 with the same information process as PIX.
The barometer uses the LPS22HB of the ST company.
The gyroscope uses MPU6500 of inventories.
It uses QMC5883L with geomanyetic Honeywell HMC5983 statistics.
The new mini PIX maintains the full functionality of Pixhawk, a high-profile, APM-Class Flight Controller experience
DIY BASIC Flight Controller
Easy equipped with DIY and drone. Switch manually between the fixed point-balancing-eller, allow the novices to pass through the collision, and perform the advanced journey of the inexperience to professional players.
Software reduces vibration
It has been optimized with software algorithms for better shock absorption and softer flight. Helicopters can easily fly without the need for shock assembly. Air pressure poshold
The outer coating is sealed to reduce air flow initiative during the barometer movement and is determined by the air pressure software algorithm optimization.
Mini size
As F4, the mini PIX, which is only 3.9*3.9*1.4cm, weighs only an amazing 15G, even if it has a small machine assembly.
Compliance with multiple models
Mini PIX helicopter models can be used on racing drone, fixed wing and 3-6-axis drones, and Poshold Mode-Stabilized Mode-Acor mode can be changed at any time, making flight is no longer difficult.
