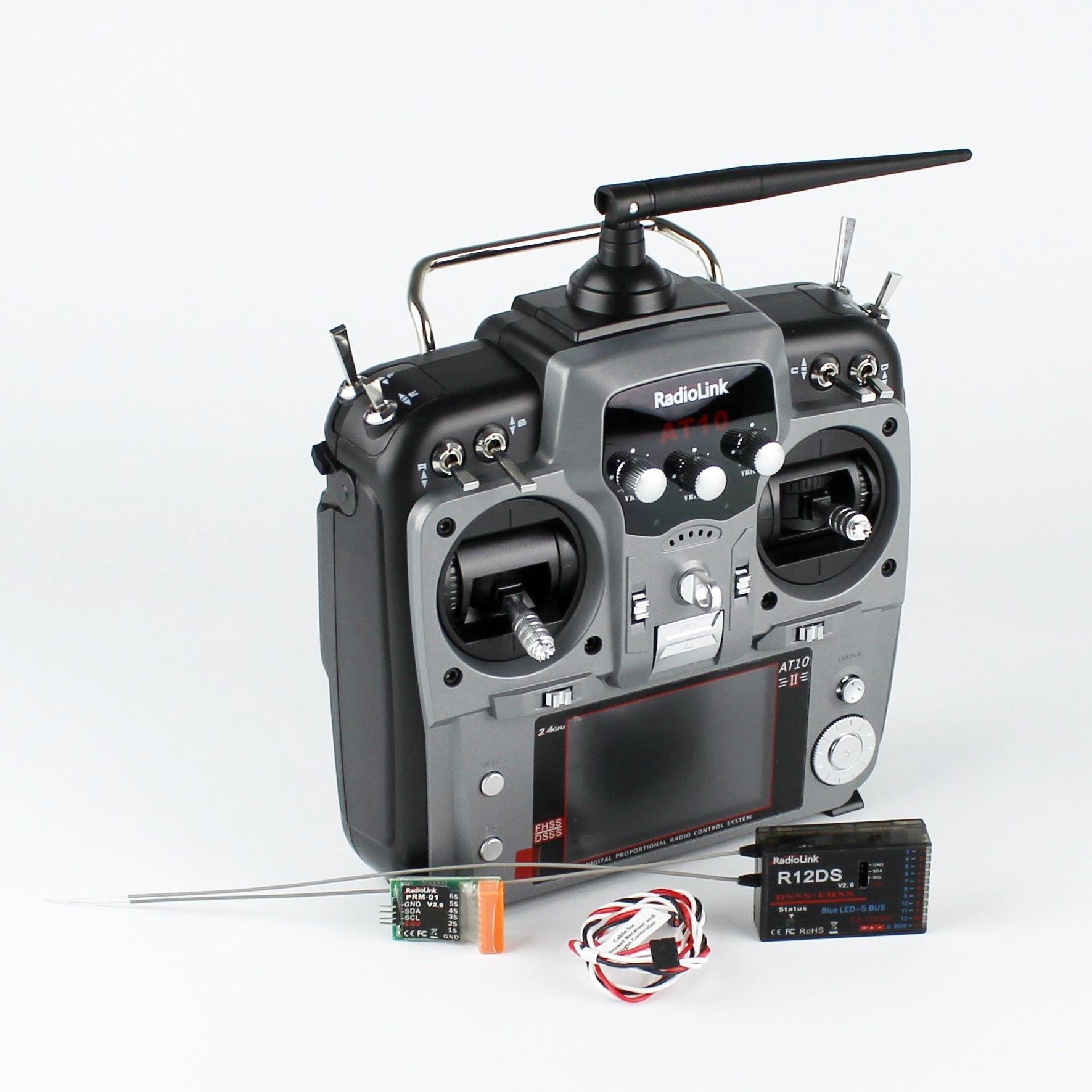

Ordinary: Radiolink AT10II 12 Channel 2.4GHz Remote Control and R12DS Receiver Set-Luminous Color
Brand:Radiolink
Product code: Rlat10v2g
Type:Remote control and buyer
Material:Plastic, metal
Contents:

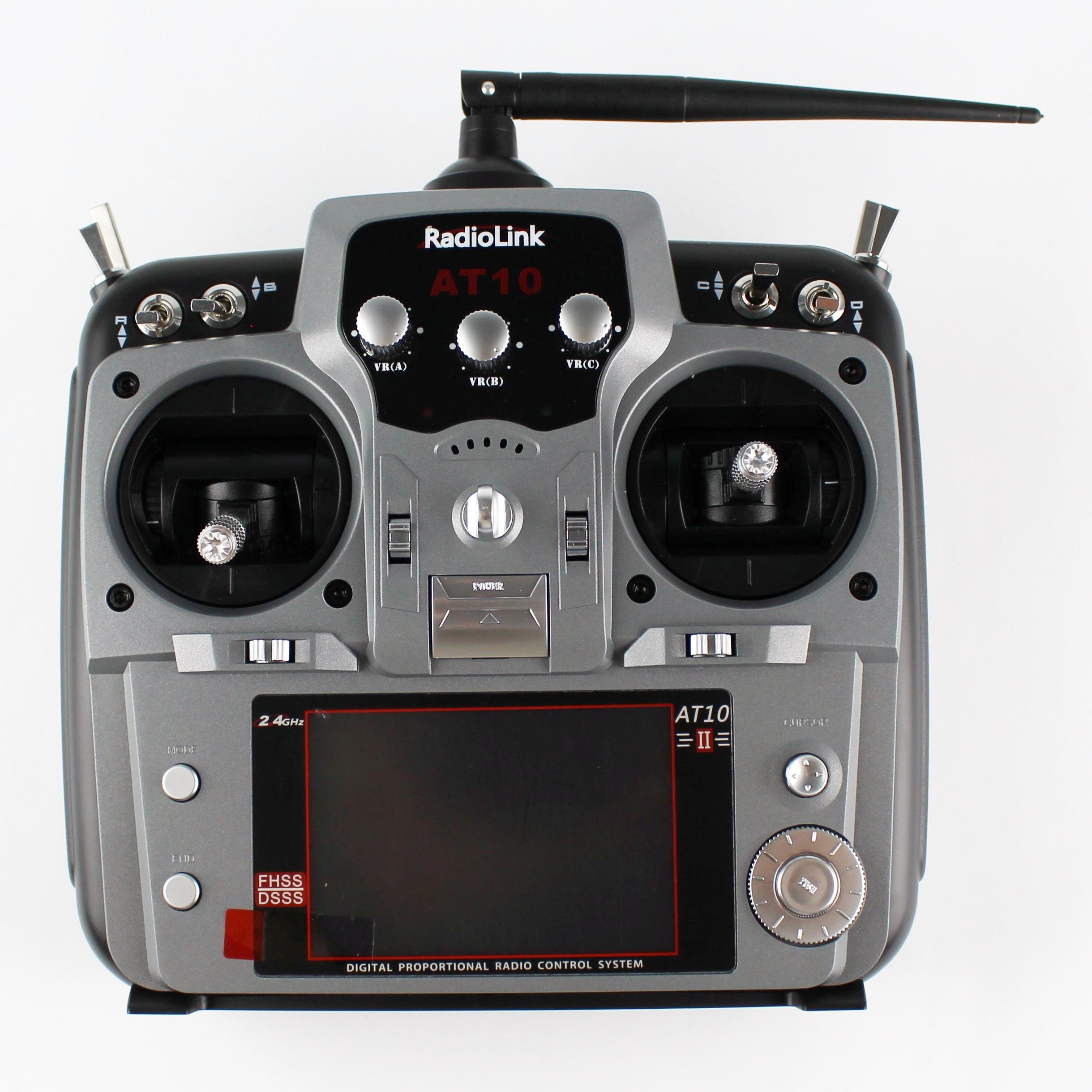

Radiolink AT10II 12 Channel Control

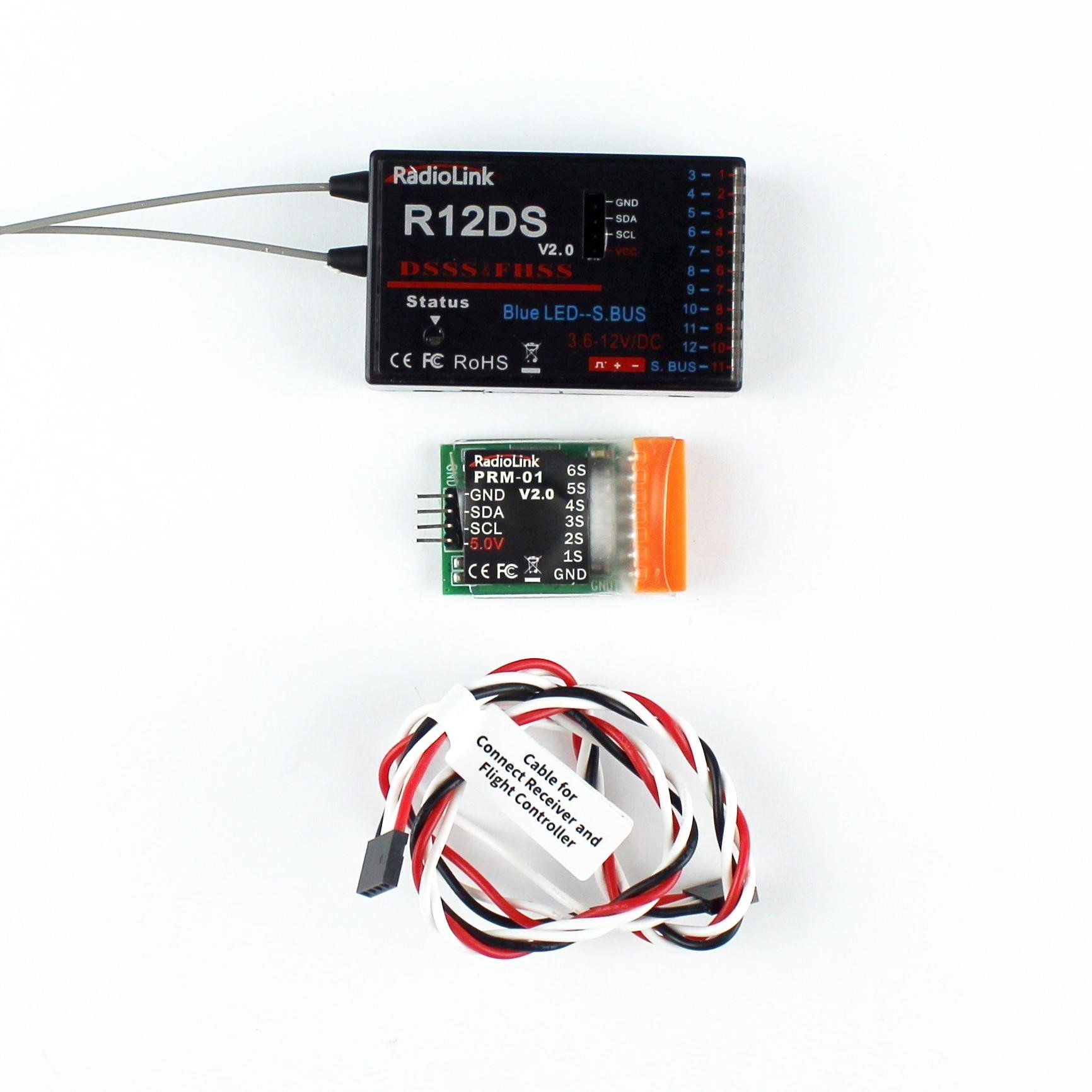

Radiolink R12DS Control Receiver
Battery voltage cable
Telemetry module
User manual
Sagittarius and Hook
Control and Receiver Features:
AT10II Dimensions: 180x95x220 mm
AT10II Weight: 0.950 kg
R12DS Dimensions: 50x32x15 mm
R12DS Weight: 12 Gr
Freacance Band: 2.4GHz ISM (2400MHz - 2483.5mhz)
Modulation Mode: QPSK
Bandwidth: 5.0mhz
Spectrum Mode: DSSS & FHSS
Acpr:> 38dbm
Transmission Power: <100MW (20dbm)
Working current: <105ma
Working Voltage: 7.4 ~ 15.0V
Control range:> 4000m in the air
Channel: 12
Compatible buyers: 12CH, R12DSM, R12DS (STD)/ 10CH, R9DS, R6DS, R6DSM
Compatible Models: Robot, Bot-Tekne, Car, Glider, Multi-Motor
Hobbytmae Review:
Radiolink AT10II: 2.4GHz 12 Channels, DSSS+FHSS, GPS, SBUS/PWM/PPM
1. Support Futaba S-Bus Protocol and Suit for All Aeroplane Models, Inclument Helicopter, Multi-Rotor, Glider, Fixed Wing Etc.
2. Hybrid Dual Spread Spectrum: DSSS+FHSS, with no interference.
3. Voice Alarm for Low Voltage, RSSI Value
4. SBUS, PPM, PWM Support
5. 4096 Precision
6. Response Time: 3MS for the 12ch Response Synchronously
7. Green and Low Comsumption, Universal Jst Connector
8. Telemetry: Driving Voltage, GPS, Temperature and Engine RPM and To Be Extended
9. Multi-Language: English, Spanish, German, Frence, Russian, Korean and Chinese
You can find the ingredients you need to finish this product at the bottom of the page
Radiolink AT10II 12 Channel 2.4GHz Remote Control Features:
