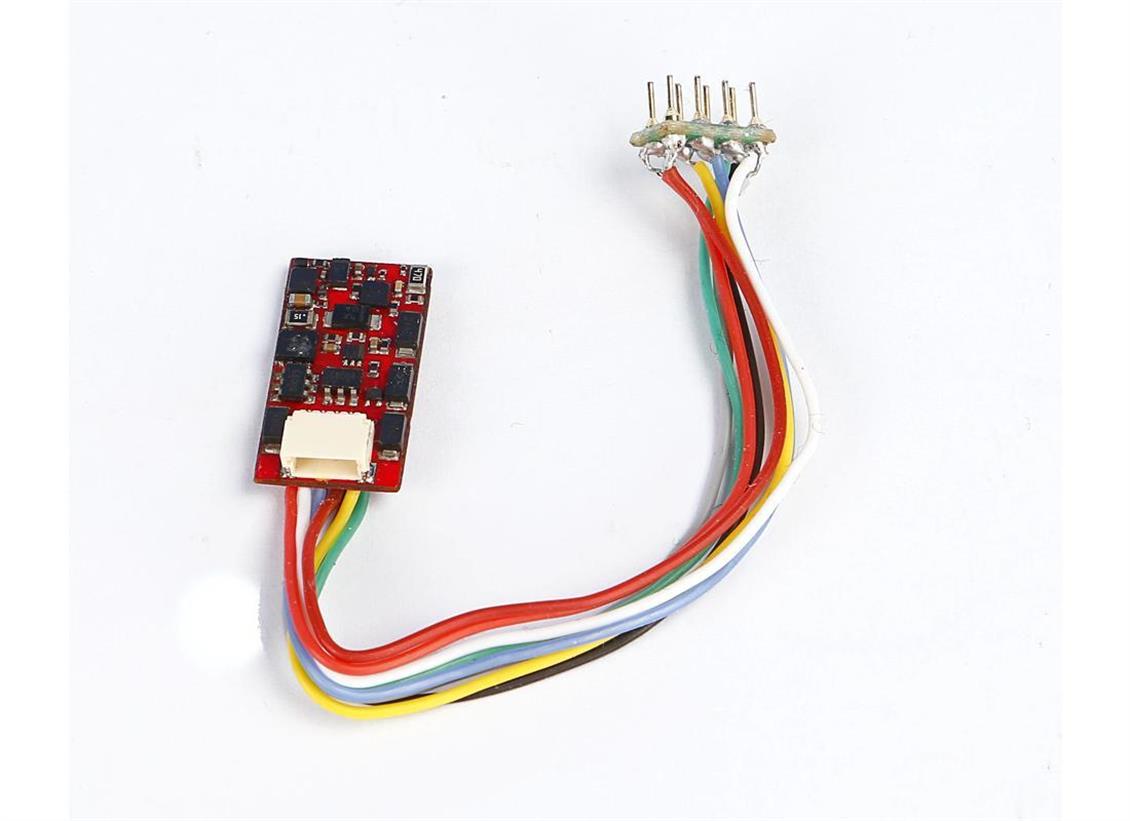

Piko 56403 SmartDecoder 4.1 for 8-pin Interface (PK56403)

Smartdecoder 4.1 for pico 56403 8 pin interface


Brand:Pico

Product Code:56403

Type: Control unit

Material:Metal

Contents

1 Smartdecoder

1 usage manual

Smartdecoder 4.1 for 8 pin interfaceFeatures

This locomotive decoder is small and precisely detailed.

It is a multi -protocol decoder that can be used with DCC.

SELECTRIX- and Motorola also operate in analog mode with digital systems, as well as AC or DC currents.

Although it can operate automatically after connecting to the locomotive, it is possible to run it by hand.

Since this decoder operates at 18.75 KHz frequency, it has the suitability to operate not only for DC current but also for the 0.8A fixed current.

Railcom and RailComplus can also be controlled.

What to do in the assembly and warnings:

First of all, open your locomotive and then make sure you install the 8 -polar socket plug next to the engine surface with the decoder tip. Once you've done all your operations, run the locomotive and wait for itself to program itself for a while. Then it is ready to use. You can also check your transactions in order via the assembly guide and CV value table.
