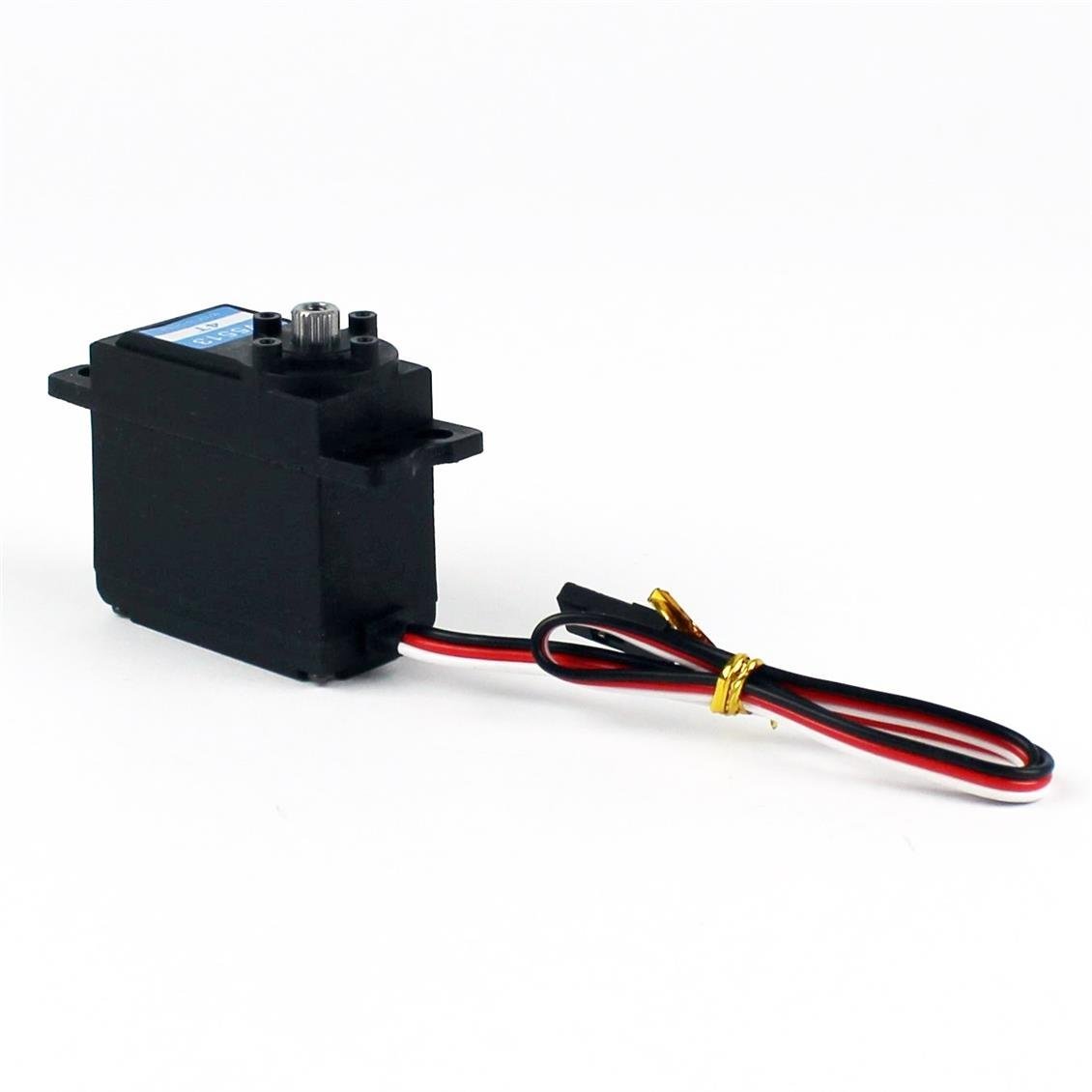

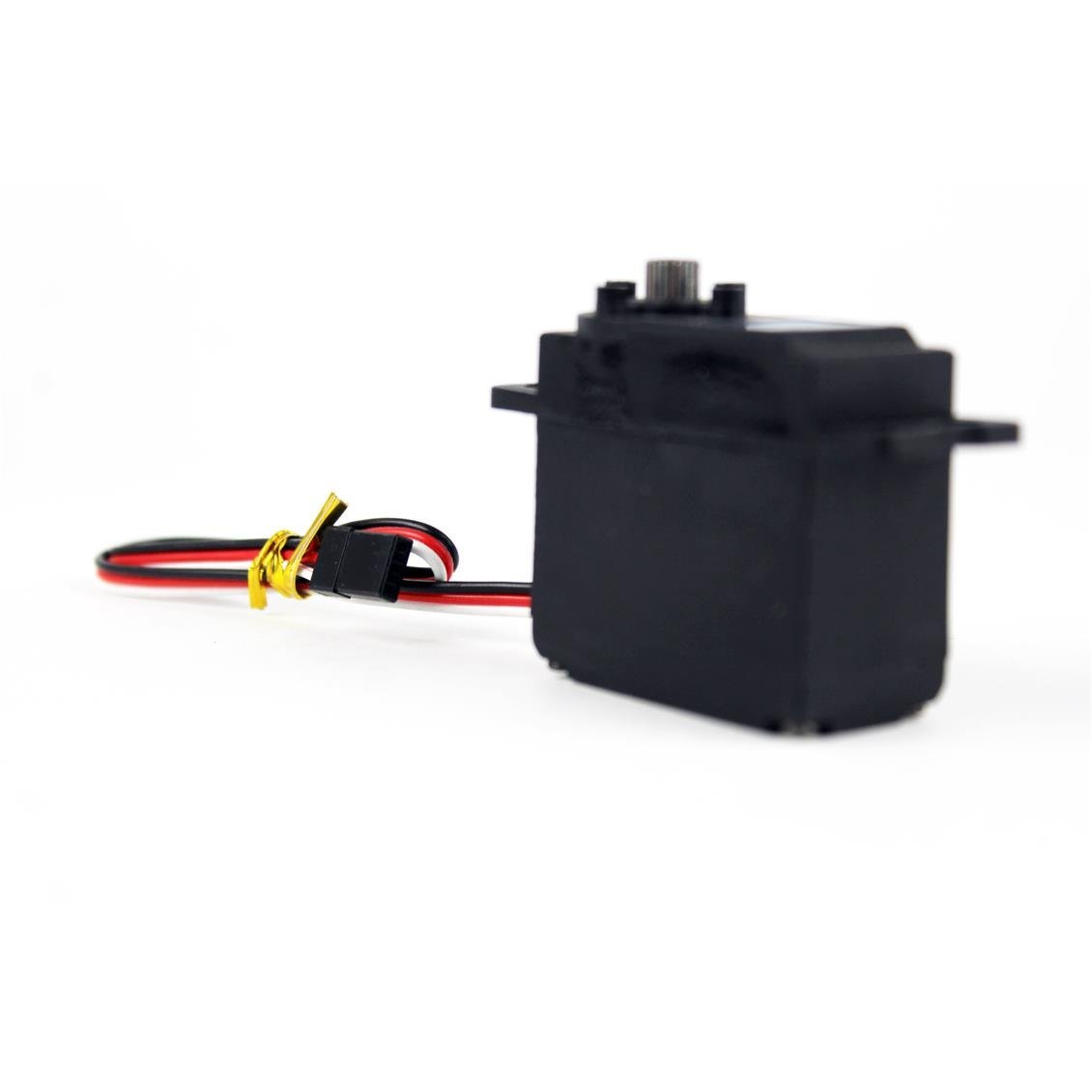

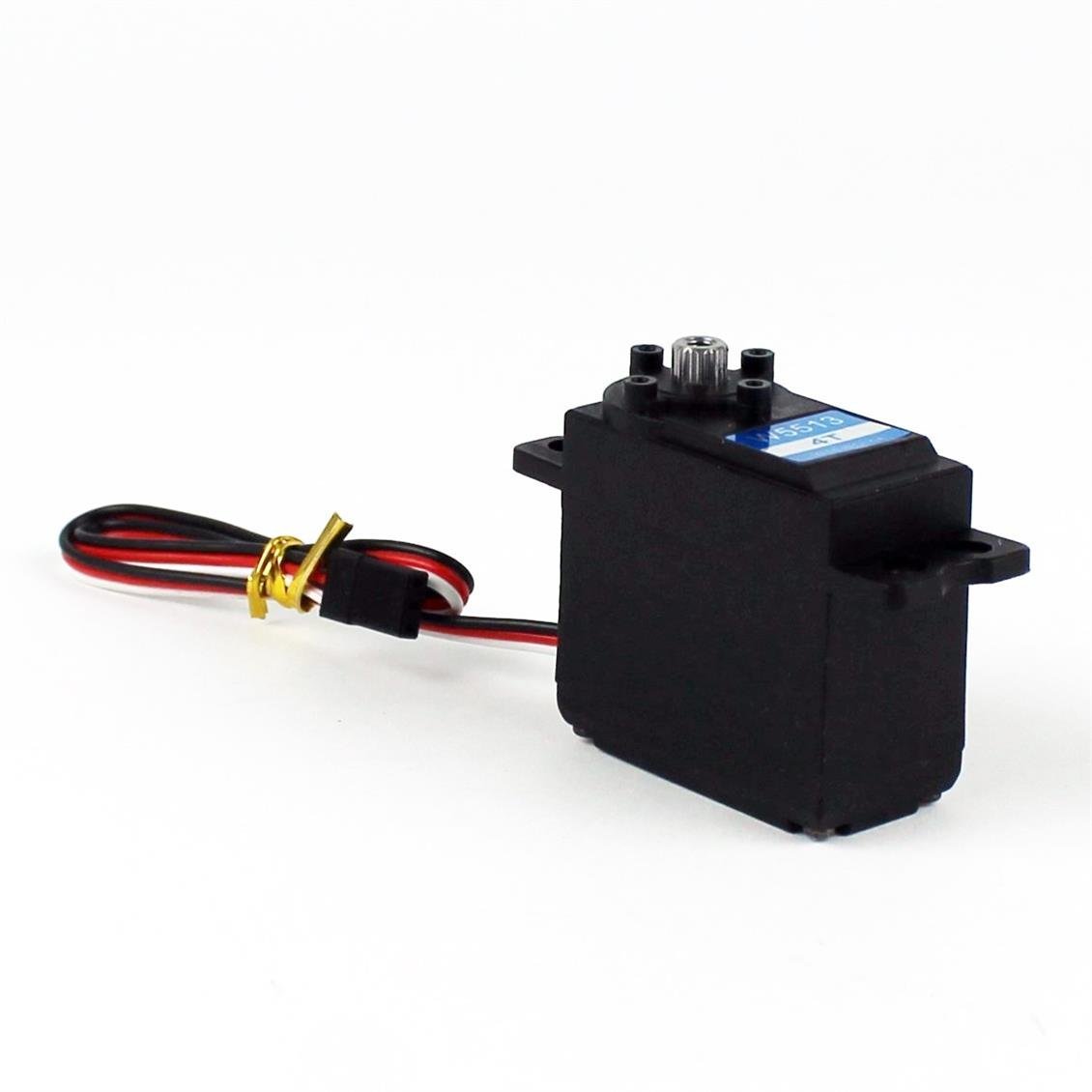

JX W5513-4 Tour, 9-11 Kg/cm Sail Winch 55 Gr. Digital Servo (JXW55134MA)

Contents

• 1 JX W5513-4 round, 9-11 kg/cm sailing crane 55 gr. Digital servo

Features

• Return: 4-4.5T
• Working voltage range: 4.8 ~ 6v
• Speed ​​(4.8V): 1.1sn/360
• Speed ​​(6,0V): 0.9sn/360
• Torque (4,8V): 9,24kg.cm (128.34oz/inch)
• Torque (6,0V): 10,63kg.cm (147.65oz/inches)
• Working current: 0,11 ~ 0.12A (in no load)
• Working current: 0.30 ~ 0.35a
• Stop current: 0.86 ~ 1.05a
• Size: 40,5x20.2x38mm (1.59x0,80x1,50in)
• Weight: 55g (1,94oz
• Gears: metal gears
• Connector wire length: jr 265 mm (10.43 inches)
• Number of teeth: 25T

JX W5513-4 Tour, 9-11 kg/cm Sailing crane 55 gr. Digital Servo is a high -performance servo designed especially for sailing models. With 9 to 11 kg/cm torque range and 55 grams, it provides reliable and precise control in your sailing models. Thanks to its digital structure, it offers high precision and rapid response times. This servo offers long -lasting use and reliable performance with durable metal gears.
