JX RD-C7638HV-180 Degree, 31-38 Kg/cm Coreless Metal Gear 76 Gr. High Voltage, Digital Servo (JXRDC7638HV180)

Brand : JX SERVO
Price : $104.40
Vat included : $104.40
Stock Amount : 5
Barkod : 6900000182826
sezon kodu
Ölçek :



Contents

  • 1 JX RD-C7638HV-180 degrees, 31-38 kg/cm Coreless Metal Gear 76 Gr. High voltage, digital servo


Features

  • High accuracy is all metal stainless steel gear, produced in Taiwan
  • Dijital spacer
  • Dead Zone: 2μs
  • Neutral Dot: 1500μs
  • Support Pulse Width: 500μs-2500μs
  • Electricity: hollow cup
  • Maximum angle: 180 ° ± 2 °
  • Frequency: 330hz
  • Voltage range: 5.0V / 7.2V / 8.4V
  • Speed ​​(5.0V / 7.2V / 8.4V): 0.14 / 0.12 / 0.10sn / 60 °
  • Twist (5.0v / 7.2v / 8.4v): 31 / 33.5 / 38 kg.cm
  • Size: 40x20x40mm
  • Weight: 76 g
  • Line Features: JR 265mm / -Kahver + Red S Orange
  • Export head: 25T

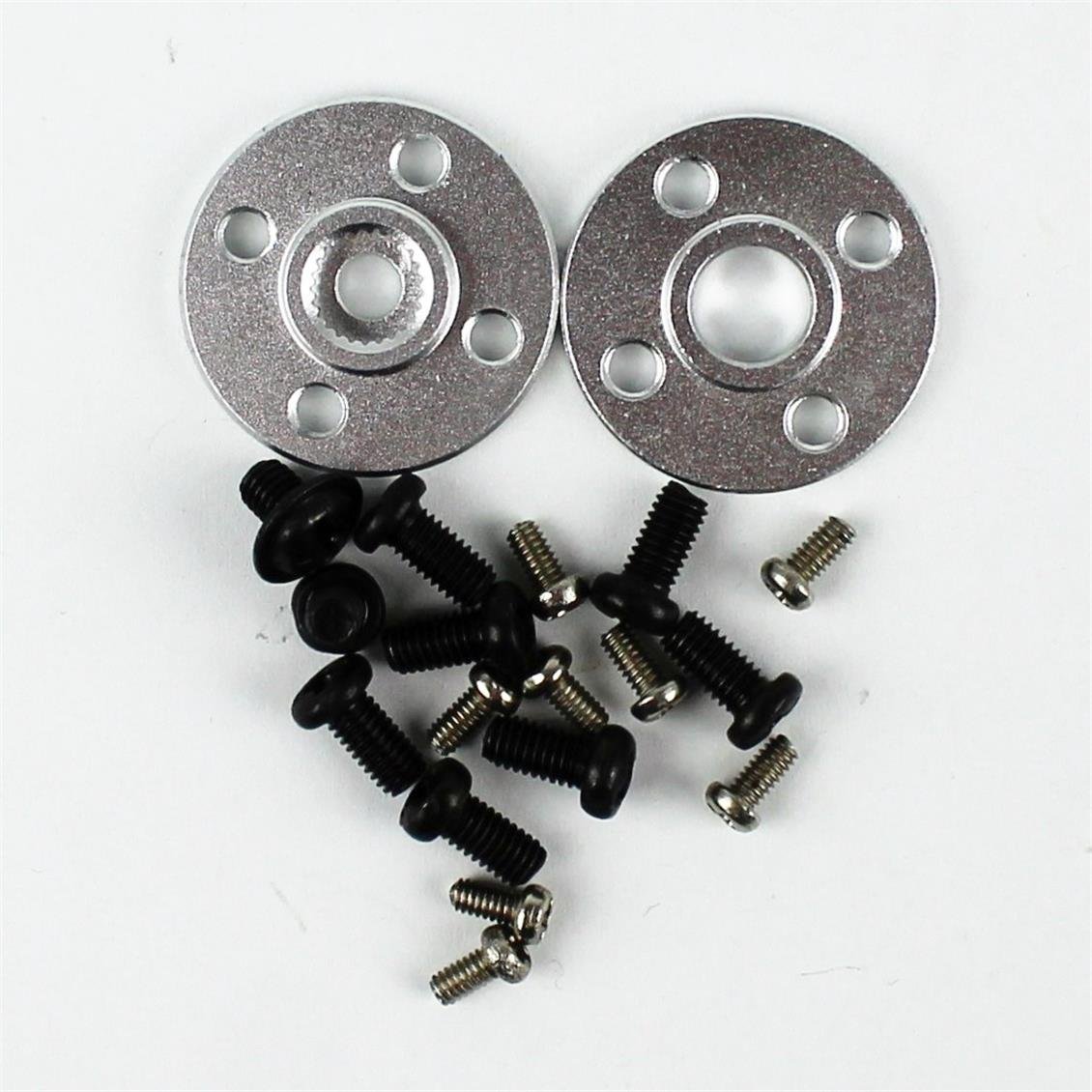

  • Accessories: Two metal discs with screws

Hobbytime Model Information

JX RD-C7638HV is a digital servo with a capacity of 180 degrees, working at high voltage. Thanks to its Coreless metal gear structure, it provides high torque power and offers long -term use with its durability. Especially RC vehicles, robots and other precision controls that require high performance.
