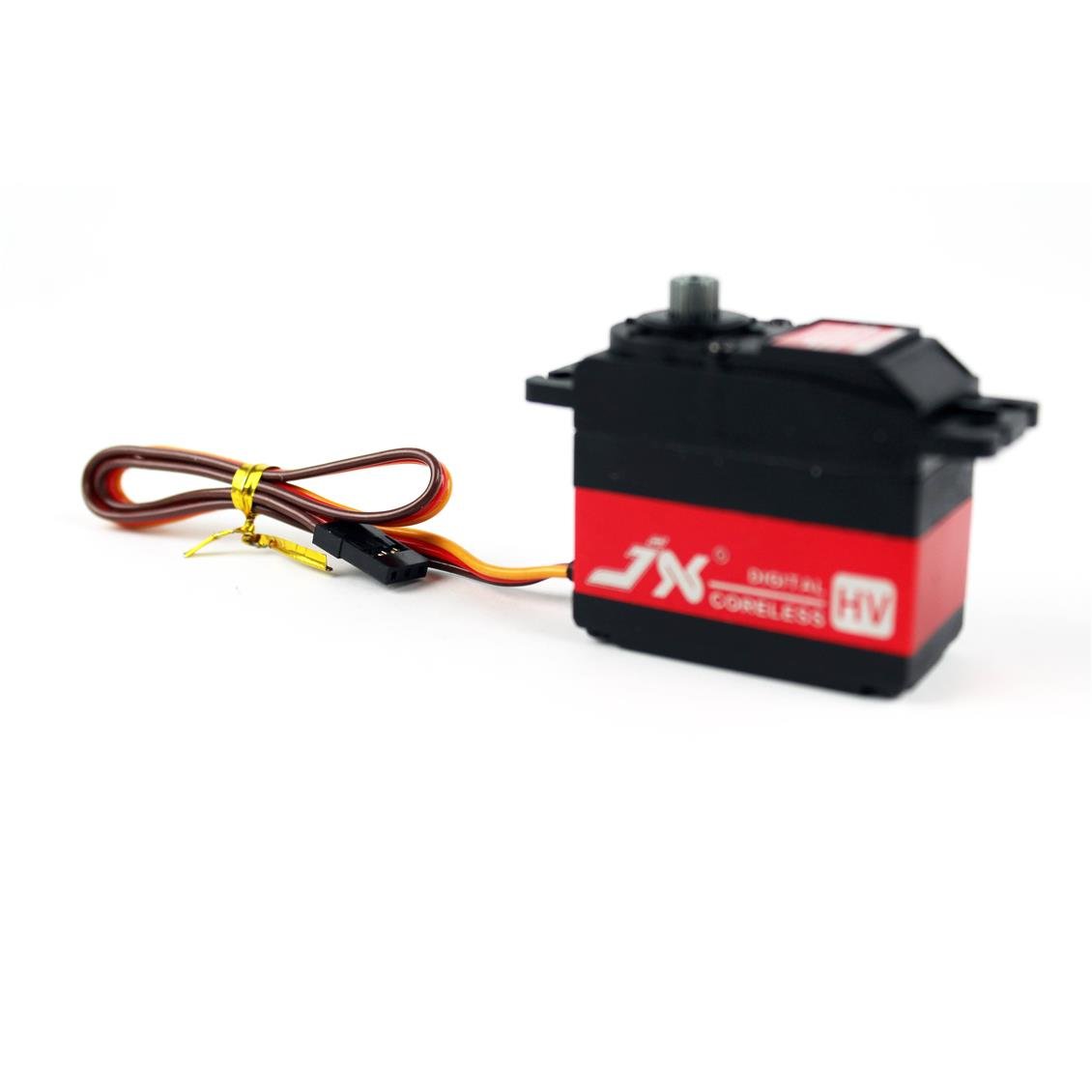

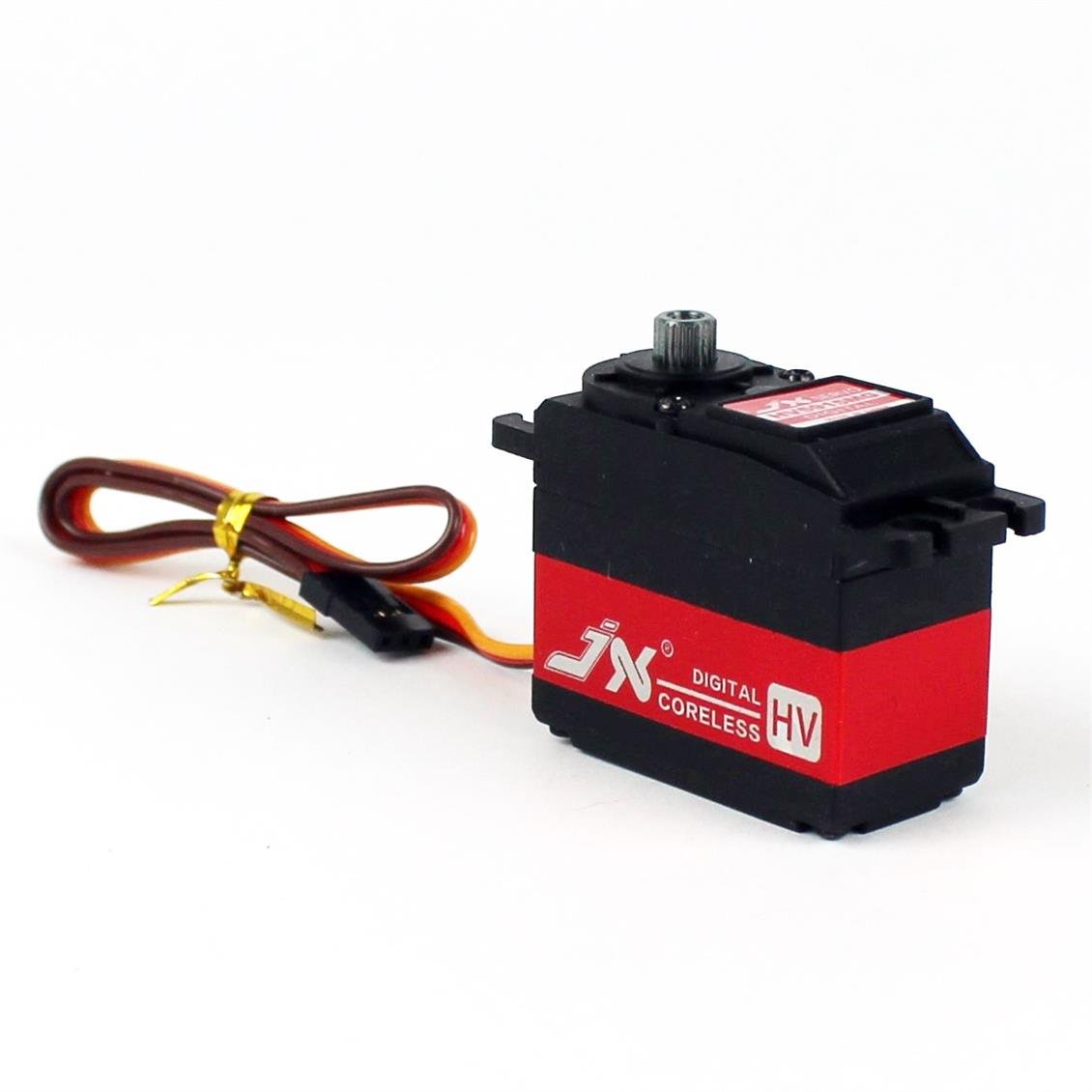

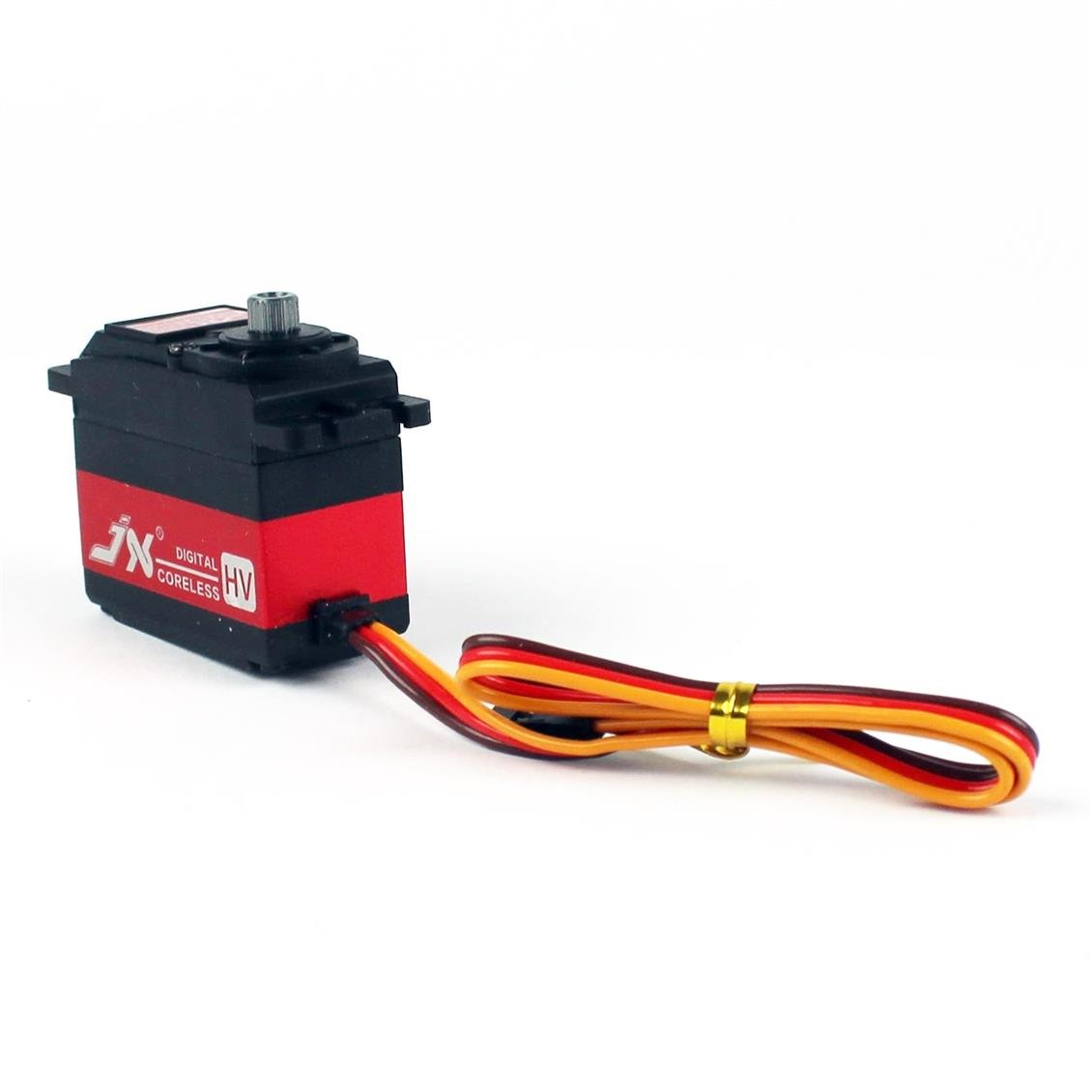

JX PDI-HV5915MG 13-16 Kg/cm Coreless Metal Gear 59 Gr. High Voltage, Digital Servo (JXPDIHV5915MG)

Contents

• 1 JX PDI-HV5915mg 13-16 kg/cm Coreless Metal Gear 59 Gr. High voltage, digital servo

Features

• High Performance Digital High Voltage Seedless Standard Servo
• Hard Elokslı high -precision Taiwan making aluminum gears
• Double ball bearing
• CNC Aluminum Middle Body
• Waterproof
• Dead band: 1μs
• Frequency of Working: 1520μs / 330hz
• Engine: seedless engine
• Working Speed ​​(6.0V): 0.112sn / 60 °
• Working Speed ​​(8.4V): 0.095sn / 60 °
• Durak Torku (6.0v): 12.86 kg.cm (178.59oz / inches)
• Durak Torku (8.4V): 15.83kg.cm (219.83oz / inch)
• Dimensions: 40.5x20.5x36.5mm / 1.59 x0.80x1.43 inches
• Weight: 59.3g (2.09oz)
• Connector wire length: jr 265 mm (10.43 inches)
• Rulman: 2BB

JX PDI-HV5915mg 13-16 kg/cm Coreless Metal Gear 59 Gr. High voltage digital servo is a model that stands out with its high voltage compatibility and light structure. This servo reacts faster with lower vibration thanks to Coreless motor technology, suitable for mid -range RC vehicles, helicopters, fixed -wing aircraft and robotic systems with 13 to 16 kg/cm torque range. It is long -lasting and durable thanks to its metal gear structure. This digital servo weighing 59 grams offers reliable performance in applications that require high precision.
