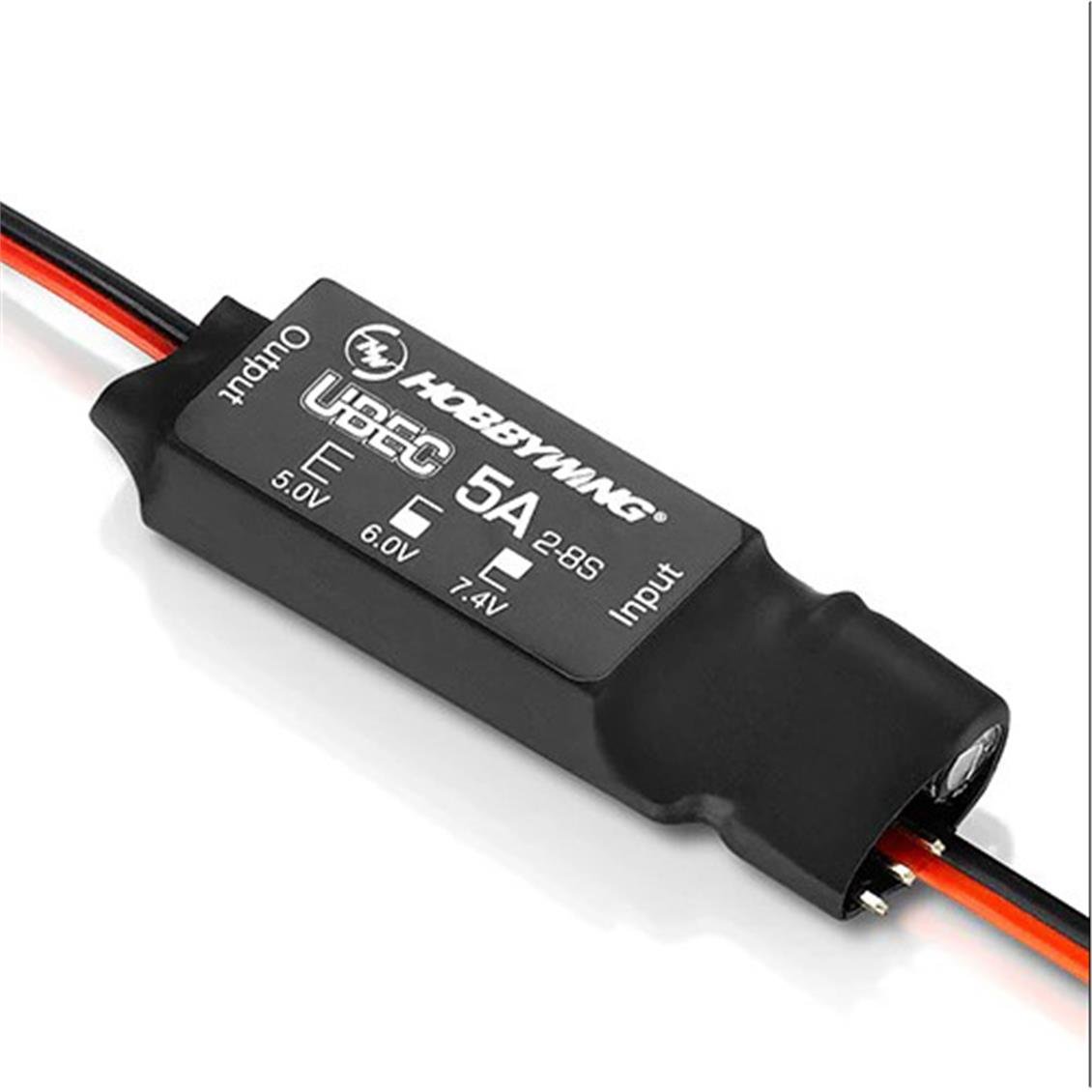

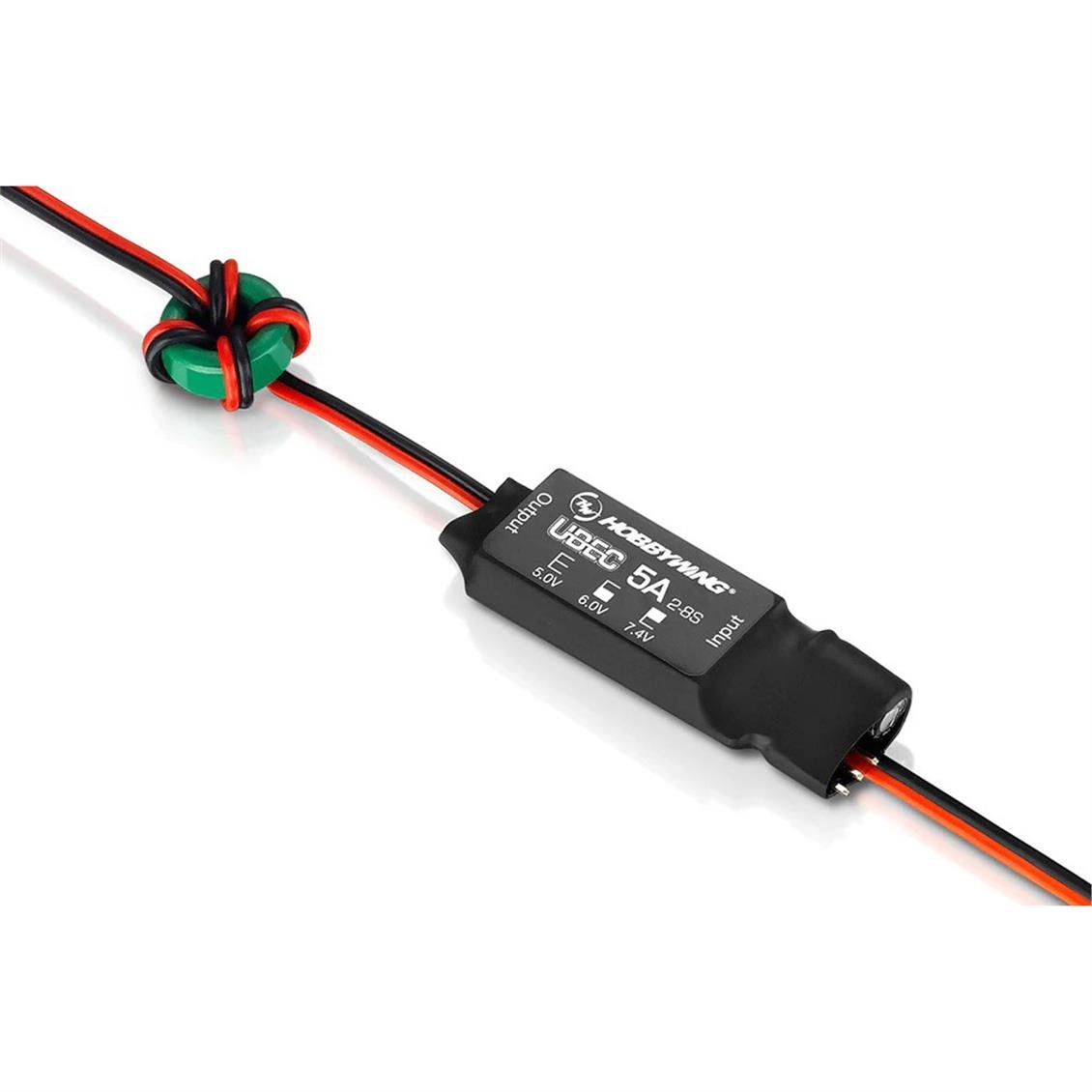

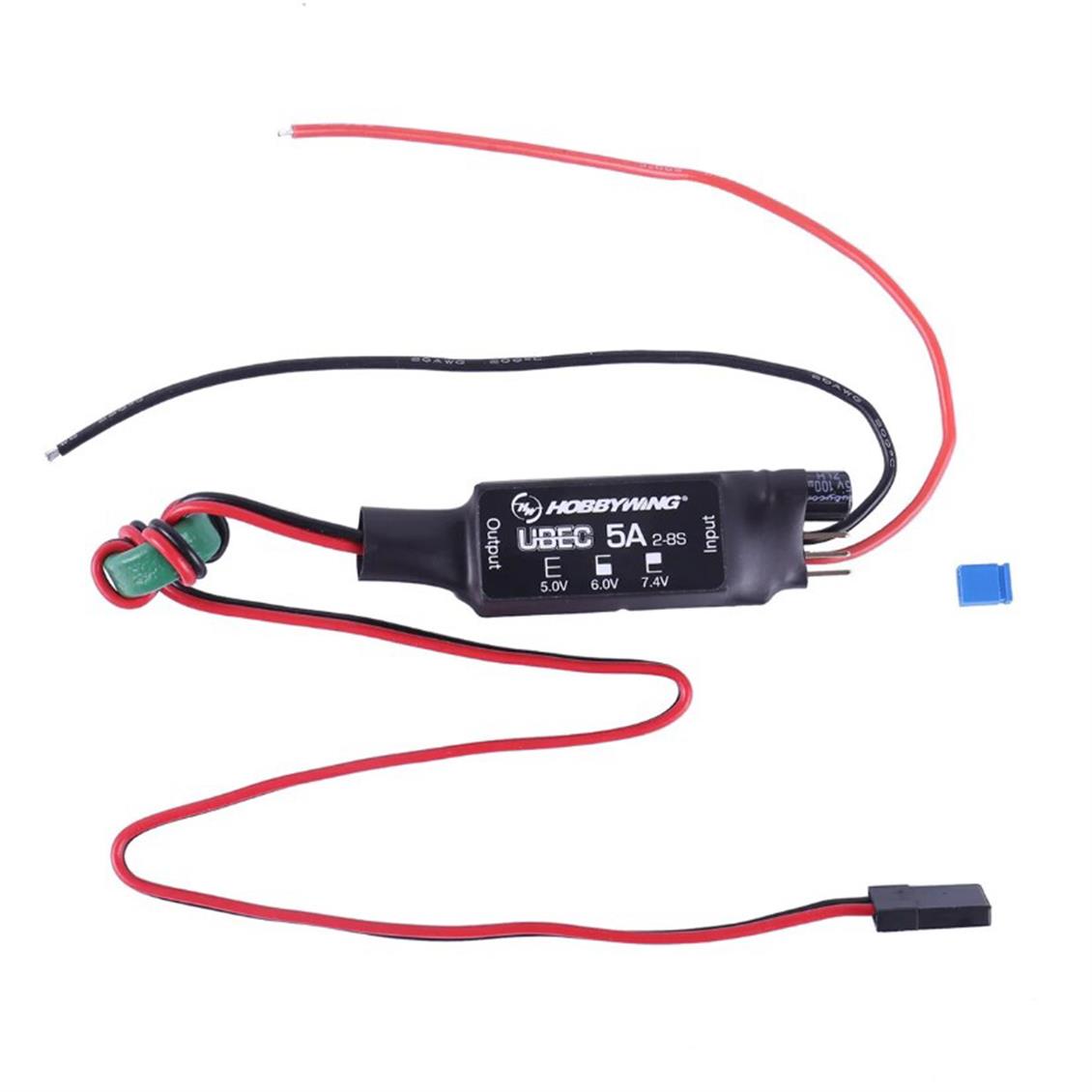

Hobbywing 30607000 UBEC, 5 Amp, V2-Air 2-8S LiPo (HBW30607000)

Contents

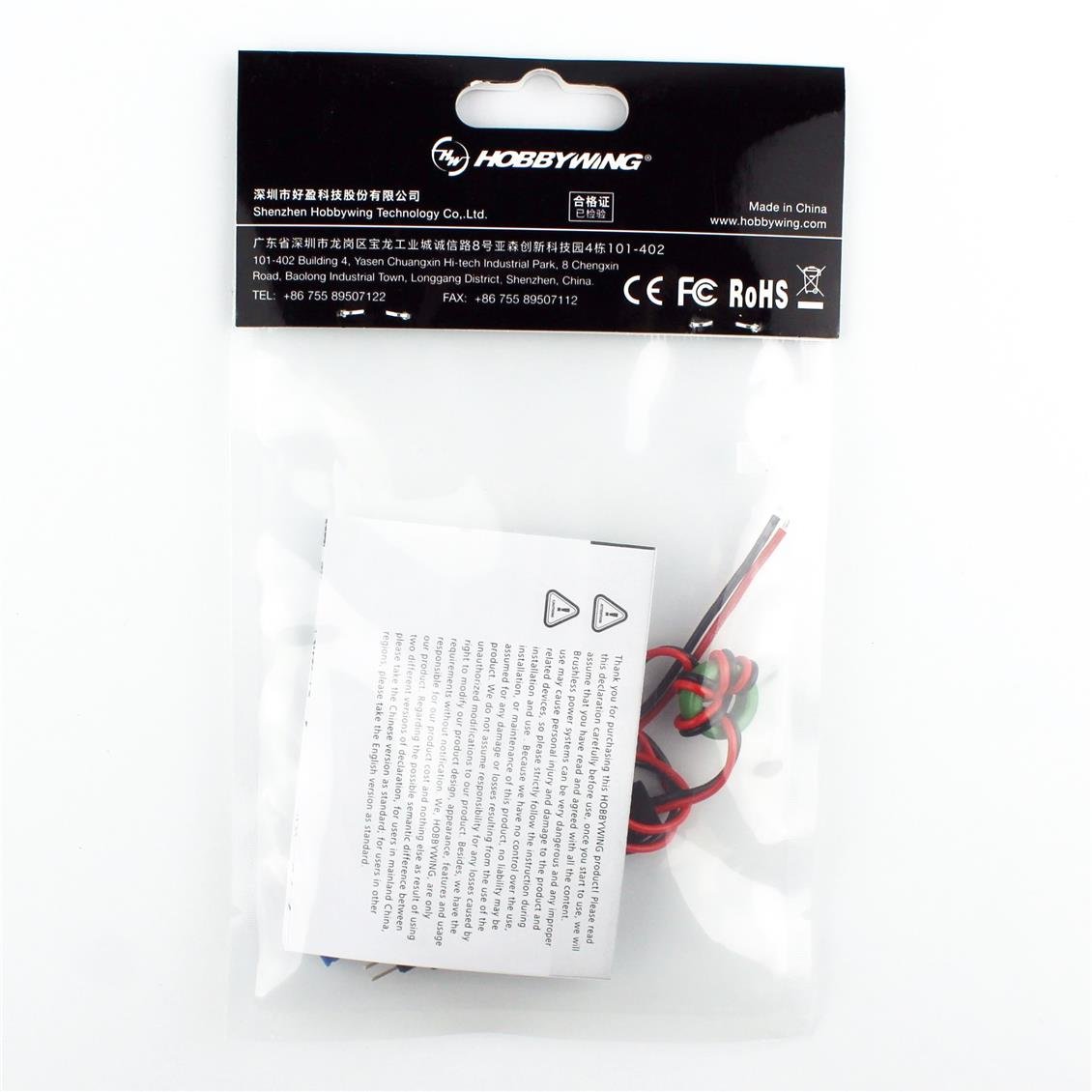

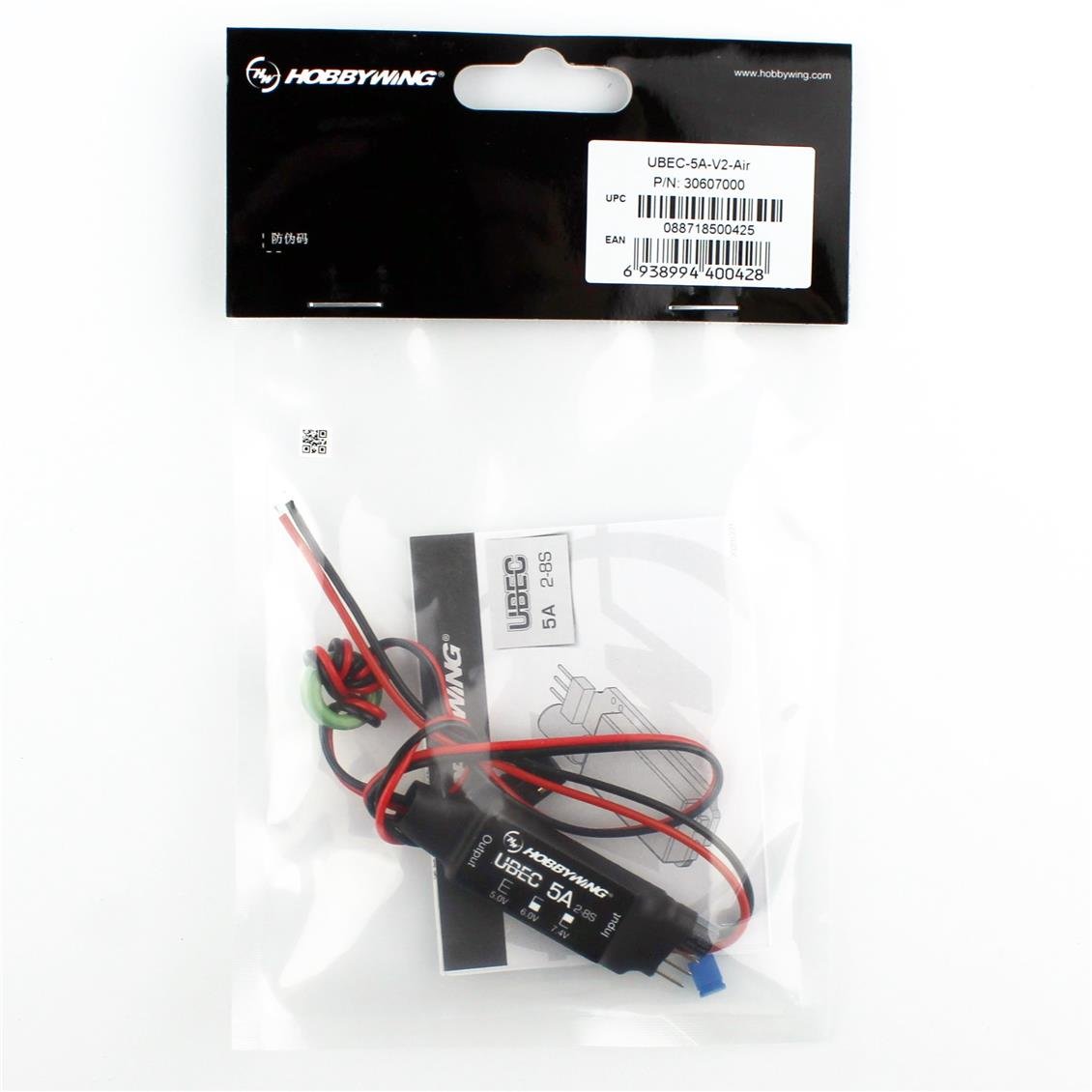

• 1 Hobbywing 30607000 Ubec, 5 amps, V2-Air 2-8s Lipo

Features

• High efficiency DC-DC regulator chip for transmission efficiency of over 90 %.
• Fully metal body design helps transmit heat and reduces electromagnetic parasites.
• Adjustable Ubec output voltage for servos with different voltages (5.0V / 6.0V / 7.4V).
• Multiple protection functions: Over current protection, output short circuit protection, overheating protection, safe and reliable.
• LED display showing Ubec's status.
• Entry voltage: 2-8s lipo
• Output Voltage: 5.0V / 6.0V / 7.4V (adjustable)
• Current Continue / Tepe: 5A / 15A
• Dimensions: 50x17x10mm
• Weight: 21g

UBEC uses a high-performance DC voltage regulator with a switching module that takes its voltage from 2-8S Lipos. However, the regulator gives an extremely stable 5A or 15A for a short period of time. Therefore, this UBEC provides power for any RC model device. It is also suitable for fixed wing aircraft.
