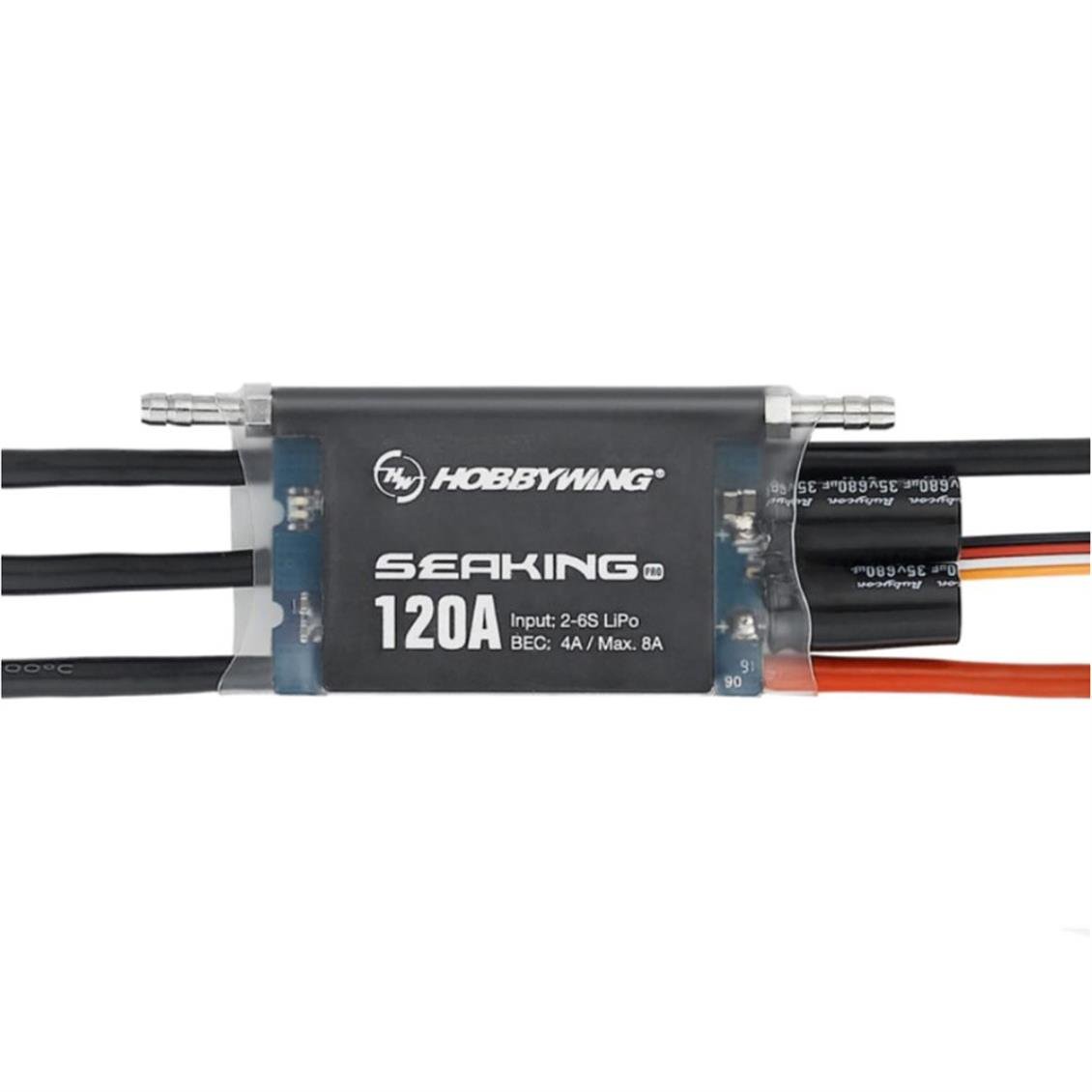

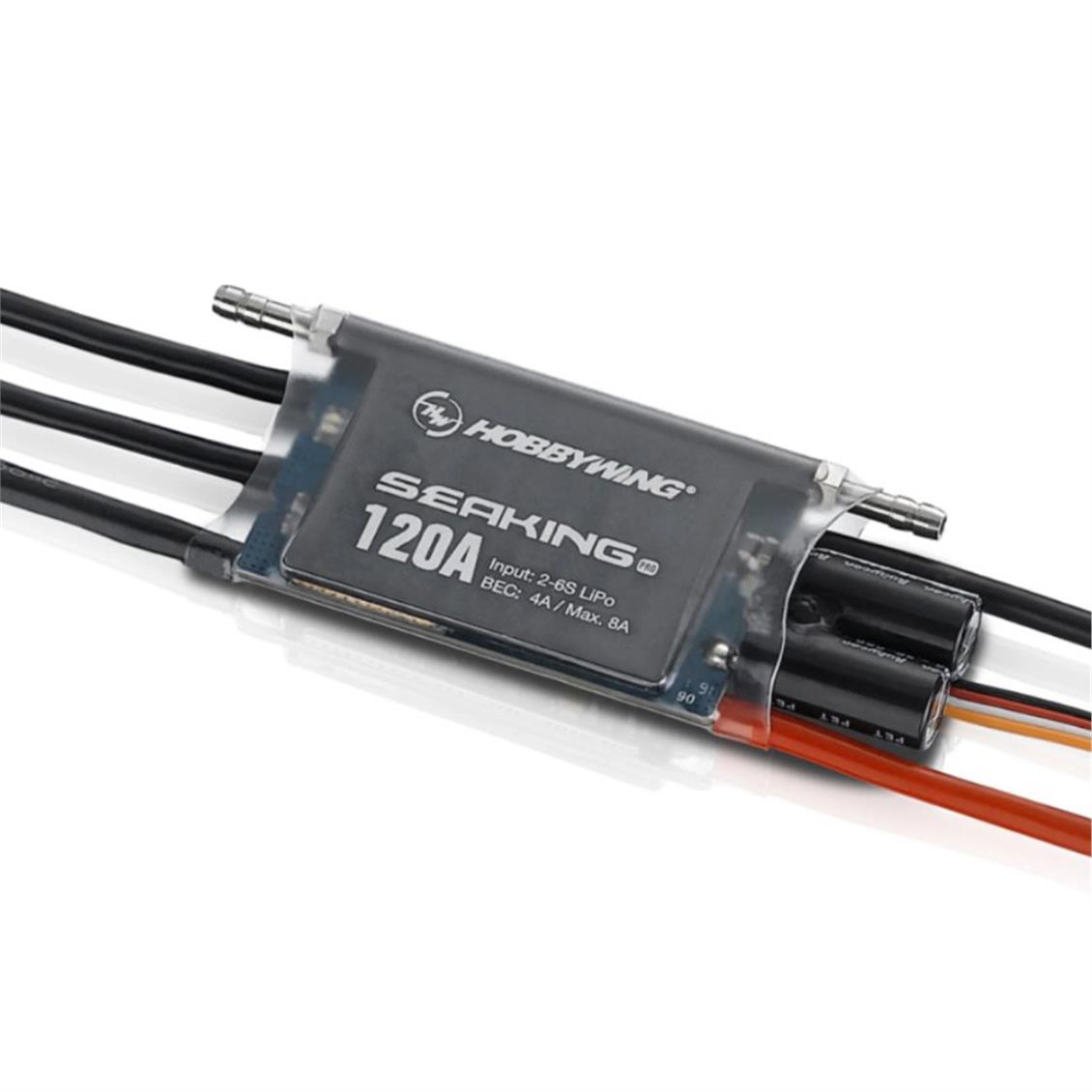

Hobbywing 30302361 Seaking Pro Series, 120 Amp, 2-6S LiPo, Water Cooled Electronic Speed ​​Control for Brushless Boat Motor (HBW30302361)

Contents

• 1 Hobbywing 30302361 Seaking Pro Series, 120 amps, 2-6s lipo, brushless boat motor water cooled electronic speed control

Features

• Spring -proof (IP55 Classification)
• Working Mode: Only forward or forward and back
• Maximum continuous current: 120a
• TEPE CURRENT: 760a
• Power Supply: Lipo 2S to 6S or Nimh 6 to 18 cells
• Bec: 6V or 7.4V 4A (8A Tepe)
• Dimensions: 96.6x37.9x10.3mm
• Weight: 87.5 gr
• Controller programming is done in the following ways: LCD program box, wifi module, ota programmer and computer
• Software update: upgrade is possible
• Cooling hose connection dimensions: Ø2mm interior / Ø5.5mm external
• Battery connection with 12awg cable
• Connection to the engine via 12awg cables
• Motor cables are equipped with Ø4.0mm round connections
• Battery cables without connector

Brushless engine controller designed for use especially on model boats.
Excellent design is protected against water splashing (IP55 degrees).
High quality components that will withstand high current peaks (up to 760a).
Designed for the competition
The low weight of the Seaking Pro 120A is designed to meet the needs of users looking for a light product for all marine competitions where weight is a factor with speed and durability. The essence of the program for high -level competition products is to guarantee a large number of programmable parameters for the user for the highest quality equipment and different competition environments (this controller is particularly suitable for Eco/Mono1 classes).
Jump -on -the -minded
The entire circuit card and all components are subjected to nano coating, and the Seaking Pro 120A ESC is resistant to splashes.
Integrated high voltage bec
With a maximum 8A output and 6V/7.4V adjustable voltage, the integrated beck complies with many HV (high voltage) servo.
High durability and reliability
With reliable components (MOSFET with very low internal resistance), it guarantees the durability and reliability of advanced software (low voltage cutting protection, thermal protection, signal loss protection, etc.).
Innovative turbo function
The world's first sea controller that contains the turbo function that provides the user to prevent its competitors by providing instant turbo support.
Wireless Programming / Update
With Hobbywing WiFi module and a smartphone (as Hobbywing Wifi Link Software Board), you can remotely adjust the parameters or update the device software without leaving the user control field. Programming can also be done by cable using LCD program box programming card.
Efficient cooling system
Hobbywing's patented thermal conductor copper plate on the controller's power card combines with the water cooling module and distributes the heat to the outside and ensures that your controller remains as cool as possible.
Regular, free device software updates
Update your control device with Hobbywing USB LINK software and a computer. It updates the hardware software of Hobbywing control devices regularly, so you can benefit more often from advanced features when they are available.

Features of Hobbywing Seaking Pro 120A ESC:
Special Design for Competition
Splashproof protection
Integrated high voltage bec (up to 7.4 V)
Innovative turbo function
High durability and reliability
Thermal security
Wireless programming/upgrade
Efficient cooling system
Regular, free device software updates
