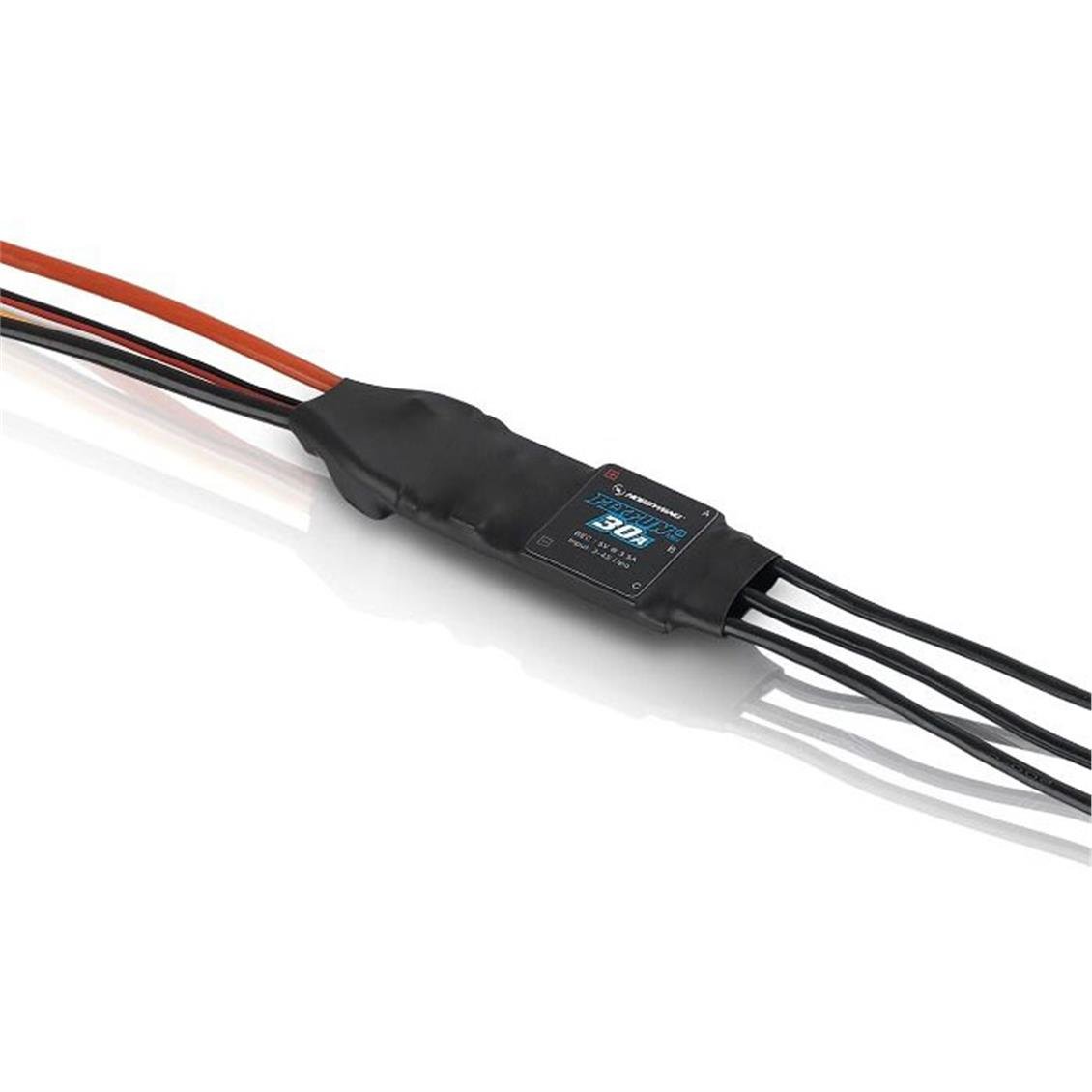

Hobbywing 30202307 Flyfun Mini Series, 30 Amp, 2-4S LiPo, 23 Gram, Brushless Electronic Speed ​​Control for Drone and Heli (HBW30202307)

Hobbywing 30202307 Flyfun Mini Series, 30 amps, 2-4s lipo, 23 grams, brushless drone and heli electronic speed control for heli

Brand:Hobbywing
Stock Code:HBW30202307
Type:Esc

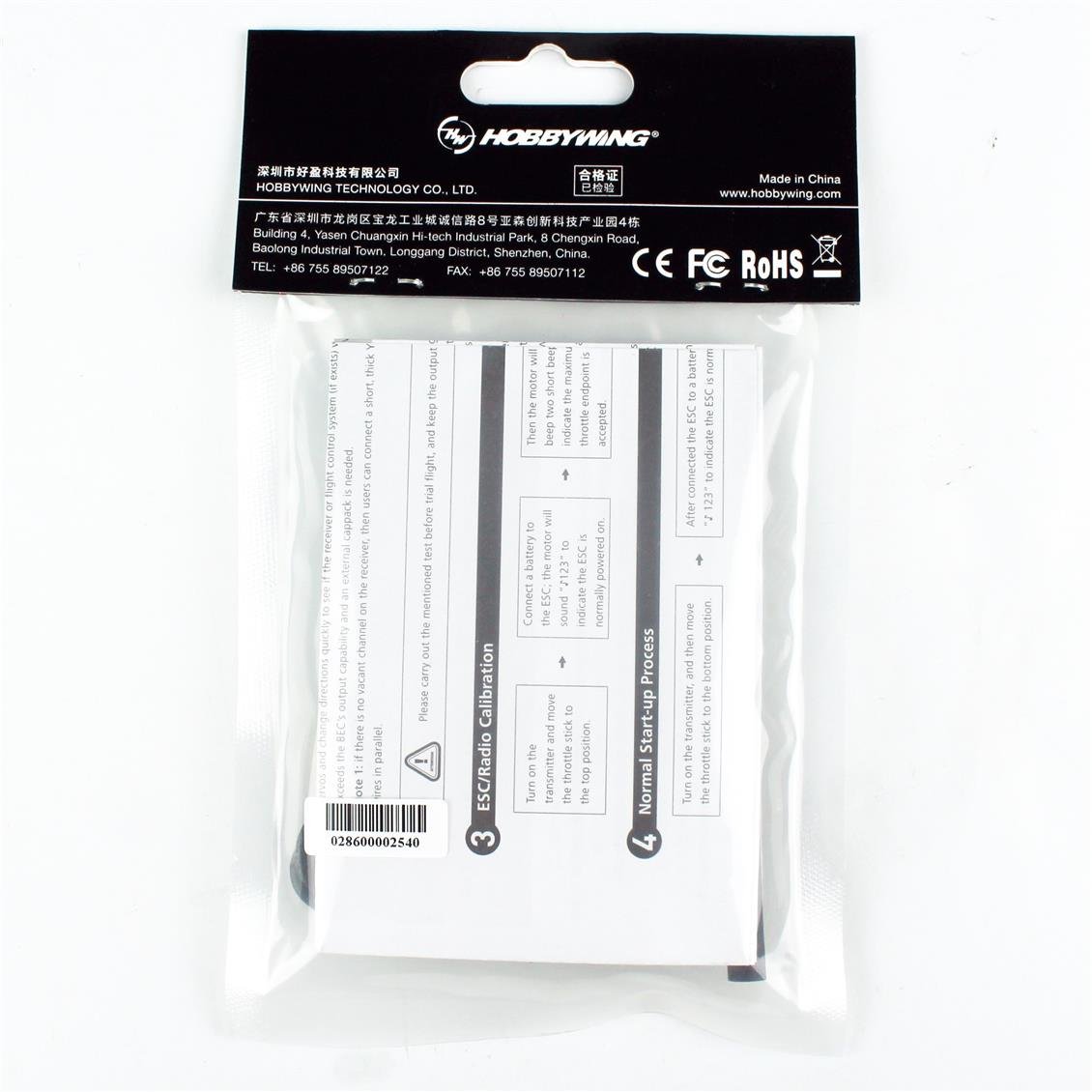

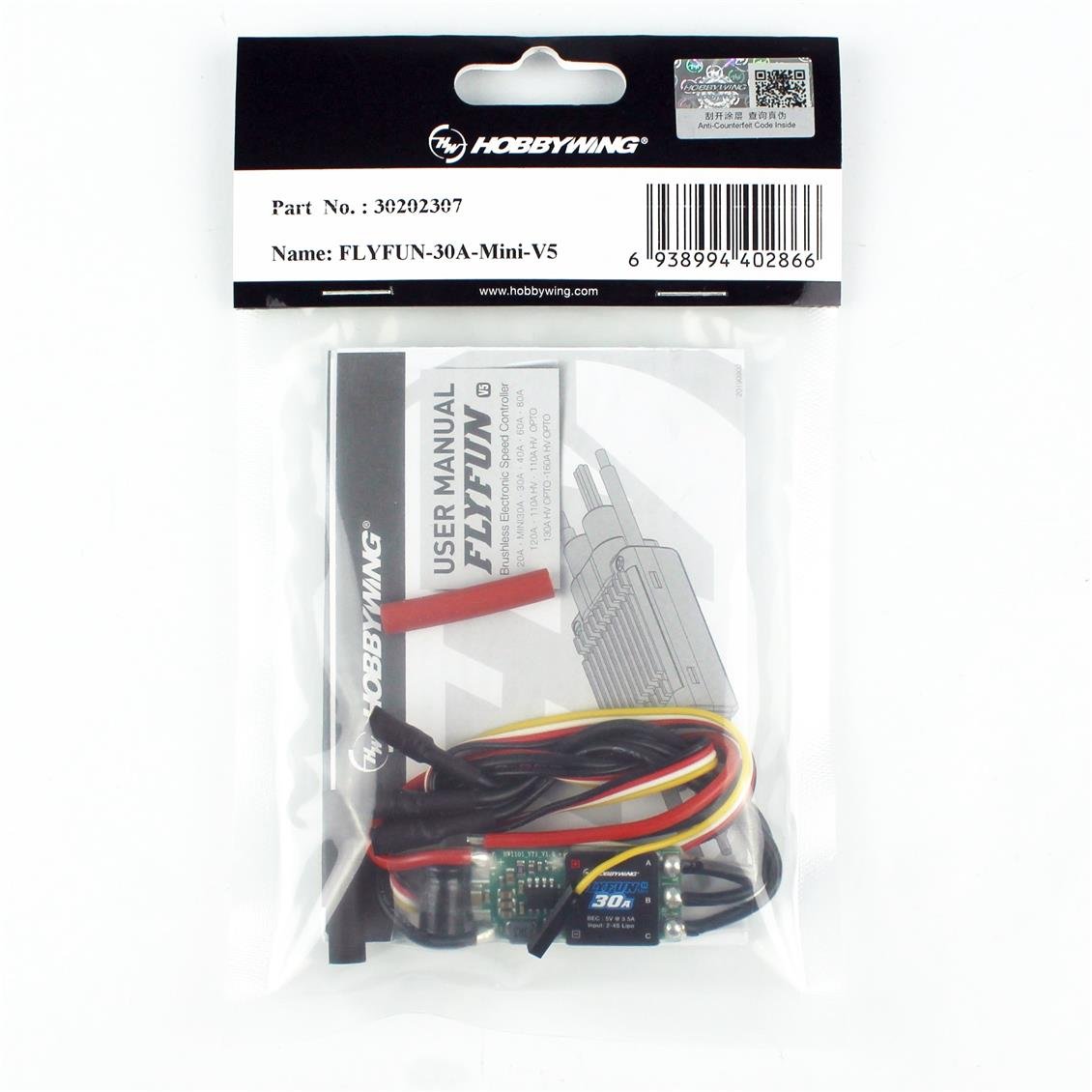

Esc content

• 1 30 amps, 2-4s lipo esc

ESC Features

• P/N: 30202307
• Continuous/Top Current: 30a/45a
• Login: 2-4s lipo
• Bec Key Mode: 5,2V, 3,5A/5A
• Entry / Output Cable: 16AWG-140mm / 16awg-10mm 3mm
• Login connector: no
• Output: 3mm gold connectors (female)
• Size (mm): 37x17x5mm
• Weight (G): 23g

You can find the ingredients you need to finish this product at the bottom of the page

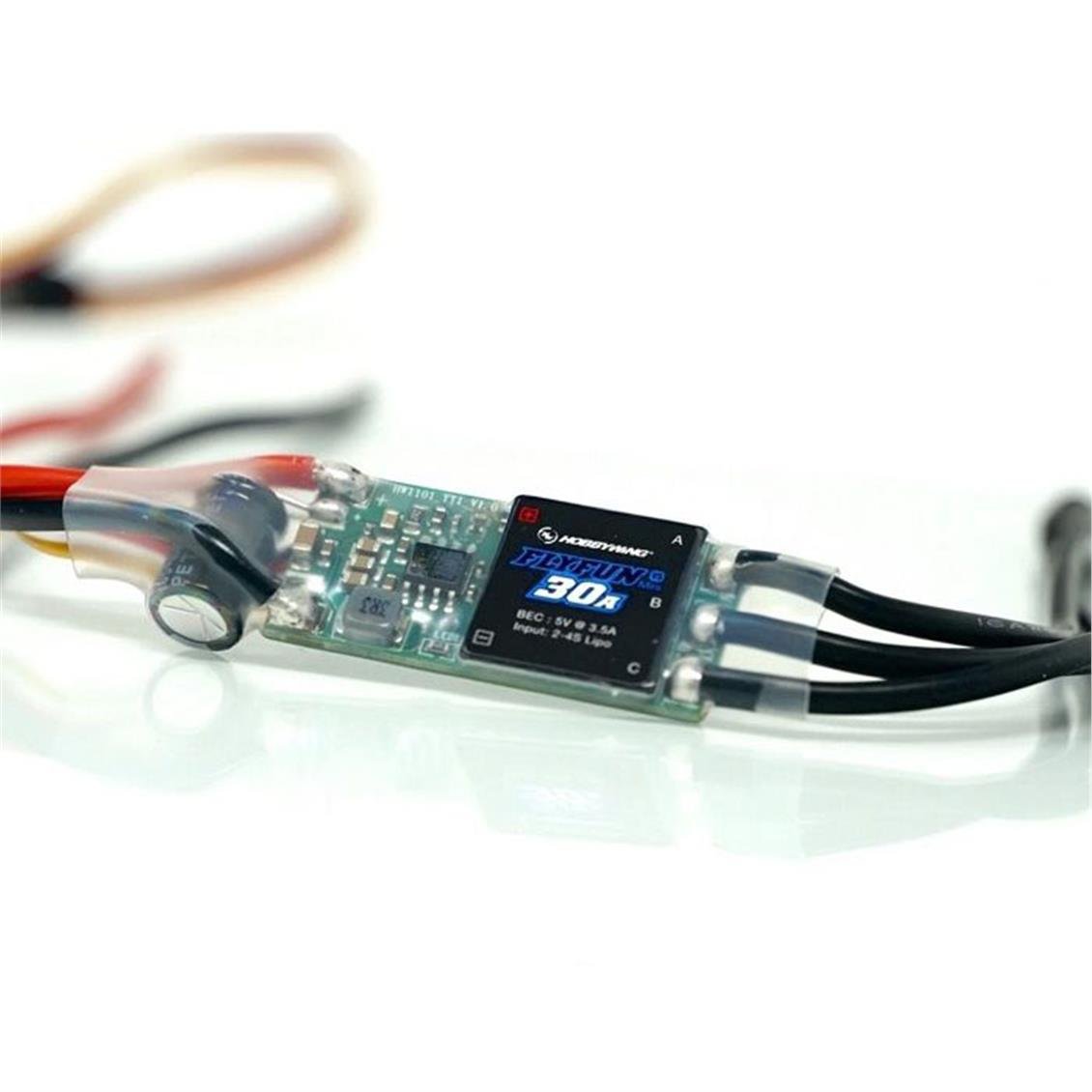

The ESC, which has a high -performance 32 -bit arm M4 microprocessor (working frequency up to 72 MHz), is compatible with various brushless engines.
The microprocessor with a separate DC regulator has better parasitic prevention performance and greatly reduces the likelihood of losing control.
DEO (driving efficiency optimization) technology greatly increases gas butterfly response and driving efficiency and reduces the temperature of ESC.
The built -in high -power beck with a 5.2V output voltage. The Bec module is separate from other circuits in the ESC, so normal becl output can be guaranteed (when a problem occurs such as the burning of the power board), allowing users to take the plane back before colliding.
Normal/soft/very soft starting modes are compatible with normal propeller aircraft and EDF jet aircraft (please make sure you select "Very Soft Start" mode when using EDF jet aircraft).
It allows a separate programming cable and users to program ESC anytime, anywhere to connect ESC to a LED program box. (For detailed information, see the user manual of the Hobbywing LED program box.)
Normal/proportional, can effectively shorten the landing distance of the aircraft.
Starting, ESC thermal, capacitor thermal, over -current, overload, abnormal inlet voltage and gas butterfly signal loss, such as loss of signal, effectively extend the service time.
