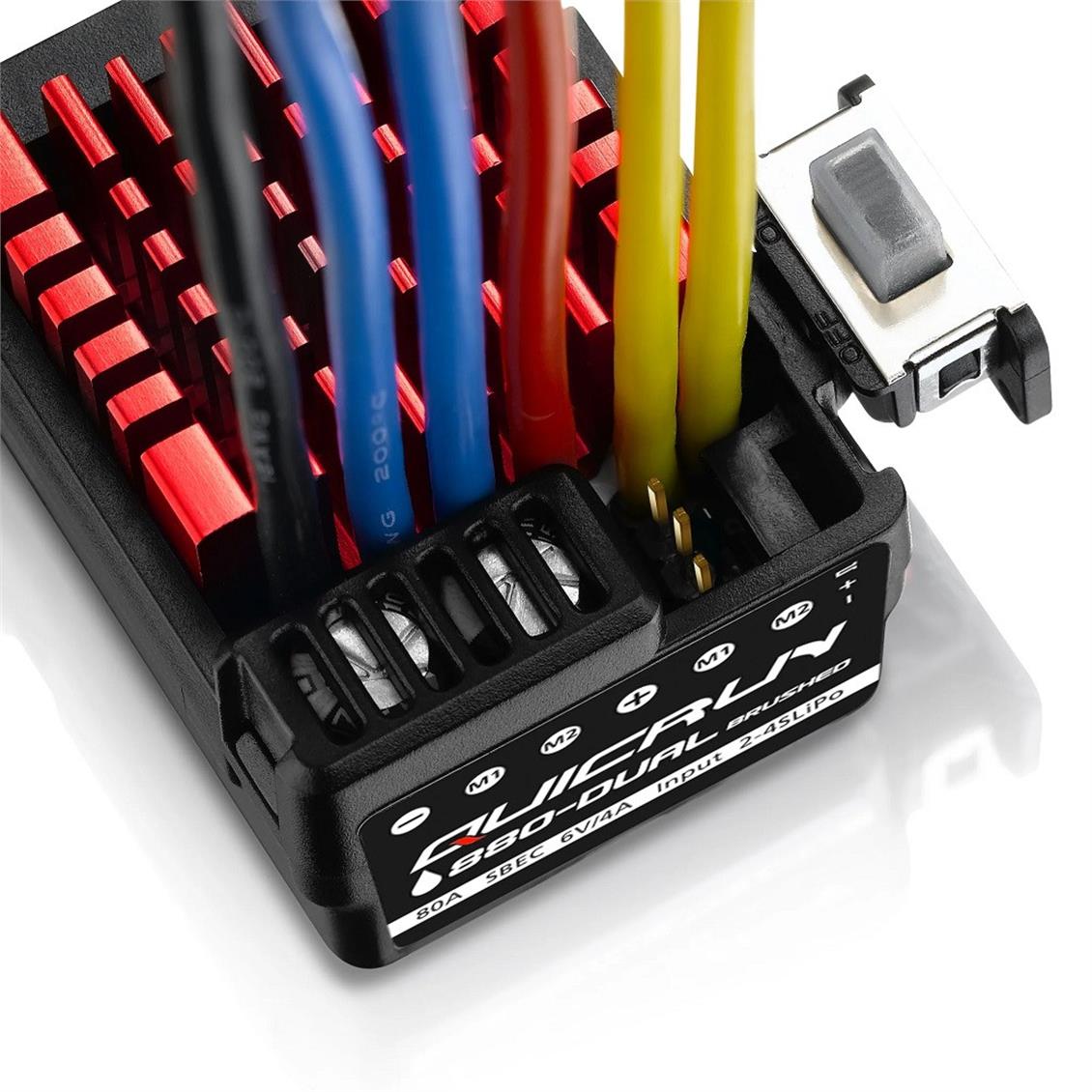

Hobbywing 30120301 QuicRun Series, WP880 Dual, 80 Amp, 2-4S LiPo, Brushed Car Motor with Electronic Speed ​​Control (HBW30120301)

Contents

• 1 Hobbywing 30120301 Quicrun Series, WP880 Dual, 80 amps, 2-4S lipo, Electronic speed control for brush car engine

Features

• Scale: 1/10 and 1/8
• Brushed
• Waterproof
• CONTINUE/TEEP CURRENT: 80A/400A
• Entry Voltage: 2-4S lipo/5-12 cell nimh
• Bec Output: 6V@4A (Switching mode)
• Entry cables: Red-16Awg-150mmx1 / Black-16Awg-150mmx1
• Output cables: Blue-16Awg-100mmx2 / Yellow-16Awg-100mmx2
• Login connectors: no
• Output connectors: 4.0 bullet connectors (female)
• LED Program Box: Supported
• Size: 45.9x34.7x26.5mm
• Weight: 75g
• Supported Motors: Brush Motor (540/550/775 Dimensional Engines)
• Vehicles: Various 1/10 and 1/8 vehicles
• KV degree/t number:

Speed ​​control device for dual brush engines
Two sets of output cable
Two sets of output cables to connect to two engines at the same time. It is very useful for vehicles working with two engines. Notes: Two sets of output cables are connected in parallel and can only be used to operate the engines as synchronously, and the driving directions should be the same when connecting to two engines.

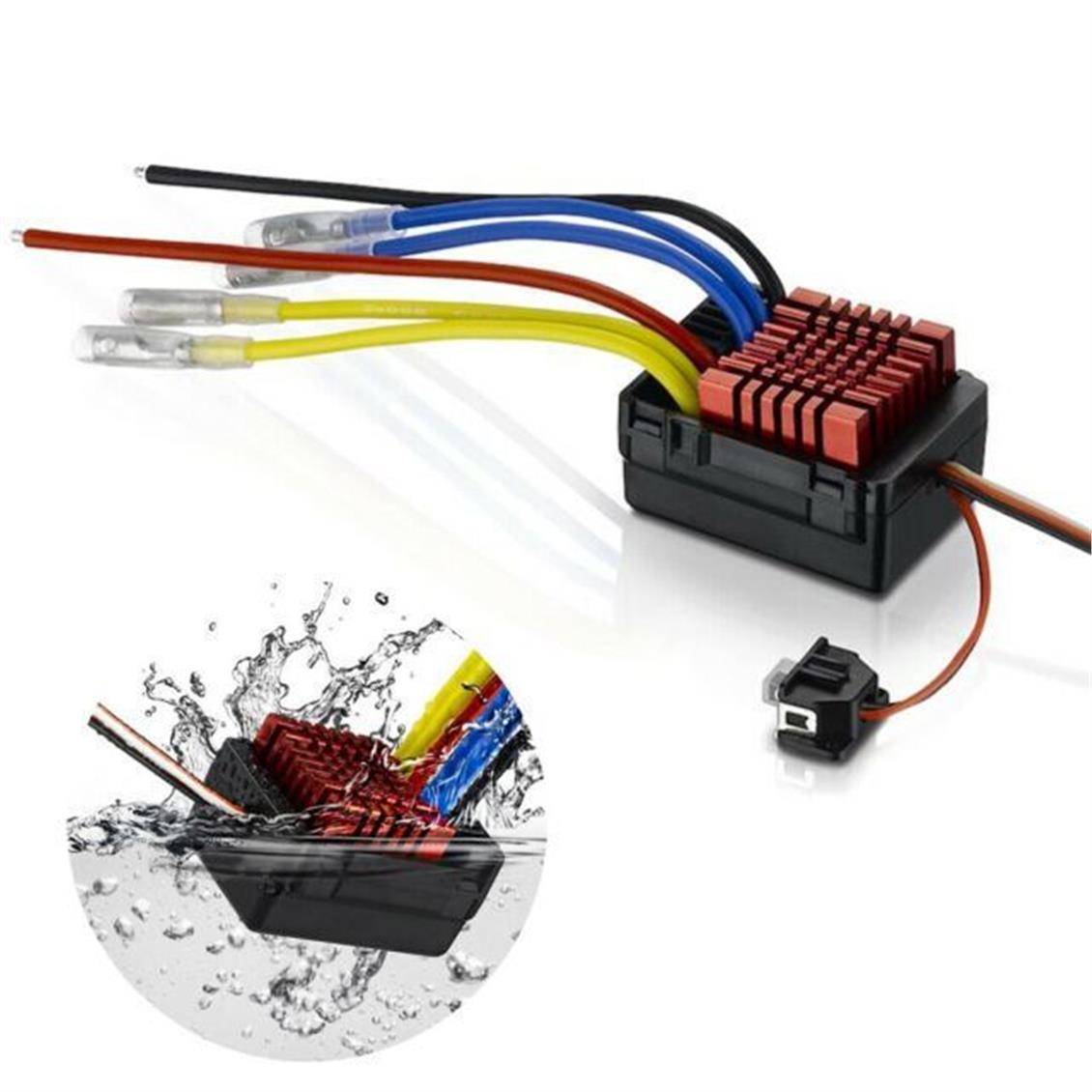

Suitable for every weather condition
Water and dust-proof design allows Quicrun wp-880 dual Brushed to be used in any weather condition without esc damage caused by water or rash.
Adjustable PWM Frequency and Advanced Deo/Free wheel technology
Adjustable PWM frequency combines with advanced deo/free wheel technology to guarantee users a great gas butterfly linearity and a feeling of driving.
Excellent braking functions
Hobbywing's innovative, fine -adjustable friction brake ratio and adjustable friction brake and brake force greatly improve the brag brake and ensure that users have excellent braking performance.
Multiple Programmable Items
Quicrun wp-880 Dual Brushed, which has 15 programmable parameters, can be applied to various vehicles and runways.

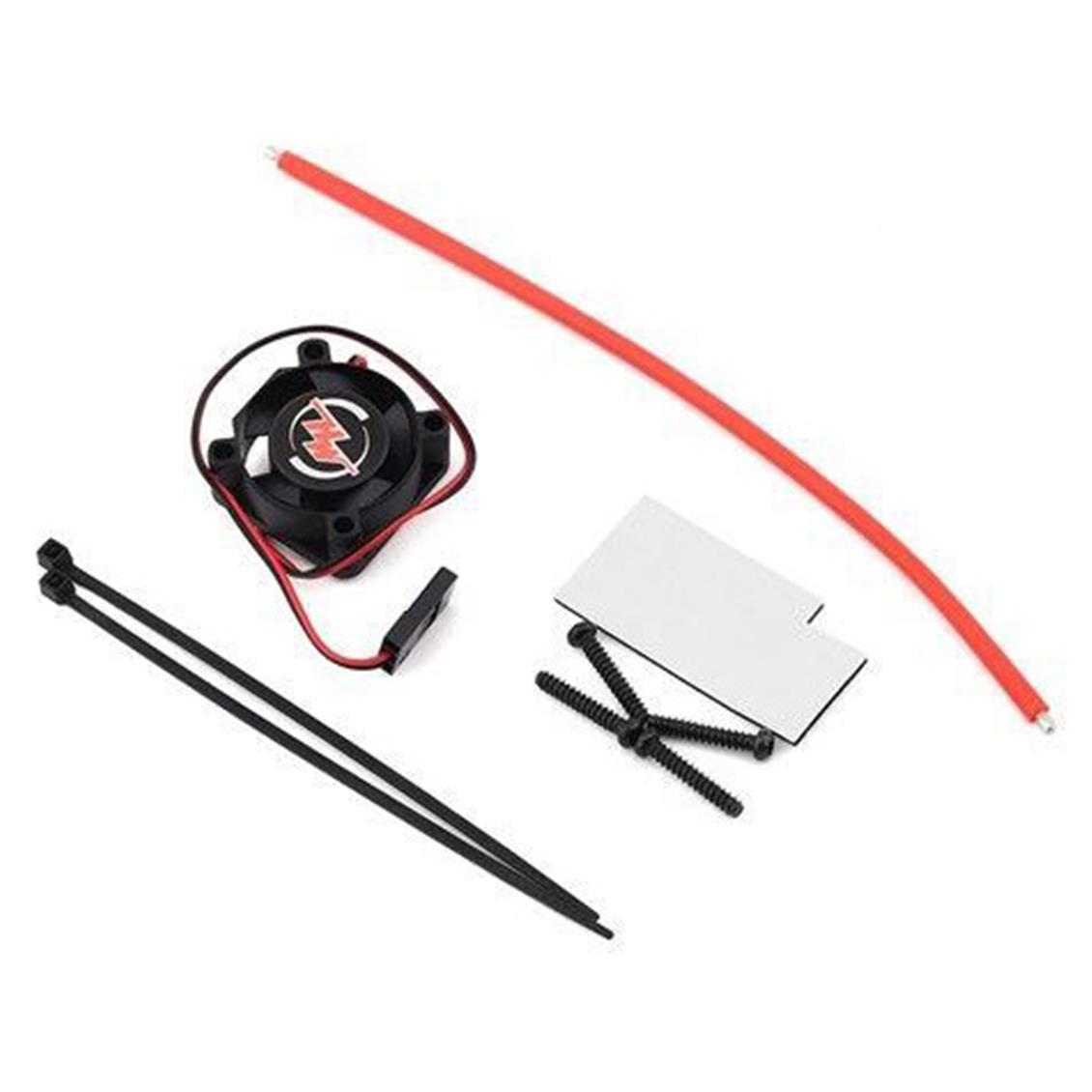

SEPARATE PROGRAMMING/FAN PORT
The separate PRG/fan port on the ESC can provide an external fan power to maximize cooling performance or connect ESC to a LED program box for ESC programming.
