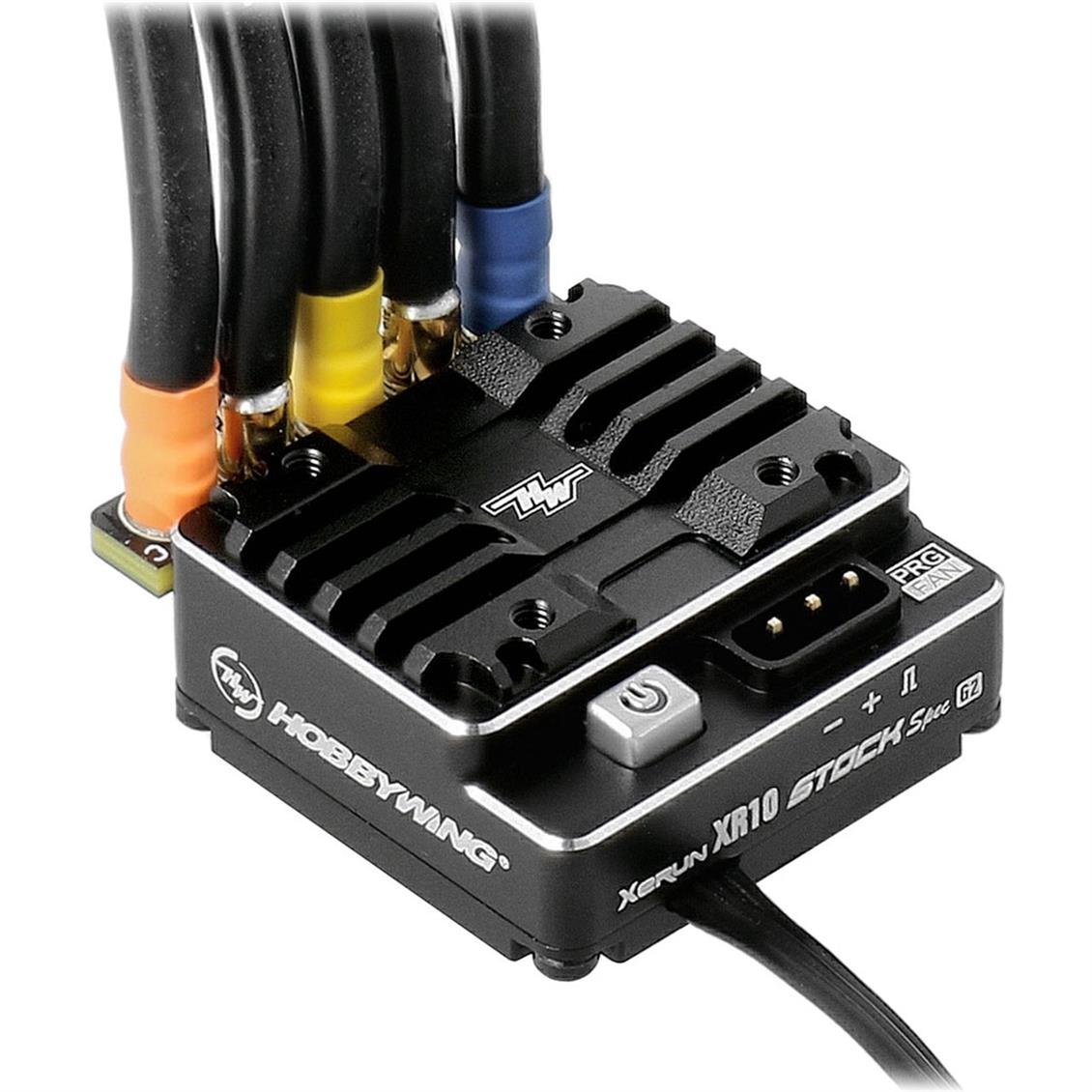

Hobbywing 30112402 XeRun Series, XR10 Stock Spec G2, 80 Amp, 2S Li-Po, Sensored, Brushless Motor Electronic Speed ​​Control (HBW30112402)

Contents

• 1 Hobbywing 30112402 XERUN series, XR10 SPOCK SPEC G2, 100 AMPER, 2S Li-Po, Sensor, Electronic Speed ​​Control for Wrinkle Engine

Features

• Continuous/Top Current: 100A/500A
• Motor Type: Sensor/Sensorless Brushless Motors
• Applications: Stock Class 1/10 Tour Car and Buggy Race, 1/10 Drift
• Engine limit: ≥10.5T (2S lipo)
• Lipo/Nimh Cells: 2s Lipo (only)
• Bec Output: 6V/7.4V adjustable, continuous 5A current (switching mode)
• Dimensions: 34.8x30x13.8mm
• Weight: 63g
• Programming Port: PRG/FAN PORT

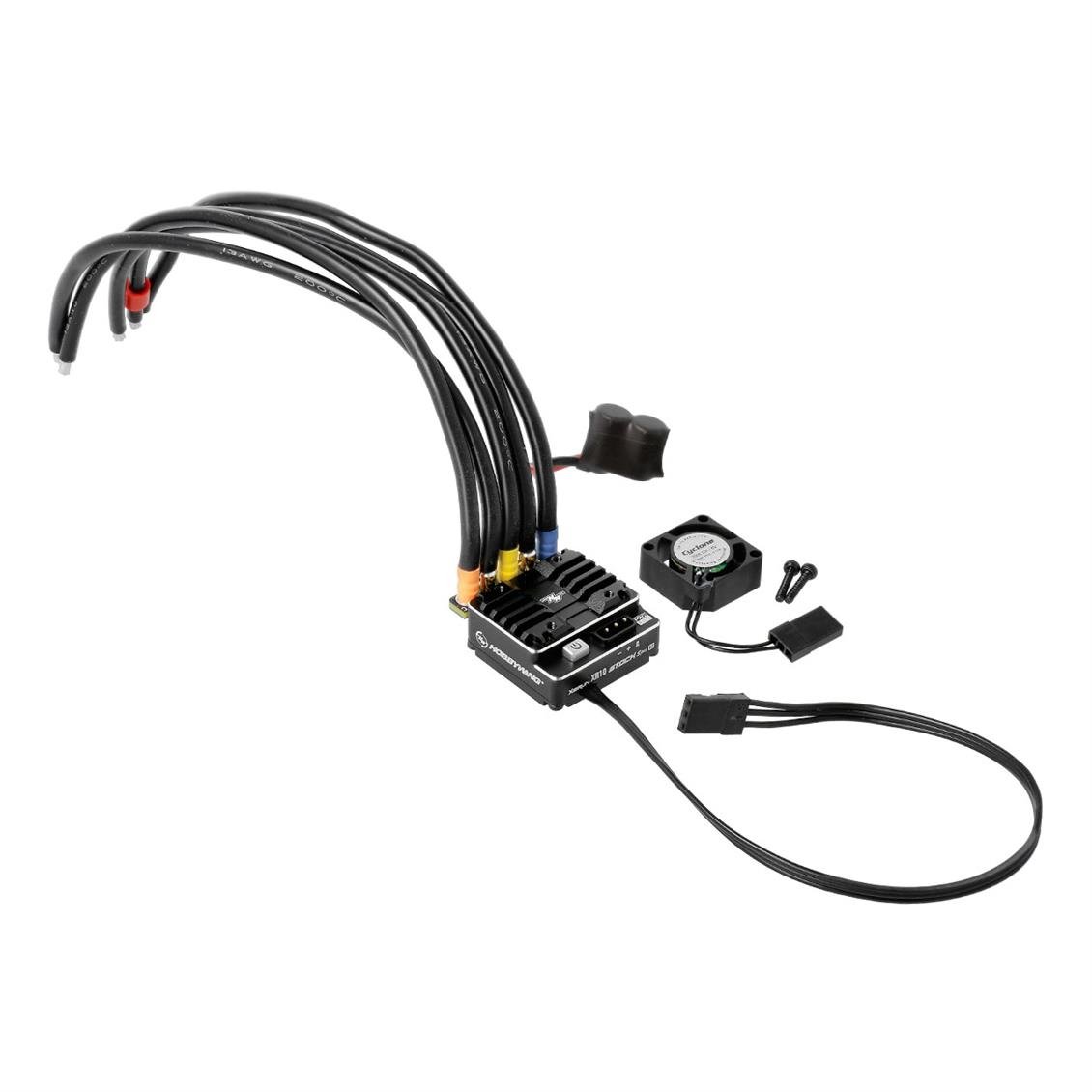

3 -selected usage profile can be applied to 1/10 RC car race. The separate PRG/fan port can run an external fan to maximize cooling performance, or connect a LCD program box or OTA programmer to ESC. The variable frequency arrangement of PWM and brake frequencies allows users to precisely regulate driving and braking forces (motors). Multiple Protects: Low -voltage cutting protection, esc and motor thermal protection and fault safety (gas butterfly signal loss protection), reverse polarity protection (external standard cover package will still be damaged when the battery is turned upside down). Data recording to save the maximum ESC/engine temperature, engine RPM and others in real time. Hobbywing increases device software through multifunction LCD G2/Pro program box or OTA programmer (sold separately).
