Hobbywing 30103205 EzRun Series, MAX8 G2S, 160 Amp, 3-6S Li-Po, Sensored, Brushless Motor (HBW30103205)

Contents

• 1 Hobbywing 30103205 Ezrun Series, Max8 G2S, 160 amps, 3-6s Li-Po, Sensor, Electronic Speed ​​Control for Wrinkle Engine

Features

• CONTINUE/TEEP CURRENT: 160a/1050a
• Entry voltage: 3-6s lipo
• Bec Output: 6V / 7.4V / 8.4V Adjustable, Continuous current 6A (switching mode)
• Entry cables: Black-10Awg-150mm*1 Red-10Awg-150mmx1
• Output cables: no
• Login links: xt90
• Output connectors: 6.5 bullet connectors (female)
• Size: 30x30x10mm
• Voltage range: 6V/7.4V/8.4V
• Strengthening: Bec
• Excessive Value: Supported
• Real Time Data: Supported
• Historical Data (Graphics): Supported
• Product software upgrade: Supported
• Size: 60*48*40.5mm
• Weight: 192g (with cables)

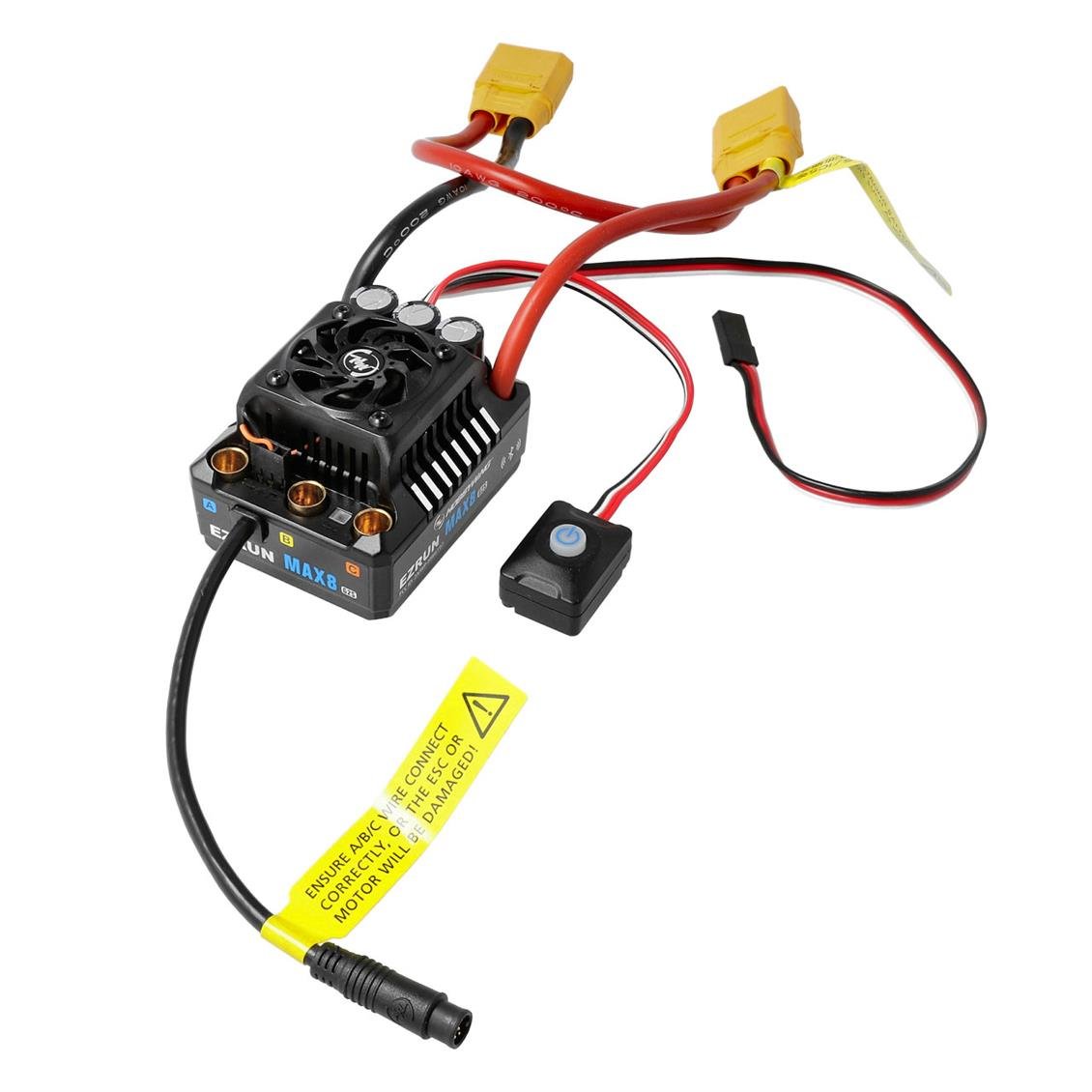

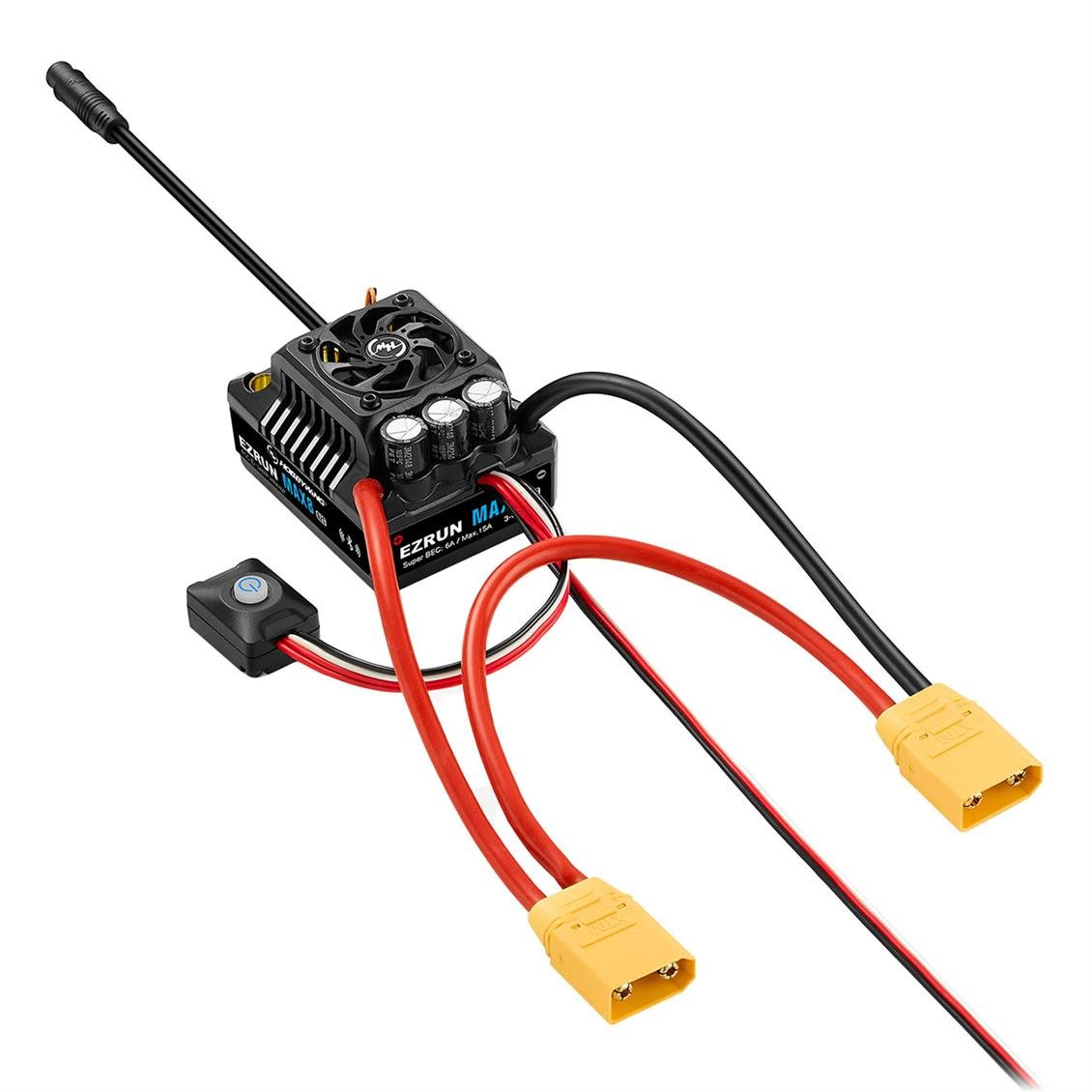

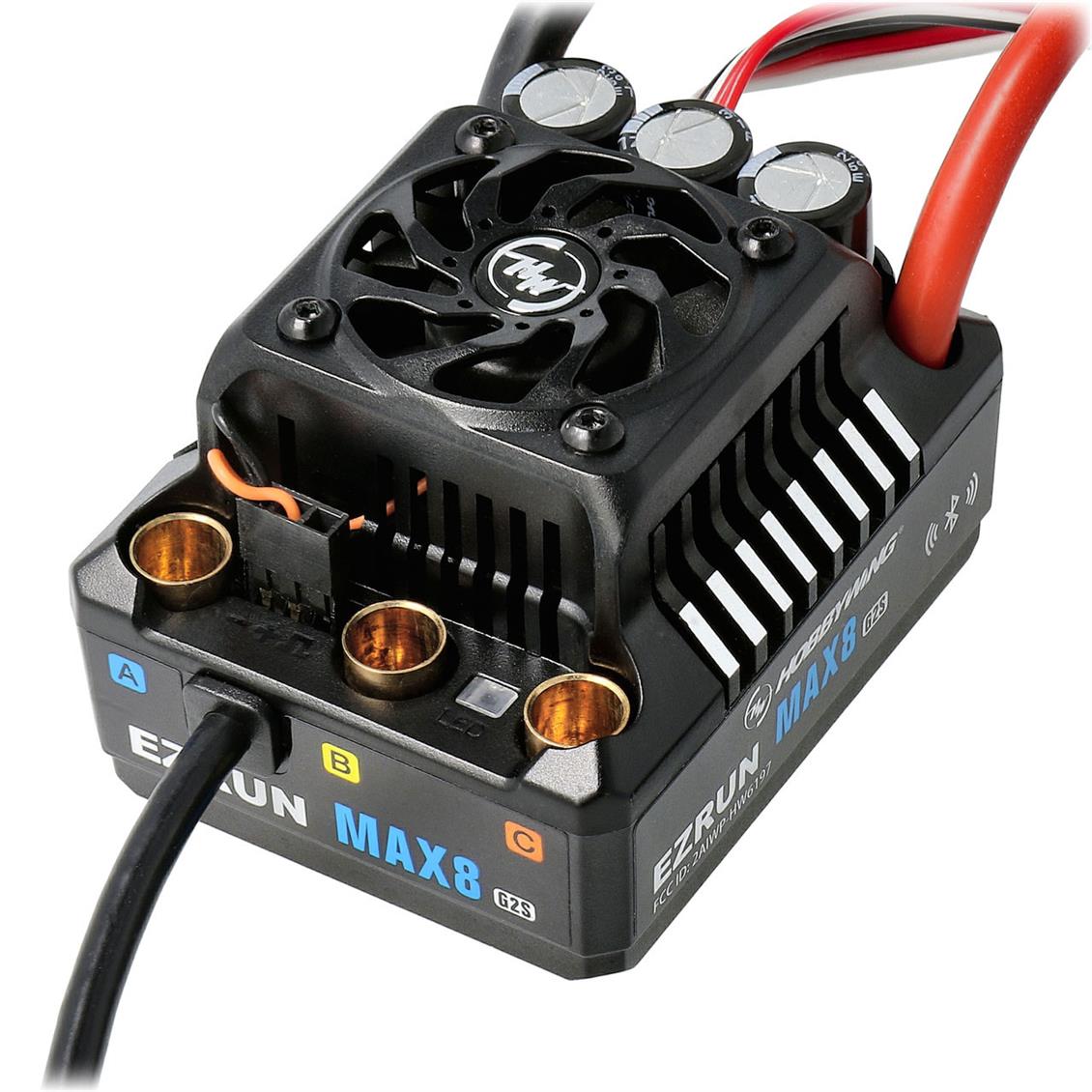

This is the Hobbywing Ezrun Max8 G2s Waterproof ESC with XT90 plug for 1/8 RC. ESC offers power, but only smooth and linear gas response. This balance of power and control allows drivers to apply their vehicles at the limit. Based on the Max8 G2 ESC, the brand new G2S ESC is equipped with optimized hardware design applications such as intelligent free wheel technology. The determination and reliability of ESC has been further improved.
ESC has an internal Bluetooth module. Allows you to connect directly to the mobile app without installing any device. Parameter settings, data reading, hardware software upgrades and other operations are simple and useful. ESC has an internal data recording module. Keep up to 10 minutes of your last work. You can view the data saved to ESC using the HW Link V2 app. In addition, the module allows you to view real -time data from ESC for viewing the top -up test and data outputs.
ESC fan does not work when the esc temperature is low. When the ESC temperature reaches the preset value, the fan automatically opens. The intelligent starting and stopping function of the fan not only reduces the noise, but also saves power, but also allows ESC to work in a good temperature range. A frameless fan with patented technology is used. The large air flow on the side side of the fan effectively removes the heat from the integrated body radiator to ensure that ESC is always at the optimum operating temperature. Capacitor protection prevents the power caps from being damaged without overheating caused by overloading or excessive conditions. This protects ESC from damage.
The proven Hobbywing waterproof sensor cable bundle offers an element -proof solution for sensor -based systems. Normal/standard sensor motors can also be used using a Hobbywing adapter (optional).

Feature:
Excessive exit, easy to control
Optimized hardware, stability and reliability increases
Internal Bluetooth connects directly to Mobile App
Internal data recording function, easy to obtain the power working situation
Smart Fan Starting and Stopping Function
Efficient cooling system
High protection level
1/8 Power System Turbo Timing Technology
Capacitor overheating protection
