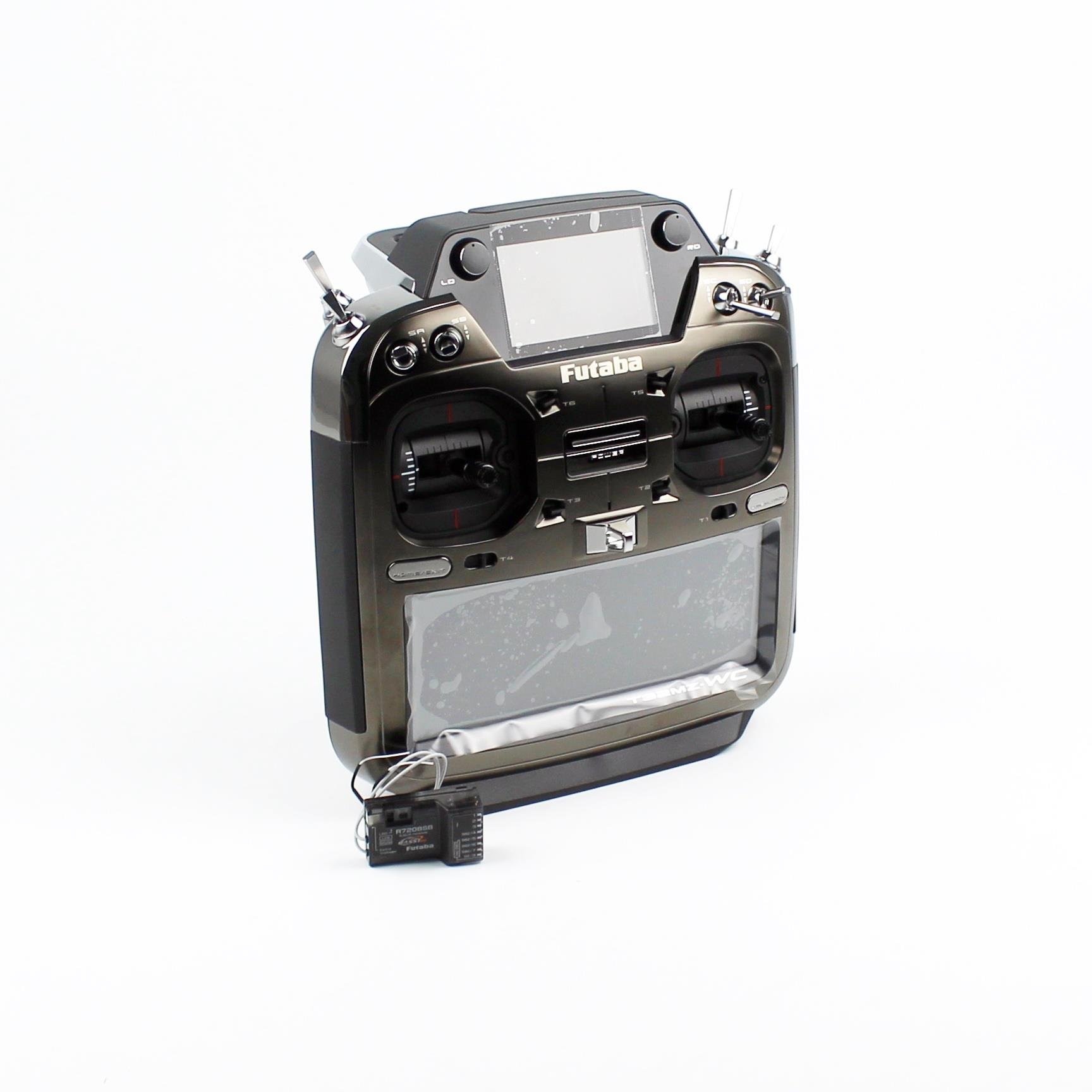

Futaba 05003220 32MZ Aircraft Controller, R7214SB Receiver, 2.4Ghz, Li-Po Battery, FASSTest/FASST/T-FHSS/S-FHSS, (FTK5003220)

Content

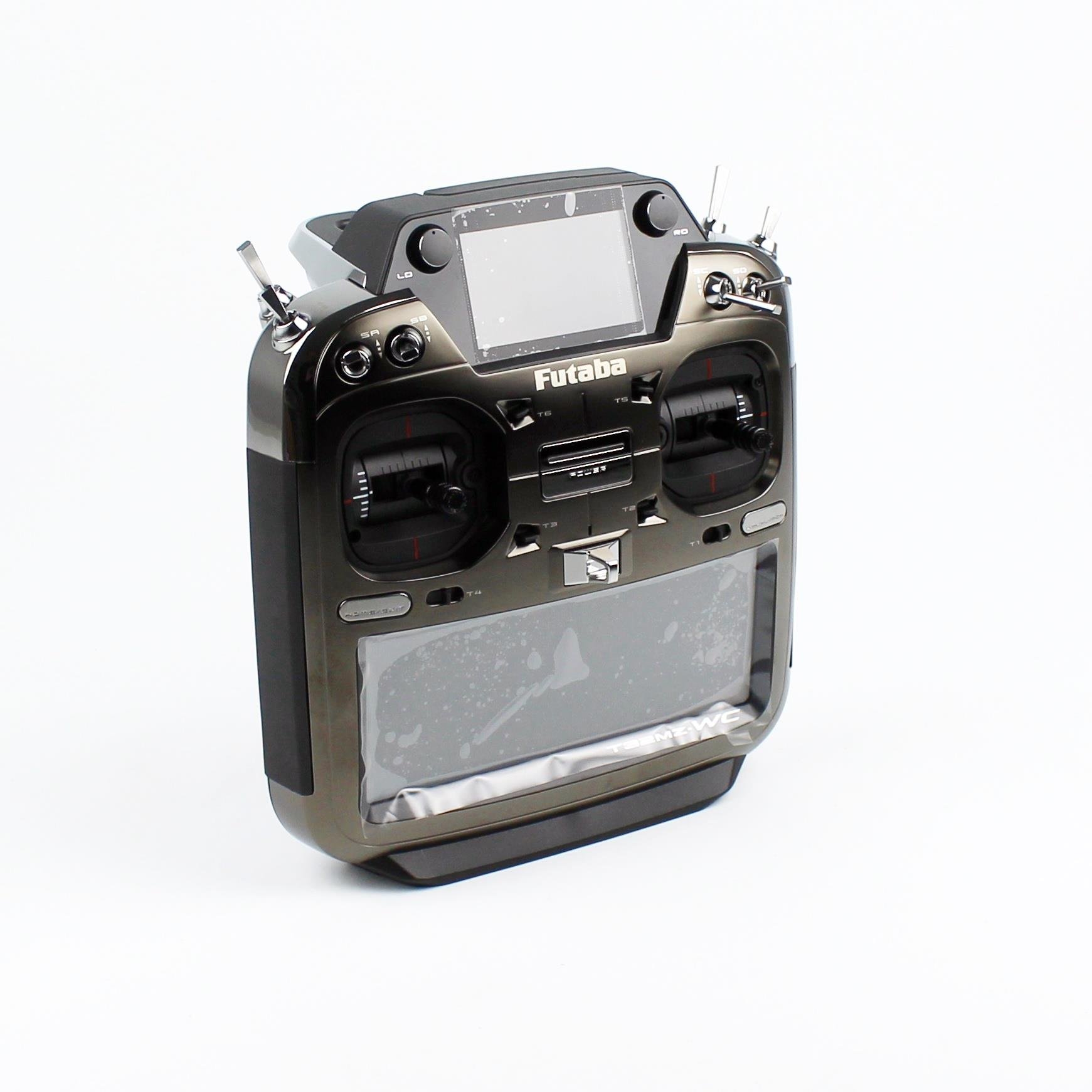

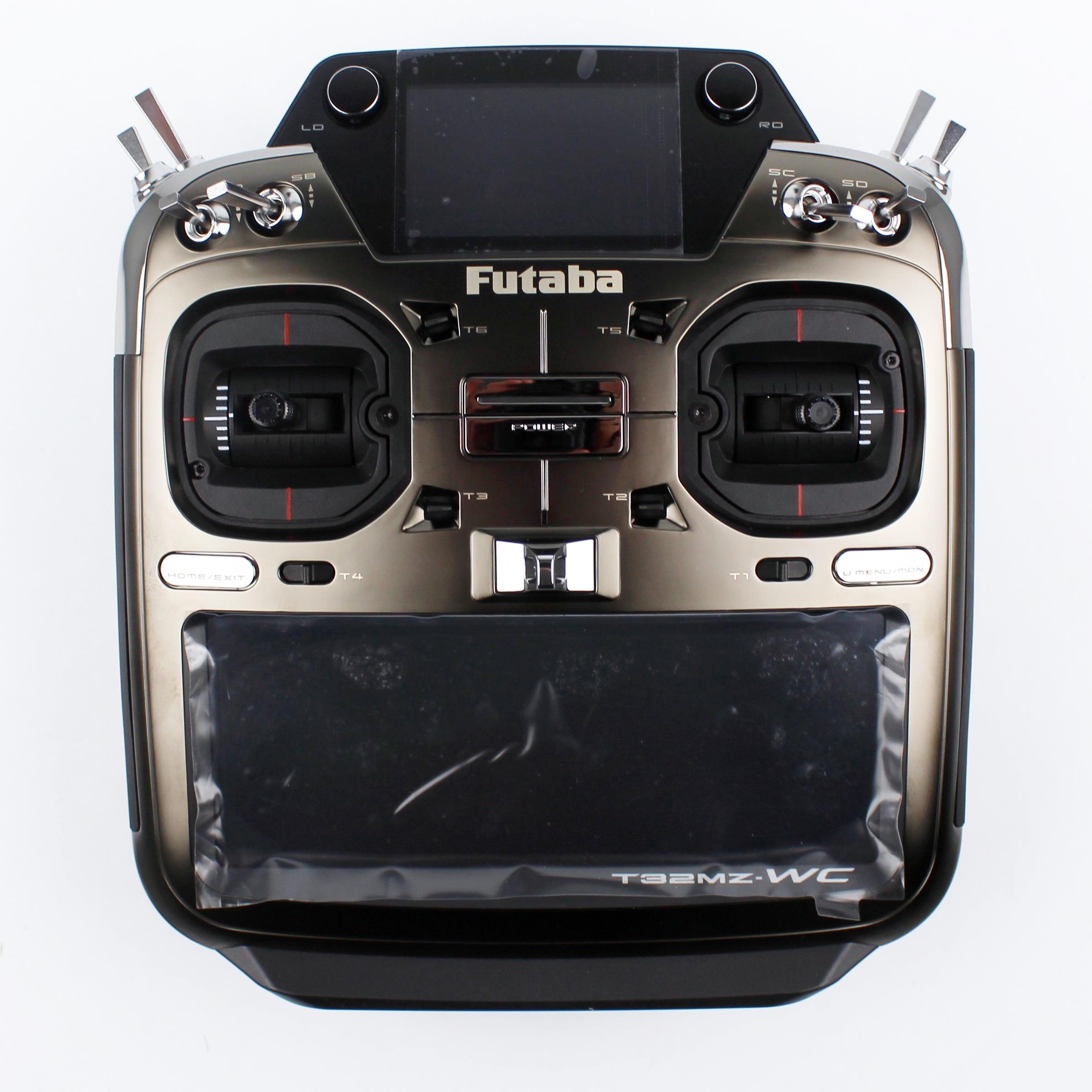

• T32MZ WC Transmitter
• R7214SB Receiver
• LT1F6600B Lithium Polymer Battery and AC Adapter
• UBA0323 Switch Wiring Harness
• Special apparatus for adjustment
• Neck Strap
• User Guide

Features

• TRANSMITTER FREQUENCY: 2.4 GHz band
• OPERATING SYSTEM: 2-Bar, 26 Channels, 2.4 GHz FASSTest/FASST/T-FHSS/S-FHSS System
• POWER SUPPLY: 3.8 V L1F6600B Lithium-polymer battery
• RF POWER OUTPUT: 100mW EIRP
• WEIGHT (including battery): 1126 g

FASSTEST SYSTEM:
Futaba 32MZ transmitter adopts two-way communication system "FASSTest". Data from the receiver can be checked on your transmitter. FASSTest is a 2.4 GHz dedicated system with a maximum of 26 channels (24 linear channels + 2 switched channels).

CHANNEL EXPANSION (MULTIPLE TRACK FUNCTION):
The multi-track function can be used using the multi-track decoder MPDX-1, sold separately. The multi-track function is a function that divides one channel into eight channels and increases the number of channels. Up to 2 MPDX-1s can be used and expansion to up to 32 channels is possible as follows:

Linear channel – 14 channels (2 channels used by multi feature function)
On/Off channel – 2 channels
Multiple probe channels – 16 channels
Multi-probe channels have the following differences from regular linear channels:

The resolution of the multipropagation channel is lower than that of the linear channel.
Operating multiple multi-routing channels simultaneously may reduce the operating response of the multi-routing channel.
Multiple probe channels cannot use the mixing function.

S.BUS2 SYSTEM:
Using the S.Bus2 system, multiple servos, gyroscopes and telemetry sensors can be easily mounted with minimal wiring.

WINDOWS EMBEDDED COMPACT 7:
T32MZ WC uses the world-famous Microsoft Windows Embedded Compact 7, offering exceptional reliability and valuable resources.

COLOR LCD MAIN SCREEN:
The T32MZ WC features an HVGA (640 x 240 pixels) full-colour, backlit LCD touchscreen. The screen is manufactured with a semi-reflective structure that ensures visibility both indoors and outdoors.

COLOR LCD DISPLAY:
The T32MZ WC has a color LCD additional display. It will be possible to view telemetry information separately from the main screen. The additional display uses a reflective LCD that provides good visibility even outdoors.

PLAYING MUSIC:
Futaba 32MZ WC transmitter can play WMA (Windows Media Audio) files on microSD card. You can listen to music with stereo headphones through the built-in speaker or the headphone jack. You can assign a key to start/stop the music.

VOICE RECORDING:
You can record your own voice using the built-in microphone and then replay commands assigned to specific buttons. Recording time is maximum 3 seconds and 24 audio files can be stored.

SECURE DATA (SD CARD):
Model data, music files, audio files and image files can be saved to the optional microSD card. The microSD card is also used when updating the software/features of the T32MZ WC.

HIGH CAPACITY LITHIUM POLYMER BATTERY (6600 mAh):
High capacity Lithium Polymer battery extends your flight time.

ARRANGEMENT:
The touch panel and two enter keys make editing your model the easiest way for you.

FUNCTIONS:
Built-in dual processors run many 32MZ functions and optimize response time. Most mixing functions are driven by curves, giving you very precise adjustments.

ARM:
Each axis is supported by double ball bearings. Additionally, non-contact potentiometers of the magnetic sensing type have been newly installed. This provides more precise and accurate operation. Additionally, the throttle has external screw adjustment, you can choose from a ratchet or spring-loaded self-neutral position.

REPLACEABLE SWITCHES:
You can replace the 4 on/off switches located on the right and left shoulders with optional switches (two-position, three-position and momentary, etc.).

VIBRATION FUNCTION:
Low voltage and other alarms are generated by the vibration motor. The types of alarms or vibrations to use can be selected by the owner.
