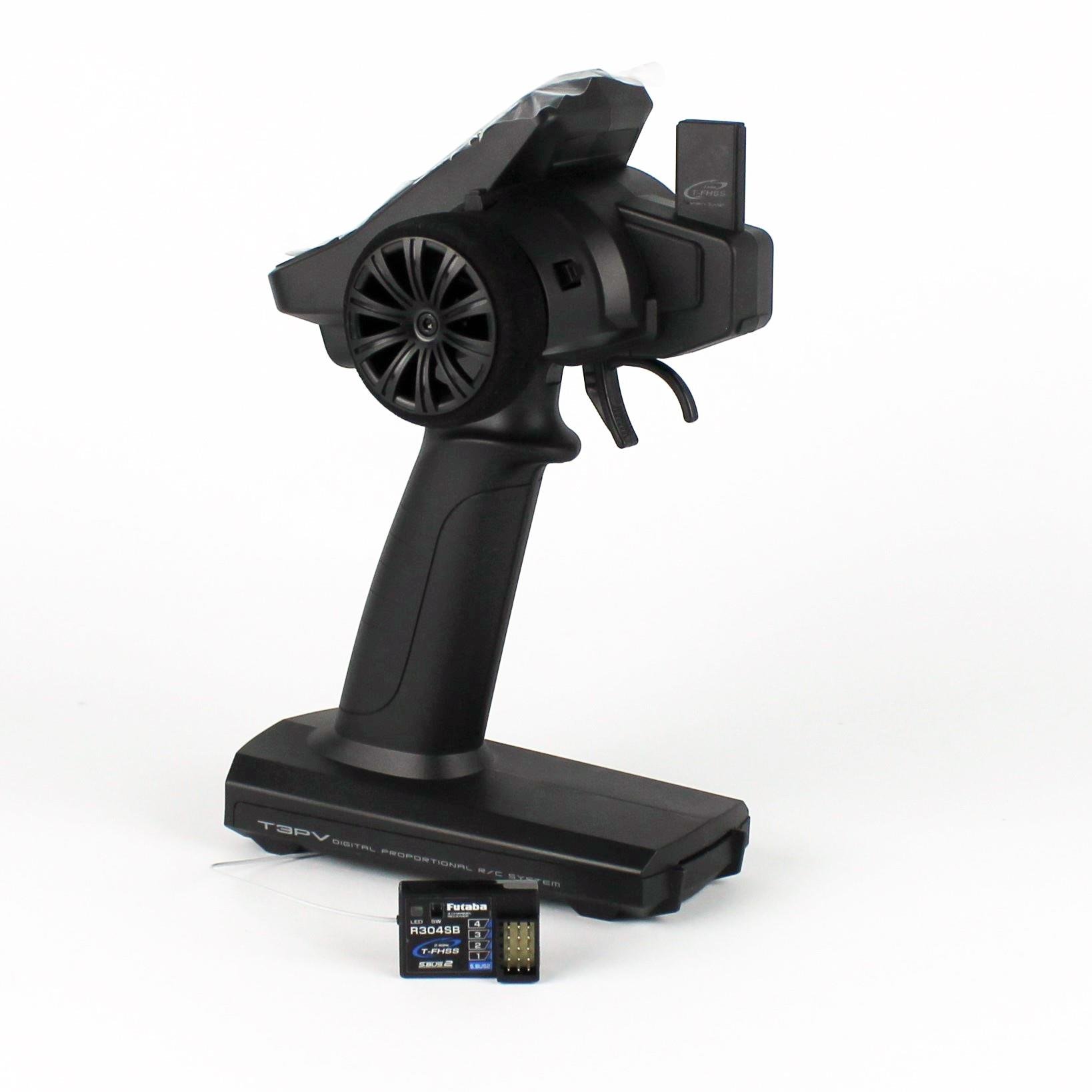

Futaba 05003109 3PV Car Remote, 4 Channel, R304SB Receiver, 2.4Ghz, T-FHSS,S-FHSS (FTK5003109)

Futaba 05003109 3pv control 4 channel 2,4GHz, r304SB, f24p1dx t-fhss, s-FHSS, FHSS

Brand:Futaba
Stock Code:FTK5003109
Type:Control

Content

• Control
• R304SBSB Receiver
• User manual

Futaba 16 we features

• System: FHSS, S-FHSS and T-FHSS 2.4GHz (T-FHSS/Telemetry can only be used with optional R304SB (-e) receiver)
• 3 + 1 Channel (4: TH Channel Only 4WS Mixing (scanners) or braking mixing and using a 4 -channel buyer)
• Channel 3 SW1 (two end points) or D/R normally (graded function) can be used in DT3
• 10 model memory
• 4 -character model name
• Alt Trim (CH1-4)
• Channel-4 trim (only 4WS or brake mixing appears when activated)
• Steering Double Rates (D/R)
• Steering tip Point Adjustment (EPA-CH1)
• Gas Butterfly End Point Adjustment (EPA-CH2)
• Channel-3 End Point Adjustment (EPA-CH3)
• Channel-4 End Point Setting (EPA-CH4)-This is displayed only when 4WS or brake mixing is activated
• 4 wheel steering/brake mixing (SMX) (cabin mixers cannot be used at the same time)
• Sero Reverse (CH1-4)
• Steering topl (EXP-CH1)
• GAS MASEL (EXP-CH2)
• GAS FAILED-SWEED (F/S)
• ABS brakes (3 cycle speeds are available)
• Model data copy
• Automatic closure after 10 minutes
• Low battery alarm
• 4X AA Alkaline Battery-set lba @ 4.2v
• 5 cells (6V) nimh - set lba @ 5.0v
• 2S (6.6V) Life Set lba @ 5.8V

You can find the ingredients you need to finish this product at the bottom of the page

Keep 3PV in your hand and feel how light it is. Access the programming menu on the easy -to -read screen and see how complex it is. Experience 3PVC's super -fast response rate and notice that you are the command of the system that can make a real difference on the race day. You will also receive FHSS, S-FHSS and T-FHSS protocols that make R/C one of the most versatile surface system. 3PV can be used with a high -voltage R203GF receiver, an ideal match for brushless escs and digital servos.

About Futaba

Futaba Corporation was founded in 1948 as a manufacturer and seller of receiving vacuum tubes in Japan. Futaba, which uses vacuum tube technology, has started to produce vacuum fluorescent screens. In 1962, Futaba began to produce a press mold set components as well as radio control equipment and founded two of the primary sections of the company. This was followed by the development of mold basic components and the addition of VFD modules to complete the futaba's main product range. Our company's US -based branch Futaba Corporation of America (FCA) supports the same technologies and is the leading provider of electronic production services. (EMS) includes PCB devices to complete box construction, test and engineering design.
