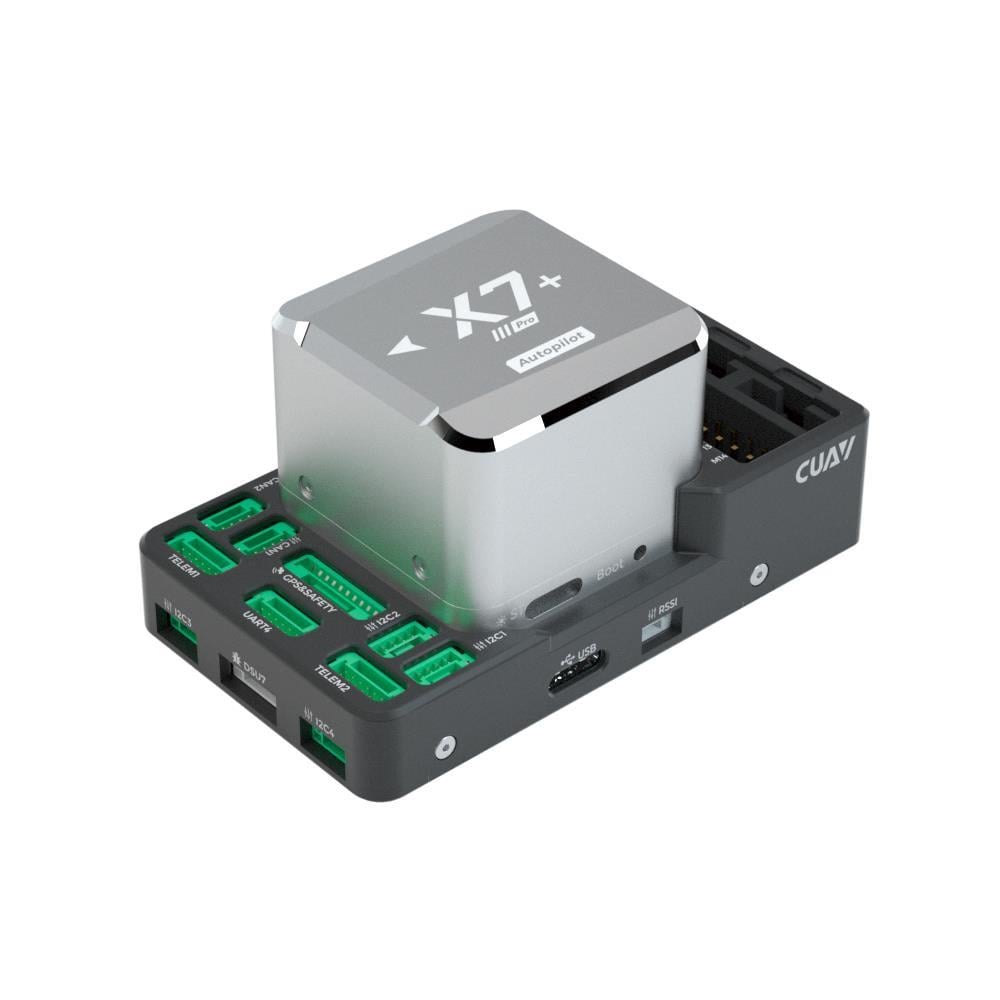

X7/x7 pro/x7+/x7+ pro®is an adanced Autopilot Family Design in-house by CUAV®. It USES A Higher-Performance Stm32H7 Processor and Integrates Industrial-Grade Sensors. Comhed with previous autopilots, it has better performance and hyigher reliability.
The First Generation Autopilots (X7/X7 Pro) Have Been Updated with New Sensors, Providing The Same High Performance, But With More Reliable Source of Supply, and Some Improvements to Allow Bi-DShot and Servo Rail Voltage Monitoring.
The modular design allows users to customize the bastoard and is full compatible with the Cuav V5+ Carrier Board. The X7+/X7+ Pro is ideal for the Academic Research and Commercial Systems integration.
14 PWM Servo Outputs （12 Support Dshot） Analog/ PWM RSSI input 2 GPS Ports (GPS and Uart4 Ports) 4 I2C BUSES (Two External I2C Ports) 2 Can Bus Ports 2 Power POWER POINS (Power A Analog PMU Interface, Power C is a DRONECAN PMU Interface) 2 ADC inputs 1 USB-C port
14 PWM Servo Outputs （12 Support Dshot）
Analog/ PWM RSSI input
2 GPS Ports (GPS and Uart4 Ports)
4 I2C BUSES (Two External I2C Ports)
2 Can Bus Ports
2 Power POWER POINS (Power A Analog PMU Interface, Power C is a DRONECAN PMU Interface)
2 ADC inputs
1 USB-C port
Other
Weight: 101g （x7+ pro ： 105g）
Operating Temperature: -20 ~ 80 ° C （MeaSouled Value）
